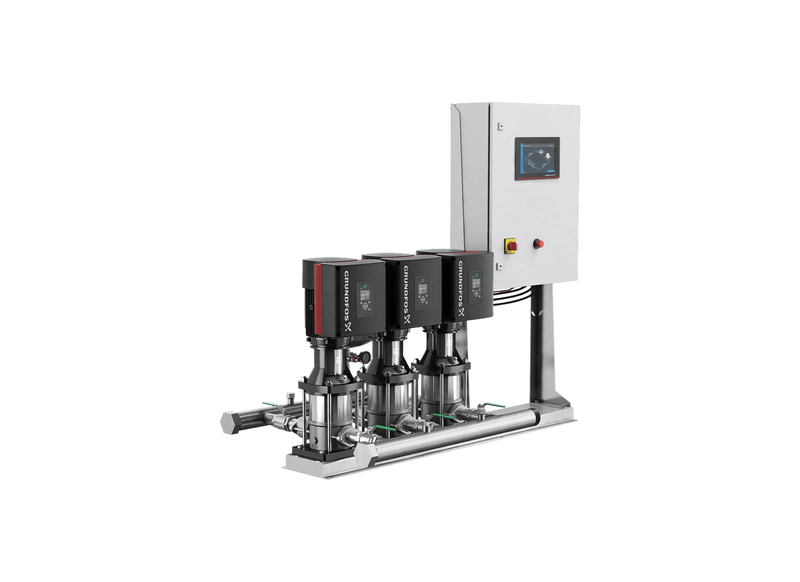

Grundfos Hydro MPC-E 3 x CRNE 20-1 Three Phase 3 x 2.2kW 304ss Booster System w/8L Tank and CU 352 Controller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Gymnasiums, aquatic centres and student housing running wall-to-wall showers get a constant-pressure answer in this Grundfos Hydro MPC-E 3 CRNE 20-1 set. Part number 93637881 provides the complete tested package in a single order line.
This set provides up to 1740 L/min of flow capacity. Variable-speed operation can develop up to 20 metres of head where required. Control sits with the GENIECON multi-pump controller in its touch-equipped panel, adjusting each pump individually and rotating duty by load, run hours and faults.
The three-pump package arrives as one base-mounted assembly with stainless steel manifolds, two 100 mm manifold connections, valves, sensors and a pressure gauge, plus an 8L diaphragm tank. Electrical supply is 3 x 400 V at 50 Hz with a rated current of 12.9 A. The motors have IP54 protection and the system is rated to 16 bar maximum pressure. Liquid-temperature suitability is 5°C to 60°C.
Its home ground covers irrigation schemes, high-rise developments and commercial buildings. The variable-speed system suits clean-water boosting duties with changing demand.
Features
- Each pump is driven by permanent magnet motors with frequency-controlled speed matching demand.
- Three Grundfos CRNE 20-1 pumps share the boosting work in parallel.
- The package is wet-tested and pre-configured, requiring only pipework and power on site.
- An integrated 8L diaphragm tank carries small draw-offs and limits pump cycling.
- Slow-speed duty and staged switching keep consumption down through low-demand hours.
- GENIECON PANEL control with touch display gives operating staff full staging visibility.
- Maximum operating pressure of 16 bar with motors sealed to IP54.
- Stainless steel manifolds provide two 100 mm manifold connections ready for pipework.
- Both constant-pressure and proportional-pressure modes are available, so plant rooms can tune response to pipework.
- Pumps are cut in and out according to demand, every running unit turning at the same speed to hold the pressure set point.
- Each main pump is rated 2.2 kW (P2), so per-pump draw scales down as speed follows demand.
- The GENIECON UNIT applies the pumps' exact hydraulic and electrical data when making control decisions.
- Inlet pressure monitoring provides dry-running protection if the suction supply is insufficient.
What's Included
- 3 x Grundfos CRNE 20-1 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- GENIECON PANEL with touch display
- GENIECON multi-pump control unit
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- Inlet pressure monitoring (dry-run protection)
- 8L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 1740 L/Min |
| Max Head | 20 m |
| Power | 3 x 2.2 kW / 415v |
| Rated Current | 12.9 Amps |
| Suitable For | Commercial Water Supply, Corrosive Transfer Duty |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What plumbing connection sizing and non return check valves are provided on this booster assembly?
Header plumbing on the Grundfos Hydro MPC-E 3 CRNE 20-1 V1 GA-A-A-AG provides DN100 stainless steel suction and discharge connections accompanied by isolating valves and discharge check valves.
What factory warranty period backs this variable speed booster system?
Protection on the Hydro MPC-E 3 CRNE 20-1 is provided by a comprehensive Grundfos two-year manufacturer warranty with extensive Australian technical service and spare parts support.
Under peak consumption conditions, what water volume does this packaged booster set deliver?
Under maximum network draw, the Hydro-MPC-E-3-CRNE-20-1 supplies a peak fluid flow rate of up to 1740 L/min across its variable speed centrifugal stages.
How are the parallel centrifugal pumps powered and speed regulated across variable flow demands?
Propulsion across the Hydro MPC E 3 CRNE 20 1 is supplied by three variable frequency drive MGE electric motors rated at 2.2 kW each, operating on a 3 x 400 V electrical supply with integrated frequency converters for precise pressure control.
How much total dynamic elevation head does this parallel centrifugal booster assembly deliver?
For vertical pressure boosting, the 3 CRNE 20-1 (Hydro MPC-E) produces up to 20 m total elevation head with a 16 bar maximum working pressure envelope.
