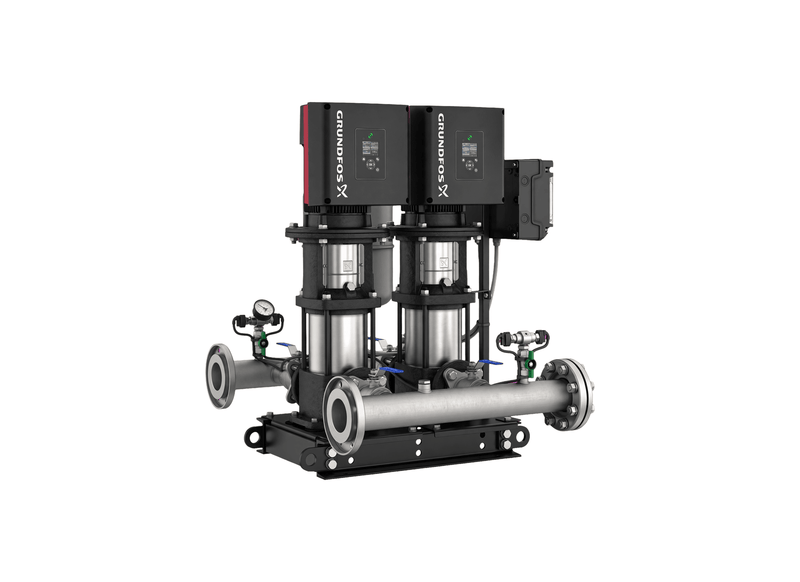

Grundfos Hydro Multi-E 2 x CRE 15-1 Three Phase 2 x 1.5kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
For school blocks and council facilities fed by long, pressure-hungry reticulation, a factory-assembled Hydro Multi-E 2 CRE 15-1 package provides a well-matched solution, with two CRE 15-1 pumps staged against the demand curve. One factory-tested package replaces a shelf of loose components; order part number 99614443 to put it on site.
Flow capacity reaches 935 L/min. Up to 19 metres of head is available to maintain pressure as demand changes. There is no separate central controller to purchase: Multi-Master control resides within the pumps, either unit can assume the controlling role, and a fault is handed over cleanly without interrupting supply.
Factory assembled on a common base, the set combines stainless steel pipework, two 80 mm manifold connections, isolation and non-return valves, pressure sensors and a gauge, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with a rated current of 6.2 A. Motors are protected to IP54, while maximum system pressure is 10 bar. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 10 bar.
Applications include hotel plant rooms, high-rise apartments and mixed-use commercial buildings. The control flexibility suits clean-water boosting in new installations and upgrades.
Features
- Slow-speed duty and staged switching keep consumption down through low-demand hours.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a phone.
- Stainless steel manifolds provide two 80 mm manifold connections ready for pipework.
- Cascade logic brings pumps on-line and off-line against changing demand without manual intervention.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- The system protects its pumps against dry running if the incoming supply is lost.
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
- Rated for 10 bar system pressure; motors carry IP54 protection.
- Each pump is driven by IE5 permanent magnet motors with frequency-controlled speed matching demand.
- The set ships with an 24L precharged diaphragm tank for low-flow stability.
- Two Grundfos CRE 15-1 vertical multistage pumps run in parallel on one common base frame.
- Rated 1.5 kW (P2) on every main pump in the frame.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
What's Included
- 2 x Grundfos CRE 15-1 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 935 L/Min |
| Max Head | 19 m |
| Power | 2 x 1.5 kW / 415v |
| Rated Current | 2 x 6.2 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What suction and discharge connection sizing is provided on the stainless steel manifolds?
Header plumbing on the Grundfos Hydro Multi-E 2 CRE 15-1 U2 A-A-I-I-D provides DN 80 stainless steel suction and discharge connections accompanied by isolating valves and discharge check valves.
Which manufacturer warranty terms support this variable speed booster package?
Protection on the Hydro Multi-E 2 CRE 15-1 is provided by a comprehensive Grundfos two-year manufacturer warranty with extensive Australian technical service and spare parts support.
What peak water delivery capacity does this multi pump booster assembly maintain across peak demand?
Under maximum network draw, the Hydro-Multi-E-2-CRE-15-1 supplies a peak fluid flow rate of up to 935 L/min across its variable speed centrifugal stages.
How is mechanical power delivered and electronically regulated across this multi pump booster skid?
Propulsion across the Hydro Multi E 2 CRE 15 1 is supplied by two IE5 permanent-magnet MGE electric motors rated at 1.5 kW each, operating on a 3 x 380-415 V electrical supply with integrated frequency converters for precise pressure control.
What dynamic elevation head does this variable frequency booster package achieve on the mains?
For vertical pressure boosting, the 2 CRE 15-1 (Hydro Multi-E) produces up to 19 m total elevation head with a 10 bar maximum working pressure envelope.
