SKU: 99614450

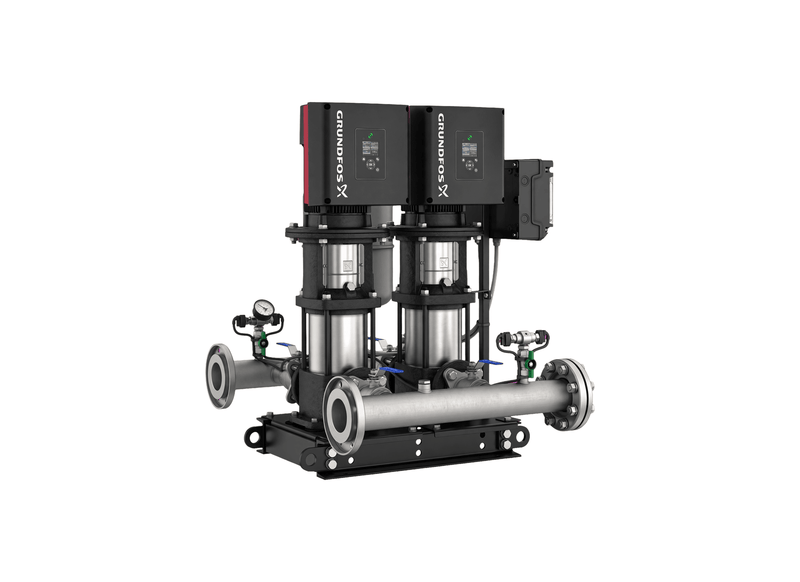

Grundfos Hydro Multi-E 2 x CRE 15-3 Three Phase 2 x 3kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Hydro Multi-E 2 CRE 15-3 is a proven fit for business parks adding tenancies faster than their mains can serve, with two Grundfos CRE 15-3 pumps staged automatically as demand varies. The complete system ships factory assembled and tested under part number 99614450.
Flow capacity reaches 853 L/min. Up to 59 metres of head is available to maintain pressure as demand changes. Because every pump carries its own frequency converter and the Multi-Master software elects the controlling pump itself, losing a control unit or pressure sensor means seamless handover rather than a shutdown.
The two-pump package arrives as one base-mounted assembly with stainless steel manifolds, two 80 mm manifold connections, valves, sensors and a pressure gauge, plus a 24L diaphragm tank. Electrical supply is 3 x 380-415 V at 50 / 60 Hz with a rated current of 12.4 A. The motors have IP54 protection and the system is rated to 10 bar maximum pressure. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 10 bar.
Typical duty sits with industrial process supply, aged-care complexes and mixed-use commercial buildings. It is designed for clean-water pressure boosting where demand varies through the day.
Features
- Maximum operating pressure of 10 bar with motors sealed to IP54.
- The set ships with an 24L precharged diaphragm tank for low-flow stability.
- Variable speed comes from frequency converters matched to IE5 permanent magnet motors, keeping the booster set in its efficient range.
- Cascade logic brings pumps on-line and off-line against changing demand without manual intervention.
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Two Grundfos CRE 15-3 pumps share the boosting work in parallel.
- Stainless steel manifolds provide two 80 mm manifold connections ready for pipework.
- Setup and monitoring run through the Grundfos GO app rather than a panel visit.
- Each main pump is rated 3 kW (P2), so per-pump draw scales down as speed follows demand.
- Power use precisely tracks demand, avoiding the waste of fixed-speed alternates.
- The system protects its pumps against dry running if the incoming supply is lost.
What's Included
- 2 x Grundfos CRE 15-3 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 853 L/Min |
| Max Head | 59 m |
| Power | 2 x 3 kW / 415v |
| Rated Current | 2 x 12.4 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What volumetric water flow does this packaged booster assembly supply for high demand installations?
Operating across its factory curve, the Grundfos Hydro Multi-E 2 CRE 15-3 U2 A-A-I-I-DU discharges up to 853 L/min of clean water to maintain consistent line pressure during peak demand cycles.
What motor drive hardware powers and modulates the centrifugal pumps on this booster package?
Each centrifugal stage of the Hydro Multi-E 2 CRE 15-3 is driven by a 3 kW IE5 permanent-magnet MGE electric motor running on 3 x 380-415 V power, utilizing built-in variable speed drives to adjust output dynamically.
What vertical pumping head and maximum system pressure rating applies to this booster package?
Elevating water across multi-level pipework, the Hydro-Multi-E-2-CRE-15-3 maintains up to 59 m total dynamic head with an overall 10 bar maximum operating limit.
How are the suction and discharge manifolds configured for direct line connection and servicing?
Plumbed for rapid site installation, the Hydro Multi E 2 CRE 15 3 includes DN 80 stainless steel headers equipped with dedicated isolating valves, check valves, and pressure transmitters.
Under what factory warranty terms is this variable frequency booster package supplied?
Grundfos provides two-year manufacturer warranty coverage on the 2 CRE 15-3 (Hydro Multi-E), securing the complete multi-pump package, manifolds, and integrated electronics.
