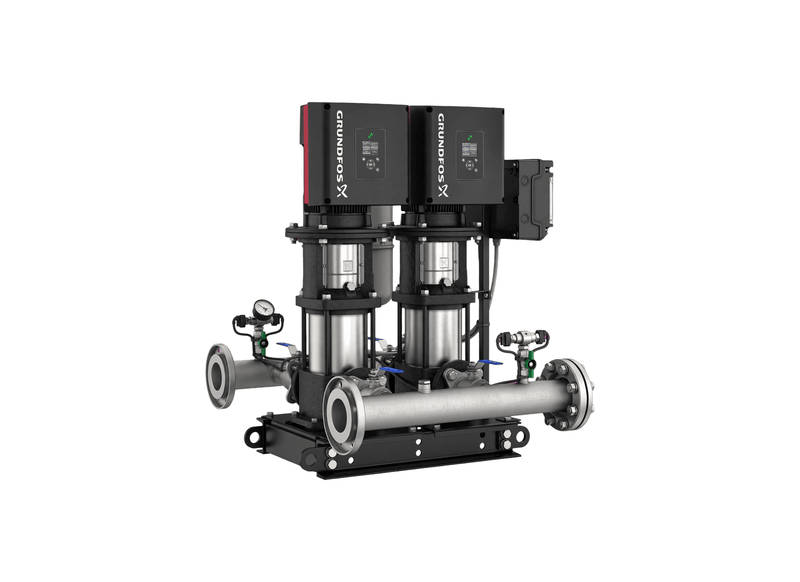

Grundfos Hydro Multi-E 2 x CRE 64-1 Three Phase 2 x 7.5kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
In hospital precincts and university campuses feeding dozens of en-suite banks, the simultaneous demand of the morning peak places heavy loads on the supply; the Hydro Multi-E 2 CRE64-1 answers with two CRE 64-1 pumps operating in parallel. Part number 93320262 provides the complete tested package in a single order line.
It handles flows up to 3145 L/min across the system. The pumps can develop up to 47 metres of head when pressure demand increases. There is no separate central controller to purchase: Multi-Master control resides within the pumps, either unit can assume the controlling role, and a fault is handed over cleanly without interrupting supply.
Factory assembled on a common base, the set combines stainless steel pipework, two 150 mm manifold connections, isolation and non-return valves, pressure sensors and a gauge, plus a 24L diaphragm tank. It connects to a 3 x 380-415 V supply at 50 / 60 Hz with a rated current of 27.2 A. Motors are protected to IP54, while maximum system pressure is 10 bar. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 10 bar.
Expect it on aged-care complexes and hospitals sites, plus industrial process supply duties. It provides clean-water pressure boosting for both new plant rooms and refits.
Features
- Two Grundfos CRE 64-1 vertical multistage pumps run in parallel on one common base frame.
- Rated for 10 bar system pressure; motors carry IP54 protection.
- Stainless steel manifolds provide two 150 mm manifold connections ready for pipework.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a phone.
- The set ships with an 24L precharged diaphragm tank for low-flow stability.
- The controller tracks the pressure setpoint with proportional deviation alerts before conditions become faults.
- Frequency converters on the motors pair with IE5 permanent magnet motors for efficient part-load operation.
- Power use precisely tracks demand, avoiding the waste of fixed-speed alternates.
- Dry-running protection is built into the control, protecting the pumps if the suction supply is interrupted.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- Pumps are cut in and out according to demand, every running unit turning at the same speed to hold the pressure set point.
- Rated 7.5 kW (P2) on every main pump in the frame.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
What's Included
- 2 x Grundfos CRE 64-1 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 3145 L/Min |
| Max Head | 47 m |
| Power | 2 x 7.5 kW / 415v |
| Rated Current | 2 x 27.2 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 150 mm |
| Outlet Size | 150 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which pipe connection sizes and manifold isolation valves are fitted across this booster package?
Header plumbing on the Grundfos Hydro Multi-E 2 CRE64-1 U2 A-A-I-I-DU provides DN 150 stainless steel suction and discharge connections accompanied by isolating valves and discharge check valves.
How is this packaged booster assembly backed by manufacturer warranty coverage?
Protection on the Hydro Multi-E 2 CRE64-1 is provided by a comprehensive Grundfos two-year manufacturer warranty with extensive Australian technical service and spare parts support.
What peak fluid volume does this variable speed booster set deliver during high draw periods?
Under maximum network draw, the Hydro-Multi-E-2-CRE64-1 supplies a peak fluid flow rate of up to 3145 L/min across its variable speed centrifugal stages.
What electrical motor power and drive electronics operate the pumps on this booster assembly?
Propulsion across the Hydro Multi E 2 CRE64 1 is supplied by two IE5 permanent-magnet MGE electric motors rated at 7.5 kW each, operating on a 3 x 380-415 V electrical supply with integrated frequency converters for precise pressure control.
What maximum system operating pressure and dynamic head does this packaged booster set deliver?
For vertical pressure boosting, the 2 CRE64-1 (Hydro Multi-E) produces up to 47 m total elevation head with a 10 bar maximum working pressure envelope.
