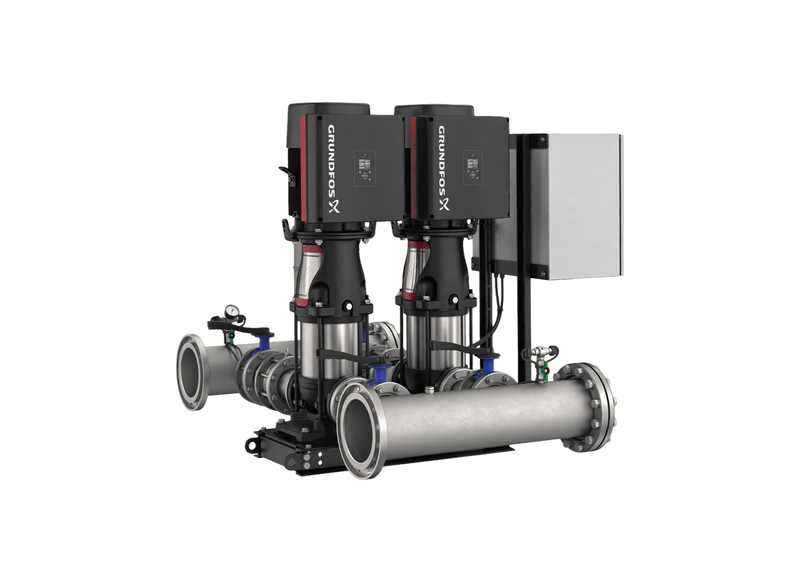

Grundfos Hydro Multi-E 2 x CRE 64-3-2 Three Phase 2 x 22kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Hydro Multi-E 2 CRE64-3-2 is a proven fit for apartment towers, hotel plant rooms and school wings with real morning demand spikes, with two Grundfos CRE 64-3 pumps staged automatically as demand varies. Quote part number 93320270 to have it arrive pre-configured and ready for the plant room.
It handles flows up to 3407 L/min across the system. The pumps can develop up to 101 metres of head when pressure demand increases. There is no separate central controller to purchase: Multi-Master control resides within the pumps, either unit can assume the controlling role, and a fault is handed over cleanly without interrupting supply.
The two-pump package arrives as one base-mounted assembly with stainless steel manifolds, two 150 mm manifold connections, valves, sensors and a pressure gauge, plus a 24L diaphragm tank. Electrical supply is 3 x 380-415 V at 50 / 60 Hz with a rated current of 75.4 A. The motors have IP54 protection and the system is rated to 16 bar maximum pressure. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 16 bar.
Its home ground covers industrial process supply, mixed-use commercial buildings and high-rise apartments. The variable-speed system suits clean-water boosting duties with changing demand.
Features
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a phone.
- Two Grundfos CRE 64-3 pumps share the boosting work in parallel.
- Power use precisely tracks demand, avoiding the waste of fixed-speed alternates.
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
- The stainless steel manifold assembly is supplied with two 150 mm manifold connections.
- The system protects its pumps against dry running if the incoming supply is lost.
- Variable speed comes from frequency converters matched to IE5 permanent magnet motors, keeping the booster set in its efficient range.
- No external controller required: Multi-Master redundancy lets either pump assume the controlling role.
- The package is wet-tested and pre-configured, requiring only pipework and power on site.
- Rated 22 kW (P2) on every main pump in the frame.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Maximum operating pressure of 16 bar with motors sealed to IP54.
- Pump staging follows demand automatically: pumps enter at low speed as pressure drops, ramp to equal speed, and exit as flow fades.
What's Included
- 2 x Grundfos CRE 64-3 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 3407 L/Min |
| Max Head | 101 m |
| Power | 2 x 22 kW / 415v |
| Rated Current | 2 x 75.4 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 150 mm |
| Outlet Size | 150 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Under high pressure demand, what vertical lift capability does this multi pump unit generate?
Under peak line requirements, the Grundfos Hydro Multi-E 2 CRE64-3-2 U2 A-A-I-I-D delivers a maximum vertical head of 101 m and accommodates working system pressures up to 16 bar.
How are the inlet and outlet pipe manifolds arranged with isolating and non return valves?
Factory pipework configuration on the Hydro Multi-E 2 CRE64-3-2 incorporates DN 150 stainless steel manifolds, complete with individual pump isolating valves and line non-return valves.
What warranty period and manufacturer coverage applies to this booster assembly?
Factory backing for the Hydro-Multi-E-2-CRE64-3-2 includes an authentic Grundfos two-year manufacturer warranty covering the pumps, drive electronics, and skid assembly.
Which peak volumetric output does this parallel centrifugal booster set deliver across the facility?
At full operational capacity, the Hydro Multi E 2 CRE64 3 2 provides up to 3407 L/min total water throughput to satisfy heavy facility consumption requirements.
Which variable frequency drive motors power the centrifugal stages across this booster system?
Power for the 2 CRE64-3-2 (Hydro Multi-E) is delivered via two high-efficiency IE5 permanent-magnet MGE electric motors of 22 kW each, wired for a 3 x 380-415 V electrical supply with built-in speed regulation.
