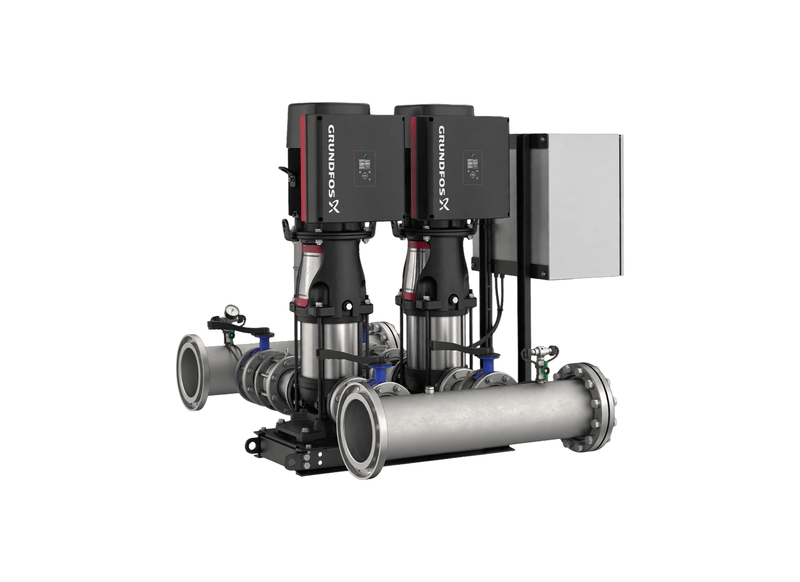

Grundfos Hydro Multi-E 2 x CRE 64-3 Three Phase 2 x 26kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
High-occupancy towers where every level opens its taps inside the same half hour rely on booster systems with no tolerance for pressure variation, and the Hydro Multi-E 2 CRE64-3 is engineered for exactly that duty. Everything is ordered under the single part number 93328667.
This set provides up to 3221 L/min of flow capacity. Variable-speed operation can develop up to 130 metres of head where required. There is no separate central controller to purchase: Multi-Master control resides within the pumps, either unit can assume the controlling role, and a fault is handed over cleanly without interrupting supply.
For installation, the booster is supplied pre-assembled with stainless steel manifolds, two 150 mm manifold connections, isolation valves, non-return valves, pressure sensors and a gauge, plus a 24L diaphragm tank. It is designed for 3 x 380-415 V power at 50 / 60 Hz with a rated current of 87.6 A, with IP54 motor protection and a 16 bar maximum system pressure. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 16 bar.
Applications include hospitals, high-rise apartments and mixed-use commercial buildings. The control flexibility suits clean-water boosting in new installations and upgrades.
Features
- The controller tracks the pressure setpoint with proportional deviation alerts before conditions become faults.
- Rated 26 kW (P2) on every main pump in the frame.
- The system protects its pumps against dry running if the incoming supply is lost.
- No external controller required: Multi-Master redundancy lets either pump assume the controlling role.
- Power use precisely tracks demand, avoiding the waste of fixed-speed alternates.
- Rated for 16 bar system pressure; motors carry IP54 protection.
- An integrated 24L diaphragm tank carries small draw-offs and limits pump cycling.
- Frequency converters on the motors pair with IE5 permanent magnet motors for efficient part-load operation.
- Factory assembled and wet-tested, the set arrives pre-configured for straightforward installation.
- The stainless steel manifold assembly is supplied with two 150 mm manifold connections.
- Two Grundfos CRE 64-3 vertical multistage pumps run in parallel on one common base frame.
- Cascade logic brings pumps on-line and off-line against changing demand without manual intervention.
- Integrated Grundfos GO compatibility supports configuration, logging and diagnostics from a phone.
What's Included
- 2 x Grundfos CRE 64-3 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 3221 L/Min |
| Max Head | 130 m |
| Power | 2 x 26 kW / 415v |
| Rated Current | 2 x 87.6 Amps |
| Suitable For | Commercial Water Supply, Pressure Boosting |
| Body Material | Cast Iron |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 150 mm |
| Outlet Size | 150 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What stainless steel manifold sizing and valve equipment is factory assembled on this skid?
Header plumbing on the Grundfos Hydro Multi-E 2 CRE64-3 U2 A-A-I-I-D provides DN 150 stainless steel suction and discharge connections accompanied by isolating valves and discharge check valves.
What manufacturer warranty terms protect this multi pump booster skid assembly?
Protection on the Hydro Multi-E 2 CRE64-3 is provided by a comprehensive Grundfos two-year manufacturer warranty with extensive Australian technical service and spare parts support.
Under maximum flow conditions, what water delivery volume can this parallel pump unit maintain?
Under maximum network draw, the Hydro-Multi-E-2-CRE64-3 supplies a peak fluid flow rate of up to 3221 L/min across its variable speed centrifugal stages.
How is variable frequency motor propulsion delivered to each centrifugal wet end on this unit?
Propulsion across the Hydro Multi E 2 CRE64 3 is supplied by two IE5 permanent-magnet MGE electric motors rated at 26 kW each, operating on a 3 x 380-415 V electrical supply with integrated frequency converters for precise pressure control.
How much elevation lift head does this multi pump booster system generate across the ringmain?
For vertical pressure boosting, the 2 CRE64-3 (Hydro Multi-E) produces up to 130 m total elevation head with a 16 bar maximum working pressure envelope.
