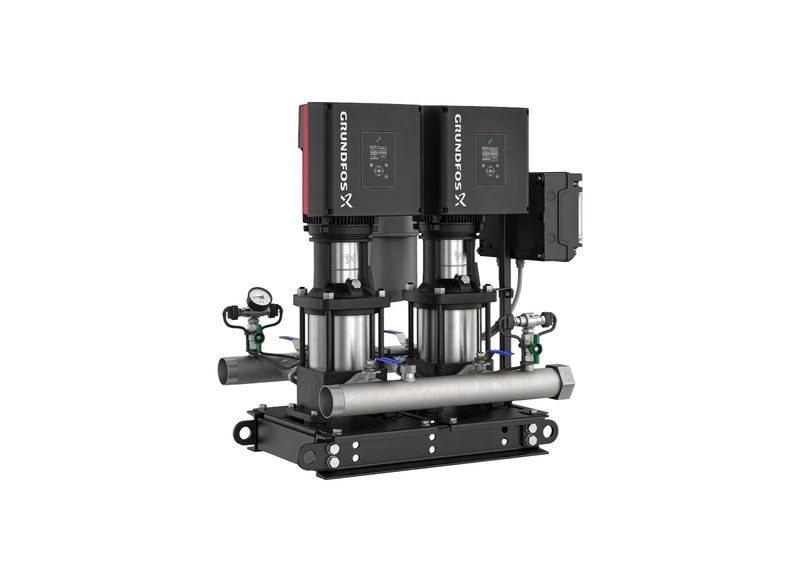

Grundfos Hydro Multi-E 2 x CRNE 10-2 Three Phase 2 x 0.75kW Variable Speed Booster Pump Set with 24L Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Across installations such as residential towers and medium commercial sites outgrowing their mains pressure, the Hydro Multi-E 2 CRNE 10-2 maintains stable pressure at every draw-off point. The complete system ships factory assembled and tested under part number 99752275.
This set provides up to 445 L/min of flow capacity. Variable-speed operation can develop up to 28 metres of head where required. Because every pump carries its own frequency converter and the Multi-Master software elects the controlling pump itself, losing a control unit or pressure sensor means seamless handover rather than a shutdown.
The two-pump package arrives as one base-mounted assembly with stainless steel manifolds, two 50 mm manifold connections, valves, sensors and a pressure gauge, plus a 24L diaphragm tank. Electrical supply is 3 x 380-415 V at 50 / 60 Hz with a rated current of 3.7 A. The motors have IP55 protection and the system is rated to 10 bar maximum pressure. Liquid-temperature suitability is 5°C to 60°C. Inlet pressure is rated to 10 bar.
Its home ground covers industrial process supply, aged-care complexes and high-rise apartments. The variable-speed system suits clean-water boosting duties with changing demand.
Features
- The set ships with an 24L precharged diaphragm tank for low-flow stability.
- Two Grundfos CRNE 10-2 vertical multistage pumps run in parallel on one common base frame.
- Pumps are cut in and out according to demand, every running unit turning at the same speed to hold the pressure set point.
- Multi-Master redundancy means either pump can act as controller, with seamless changeover on fault.
- Setup and monitoring run through the Grundfos GO app rather than a panel visit.
- Energy draw matches the actual job because speed follows demand, not a fixed curve.
- Rated 0.75 kW (P2) on every main pump in the frame.
- Maximum operating pressure of 10 bar with motors sealed to IP55.
- Dry-running protection is built into the control, protecting the pumps if the suction supply is interrupted.
- Constant pressure control holds the delivered pressure flat while proportional mode lets setpoints flex with demand.
- Frequency converters on the motors pair with IE5 permanent magnet motors for efficient part-load operation.
- The package is wet-tested and pre-configured, requiring only pipework and power on site.
- The stainless steel manifold assembly is supplied with two 50 mm manifold connections.
What's Included
- 2 x Grundfos CRNE 10-2 vertical multistage pumps
- IE5 permanent magnet motors with integrated frequency converters
- Stainless steel suction manifold
- Stainless steel discharge manifold
- Non-return valves
- Isolation valves
- Pressure sensors/transmitters
- Pressure gauge
- 24L diaphragm pressure tank
- Factory assembled and tested booster system
SPECIFICATIONS
| Max Flow | 445 L/Min |
| Max Head | 28 m |
| Power | 2 x 0.75 kW / 415v |
| Rated Current | 2 x 3.7 Amps |
| Suitable For | Commercial Water Supply, Process and Food-Grade Duties |
| Body Material | Stainless Steel |
| Liquid Temperature | 5°C – 60°C |
| Inlet Size | 65 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Under peak elevation requirements, what total dynamic head does this booster set achieve?
Under peak line requirements, the Grundfos Hydro Multi-E 2 CRNE 10-2 U2 A-A-I-I-DU delivers a maximum vertical head of 28 m and accommodates working system pressures up to 10 bar.
What manifold port diameters and check valve fittings connect the pumps on this booster assembly?
Factory pipework configuration on the Hydro Multi-E 2 CRNE 10-2 incorporates R 2 1/2 stainless steel manifolds, complete with individual pump isolating valves and line non-return valves.
What manufacturer warranty backing supports this packaged variable speed pump set?
Factory backing for the Hydro-Multi-E-2-CRNE-10-2 includes an authentic Grundfos two-year manufacturer warranty covering the pumps, drive electronics, and skid assembly.
Which water throughput capacity does this multi pump booster set maintain during maximum facility draw?
At full operational capacity, the Hydro Multi E 2 CRNE 10 2 provides up to 445 L/min total water throughput to satisfy heavy facility consumption requirements.
How is electric motor propulsion and inverter regulation delivered across this booster assembly?
Power for the 2 CRNE 10-2 (Hydro Multi-E) is delivered via two high-efficiency IE5 permanent-magnet MGE electric motors of 0.75 kW each, wired for a 3 x 380-415 V electrical supply with built-in speed regulation.
