SKU: 96104120

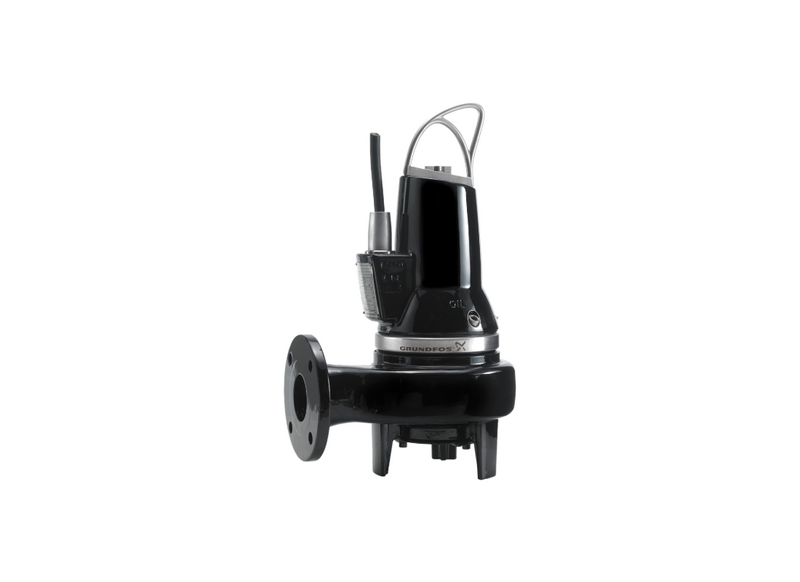

Grundfos SL1.50.65.15.Ex.2.50B Cast Iron 50mm Wastewater Pump for Raw Sewage with Single Channel Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Operating within demanding drainage environments, the SL1.50.65.15.Ex.2.50B non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage addresses operational load challenges. The assembly supports liquid transfer in commercial facilities, operating optimally in continuous submerged installations.
Constructed with an EN-GJL-250 cast iron pump housing, the architecture is engineered to endure aggressive fluid dynamics. The cast iron motor house provides structural protection for internal mechanisms while submerged. A SiC/SiC primary shaft seal acts as a resilient barrier against fluid ingress, intended to support the lifespan in raw sewage applications.
Evaluating hydraulic paths, this submersible wastewater pump achieves a maximum flow of 1170 L/Min and a maximum head of 16 m. Driven by a 1.5 kW motor requiring a 415v three-phase power supply, it draws a rated current of 3.8 Amps. Registering a net weight of 55.3 kg, it is suitable for guide rail installations using an automatic coupling arrangement.
This explosion-proof configuration is intended to support safety in hazardous environments. The EN 12050-2 approval verifies its capability to handle unscreened sewage. Utilizing a stainless-steel clamp system, the pump allows direct maintenance access without special tools, helping manage downtime during routine facility evaluations.
Features
- Revolutionary S-tube impeller provides free spherical passage of solids up to 50 mm.
- Operates at a rated speed of 2720 rpm with a direct-on-line starting method.
- Motor is protected by an IP68 enclosure class and insulation class F rating.
- Suitable for guide rail installations using an automatic coupling arrangement.
- Equipped with a 10 m H07RN-F power cable for flexible electrical connection.
- Net weight of the complete pump assembly is documented at 55.3 kg.
SPECIFICATIONS
| Max Flow | 1170 L/Min |
| Max Head | 16 m |
| Rated Current | 3.8 Amps |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 65 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What electrical voltage and motor kilowatt output drive this unit?
It operates on 415 V three-phase power, with the Grundfos SL1.50.65.15.Ex.2.50B utilizing a durable 1.5 kW motor rated at 3.8 Amps.
Where is this pump typically deployed across residential and rural systems?
System installations deploy the SL1.50.65.15.Ex.2.50B for Solid matter up to 50 mm in diameter clears the drainage volute of without impedance, maintaining steady circulation and reliable line pressure.
How is this pump mounted for quick inspection and servicing?
For rapid positioning and retrieval, the SL1-50-65-15-Ex-2-50B features a standard standard connection suited for guide rail auto-coupling pedestals.
What is the maximum flow capacity of this pump per minute?
Moving liquid through the system, the SL1 50 65 15 Ex 2 50B maintains an operational throughput of up to 1170 L/Min during peak demand.
How high can this pump lift water vertically?
Dynamic lift generated by the SL1/50/65/15/Ex/2/50B reaches a maximum elevation head of approximately 16 m across discharge lines.
