SKU: 96878477

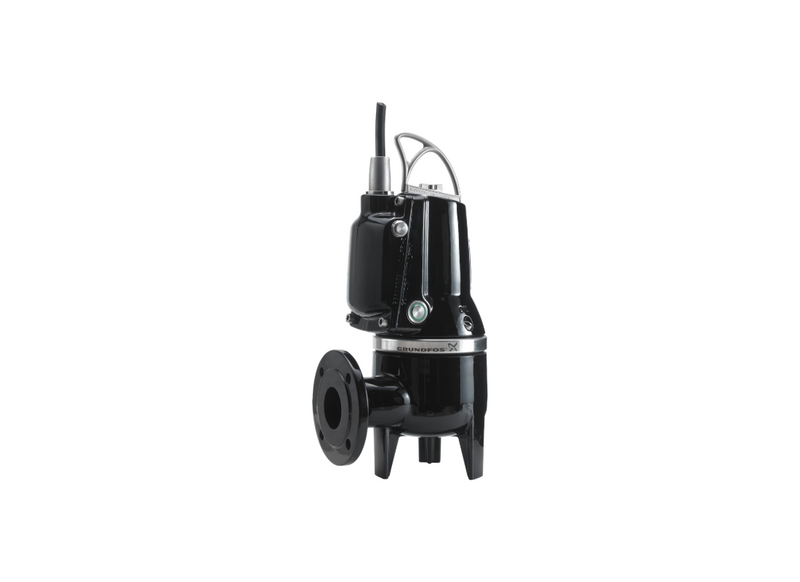

Grundfos SLV.65.65.09.E.Ex.2.50B Cast Iron AUTOADAPT Wastewater Pump for Raw Sewage with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Addressing long-term operating cost scaling, the SLV.65.65.09.E.Ex.2.50B non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage delivers reliable energy efficiency. Built to operate consistently in continuous submerged installations, the system supports dedicated commercial wastewater transfer stations.
Constructed with an EN-JL-1030 cast iron pump housing, the internal architecture withstands prolonged mechanical stress. The heavy-duty cast iron motor house ensures substantial protection for delicate components while fully submerged. A specialized SiC/SiC primary shaft seal provides a resilient barrier against fluid ingress, protecting the drive shaft in harsh applications.
This submersible wastewater pump provides a maximum flow of 366.6 L/Min and a maximum head of 7 m. Powered by a 0.9 kW motor requiring a 415v three-phase power supply, the unit operates at a rated current of 2.8 Amps. With a net weight of 52.5 kg, the unit is configured to be suitable for guide rail installations using an automatic coupling arrangement.
Engineered for hazardous environments, this explosion-proof configuration incorporates AUTOADAPT technology, allowing the unit to run autonomously without external control boxes. The EN 12050-1 approval confirms its capacity to handle unscreened sewage. A stainless-steel clamp assembling system permits rapid disassembly, streamlining routine inspections.
Features
- Efficient SuperVortex impeller provides passage of long fibres and solids up to 65 mm.
- Operates at a rated speed of 2870 rpm with a direct-on-line starting method.
- Motor efficiency reaches 65% at full operational load capacity.
- Suitable for guide rail installations using an automatic coupling arrangement.
- Equipped with a 10 m Lyniflex power cable for secure electrical connection.
- Net weight of the complete pump assembly is documented at 52.5 kg.
SPECIFICATIONS
| Max Flow | 366.6 L/Min |
| Max Head | 7 m |
| Rated Current | 2.8 Amps |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 65 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How many meters of dynamic lift does this pump provide?
Under rated operating head, the Grundfos SLV.65.65.09.E.Ex.2.50B can lift water to a maximum dynamic head of approximately 7 m through vertical risers.
How much electricity and current does this pump draw under load?
Running on 415 V three-phase power supplies, the SLV.65.65.09.E.Ex.2.50B is driven by a 0.9 kW motor rated at 2.8 Amps.
How is the pump casing constructed to resist mechanical and fluid wear?
High-grade high-grade alloy components in the SLV-65-65-09-E-Ex-2-50B protect internal passages against corrosive fluid contact.
Where is this pump commonly installed and utilized?
Primary tasks for the SLV 65 65 09 E Ex 2 50B include Integrated AUTOADAPT electronic sensors in govern autonomous pumping cycles directly without external control panels, delivering efficient water management across residential and rural systems.
What is the maximum water volume this pump can discharge?
Fluid evacuation capacity for the SLV/65/65/09/E/Ex/2/50B peaks at approximately 366.6 L/Min, providing dependable high-volume drainage.
