SKU: 96878504

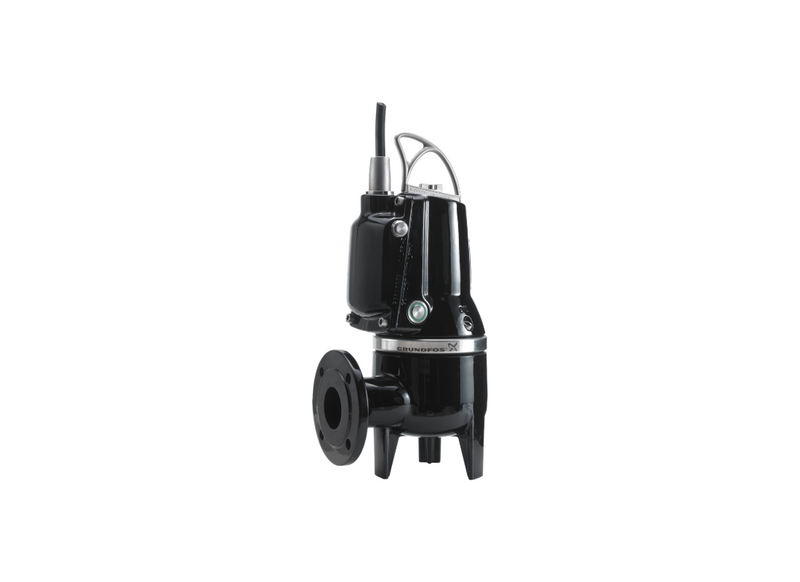

Grundfos SLV.65.65.15.E.Ex.2.50B Cast Iron AUTOADAPT Wastewater Pump for Sewage with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Addressing long-term operating cost scaling, the SLV.65.65.15.E.Ex.2.50B non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage delivers reliable energy efficiency. Built to operate consistently in continuous submerged installations, the system supports dedicated commercial wastewater transfer stations.
Constructed with an EN-JL-1030 cast iron pump housing, the internal architecture withstands prolonged mechanical stress. The heavy-duty cast iron motor house ensures substantial protection for delicate components while fully submerged. A specialized SiC/SiC primary shaft seal provides a resilient barrier against fluid ingress, protecting the drive shaft in harsh applications.
This submersible wastewater pump provides a maximum flow of 483.6 L/Min and a maximum head of 12.2 m. Powered by a 1.5 kW motor requiring a 415v three-phase power supply, the unit operates at a rated current of 3.8 Amps. With a net weight of 52.6 kg, the unit is configured to be suitable for guide rail installations using an automatic coupling arrangement.
Engineered for hazardous environments, this explosion-proof configuration incorporates AUTOADAPT technology, allowing the unit to run autonomously without external control boxes. The EN 12050-1 approval confirms its capacity to handle unscreened sewage. A stainless-steel clamp assembling system permits rapid disassembly, streamlining routine inspections.
Features
- Efficient SuperVortex impeller provides passage of long fibres and solids up to 65 mm.
- Operates at a rated speed of 2720 rpm with a direct-on-line starting method.
- Motor efficiency reaches 67% at full operational load capacity.
- Suitable for guide rail installations using an automatic coupling arrangement.
- Equipped with a 10 m Lyniflex power cable for secure electrical connection.
- Net weight of the complete pump assembly is documented at 52.6 kg.
SPECIFICATIONS
| Max Flow | 483.6 L/Min |
| Max Head | 12.2 m |
| Rated Current | 3.8 Amps |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 65 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum flow capacity of this pump per minute?
Fluid evacuation capacity for the Grundfos SLV.65.65.15.E.Ex.2.50B peaks at approximately 483.6 L/Min, providing dependable high-volume drainage.
How high can this pump lift water vertically?
Pumping performance for the SLV.65.65.15.E.Ex.2.50B provides up to 12.2 m of vertical dynamic lift, depending on system friction and line sizing.
What voltage supply and motor power does this pump need?
Under full load conditions, the motor in the SLV-65-65-15-E-Ex-2-50B delivers 1.5 kW on a 415 V three-phase line drawing 3.8 Amps.
How does the internal runner prevent debris from lodging inside?
Equipped with a non-clogging runner, the SLV 65 65 15 E Ex 2 50B facilitates free spherical passage for solid waste up to 65 mm.
What domestic plumbing and water boosting roles does this pump perform?
Routine operational tasks matching the SLV/65/65/15/E/Ex/2/50B encompass Self-monitoring routines and integrated sensors in eliminate separate starter cabinets by coordinating autonomous cycles across connected networks.
