SKU: 98626527

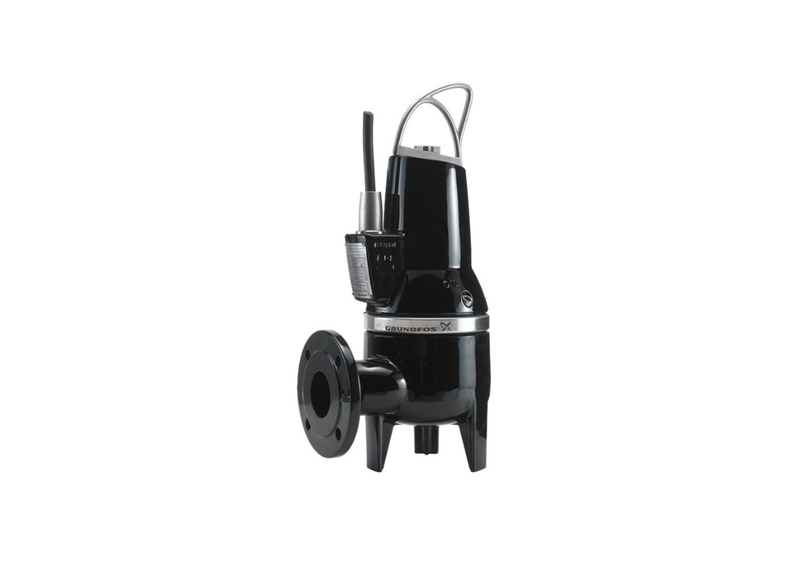

Grundfos SLV.65.65.30.A.EX.2.50B.C Cast Iron 2-Pole Submersible Pump for Raw Sewage with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Highlighting a primary structural material choice, the SLV.65.65.30.A.EX.2.50B.C integrates an ultra-durable EN-GJL-250 cast iron housing. Acting as a rugged non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage, this massive assembly resists severe mechanical degradation.
Detailing the internal fluid velocity paths, this pumping solution utilizes a 3-phase 415v electrical infrastructure with a 3 kW power input. Operating smoothly at 6.4 Amps, the internal motor effectively translates electrical potential into fluid displacement, achieving an approximate maximum flow of 750 L/Min during runtime.
By addressing long-term safety protection containment, the explosion-proof motor configuration ensures full compliance with facility parameters. It drives liquid against an approximate maximum head of 23.3 meters, ensuring strict fluid velocity boundaries are maintained across intense continuous or intermittent submerged installations.
The overall dimensional architecture specifically features an 80 millimeter inlet connection combined seamlessly with a 65 millimeter outlet flange. This meticulously engineered port layout prevents critical bottlenecks and significantly minimizes destructive friction across the piping network, actively preserving the motor's operational lifecycle.
Features
- Fitted with an advanced SuperVortex impeller to process concentrated long fibres and solid materials up to 65 millimeters.
- Integrates a quick-release stainless-steel clamp assembling system allowing instant separation of the motor and pump head.
- Protected by a highly resilient silicon carbide mechanical shaft seal (SIC/SIC) shielding the core rotational components.
- Includes dedicated internal moisture and water-in-oil sensor arrays for accurate monitoring of submerged conditions.
- Constructed to rigorous IP68 enclosure specifications while maintaining an H class insulation thermal rating profile.
- Designed with a 2909 rpm rated speed motor that maximizes long-term reliability and physical fluid handling capacity.
SPECIFICATIONS
| Max Flow | 750 L/Min |
| Max Head | 23.3 m |
| Power | 3 kW / 415v |
| Rated Current | 6.4 Amps |
| Suitable For | Commercial Wastewater |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum water volume this pump can discharge?
Moving liquid through the system, the Grundfos SLV.65.65.30.A.EX.2.50B.C maintains an operational throughput of up to 750 L/Min during peak demand.
How high can this pump push fluid through discharge risers?
Dynamic lift generated by the SLV.65.65.30.A.EX.2.50B.C reaches a maximum elevation head of approximately 23.3 m across discharge lines.
What are the power requirements and running amperage for this pump?
Connecting across 415 V three-phase lines, the SLV-65-65-30-A-EX-2-50B-C draws approximately 6.4 Amps with an efficient 3 kW motor.
What primary fluid transfer and circulation roles are designated for this pump?
Primary tasks for the SLV 65 65 30 A EX 2 50B C include Suspended waste containing solids up to 65 mm passes cleanly through via its precision SuperVortex runner, delivering efficient water management across residential and rural systems.
What connection layout and port dimensions are featured on this unit?
Discharge pipework interfaces directly with the SLV/65/65/30/A/EX/2/50B/C through a standard auto-coupling for quick field installation.
