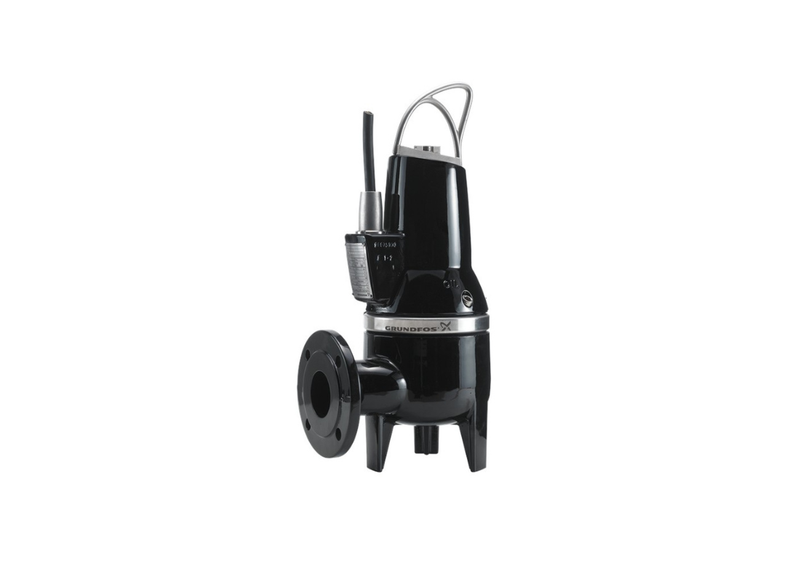

Grundfos SLV.65.80.22.2.50B.C Cast Iron 2-Pole Submersible Pump for Unscreened Sewage with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Addressing long-term operating cost scaling and energy efficiency, the SLV.65.80.22.2.50B.C functions as an advanced non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage. Its meticulous engineering actively reduces downtime across continuous submerged fluid transfer networks.
By establishing the explicit operational load challenge, this system conquers severe liquid densities utilizing a 3-phase 415v configuration producing a 2.2 kW power input. The motor carefully regulates electrical consumption at 4.7 Amps to steadily deliver an approximate maximum flow output measuring exactly 750 L/Min.
Highlighting a primary structural material choice, the equipment is anchored by an exceptionally dense EN-GJL-250 cast iron pump casing. The internal geometry guarantees zero restrictions as volatile process liquids are channeled directly from an 80 millimeter flanged inlet completely through to the matching 80 millimeter discharge outlet.
Detailing hydraulic configuration and fluid stability, the precision internal casting flawlessly accelerates process liquid upwards, effectively reaching an approximate maximum head of 19.5 meters. This thermal and kinetic stability ensures the entire structural foundation avoids the premature mechanical wear frequently seen in intensive uses.
Features
- Engineered around a high-capacity SuperVortex impeller to effortlessly displace raw solids up to 65 millimeters in scale.
- Integrates a heavily reinforced stainless-steel clamp assembling system designed to ensure lightning-fast field inspections.
- Sealed flawlessly via a heavy-duty silicon carbide mechanical interface (SIC/SIC) protecting the central rotation assembly.
- Features highly sensitive internal moisture sensors constructed directly into the unit to alert operators of fluid presence.
- Manufactured with an outstanding IP68 enclosure classification and a superior H class motor winding insulation thermal rating.
- Supplied out of the box with a 10 meter length of rugged 07RN8-F power cable suitable for heavy industrial environments.
SPECIFICATIONS
| Max Flow | 750 L/Min |
| Max Head | 19.5 m |
| Power | 2.2 kW / 415v |
| Rated Current | 4.7 Amps |
| Suitable For | Surface Water, Domestic Graywater |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What peak fluid displacement volume can this pump deliver?
Displacing fluid into connected headers, the Grundfos SLV.65.80.22.2.50B.C sustains up to 750 L/Min of volumetric throughput.
What total dynamic head can this pump overcome in vertical pipework?
Vertical elevation capability on the SLV.65.80.22.2.50B.C reaches a maximum dynamic head of approximately 19.5 m under rated conditions.
What electrical connection and motor power run this pump?
Powered by a dedicated 2.2 kW motor, the SLV-65-80-22-2-50B-C connects to 415 V three-phase mains power with a rated current draw of 4.7 Amps.
Where is this pump commonly installed and utilized?
Everyday water management duties for the SLV 65 80 22 2 50B C focus on Hydraulic contours of the SuperVortex runner in maintain an unobstructed corridor that accommodates solid waste up to 65 mm, providing reliable pumping performance.
How does this pump connect to standard plumbing and flanged lines?
Connecting via a standard guide rail auto-coupling, the SLV/65/80/22/2/50B/C aligns cleanly with system plumbing headers.
