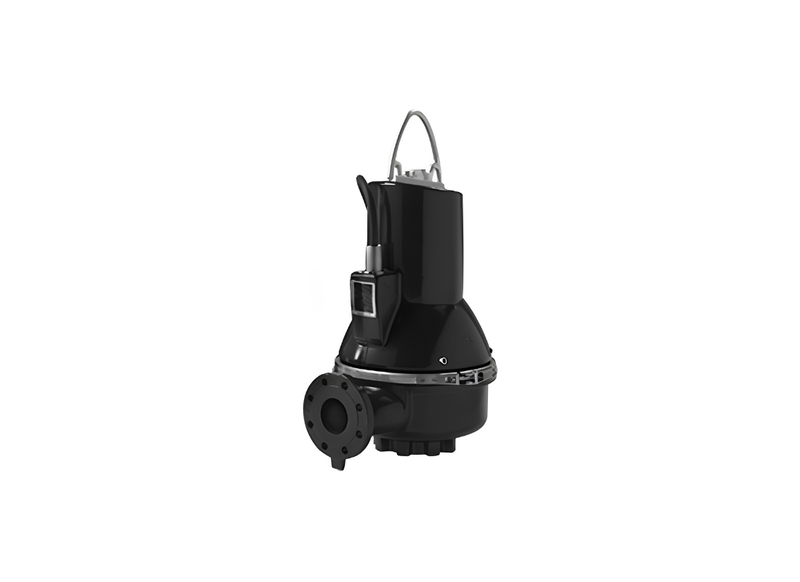

Grundfos SLV.80.80.15.4.50B.C Cast Iron 4-Pole Submersible Pump for Sewage Handling with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Addressing long-term operating cost scaling and safety protection containment, the SLV.80.80.15.4.50B.C functions as an extremely rugged non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage. Its meticulous engineering actively curtails downtime across harsh, continuous submerged fluid transfer networks.
By establishing the explicit operational load challenge, this system conquers severe liquid densities using a precise 3-phase 415v electrical framework that produces a 1.5 kW power input. Safely drawing just 3.9 Amps during intensive runtime, the motor seamlessly transforms energy to steadily deliver an approximate maximum flow output measuring precisely 1200 L/Min.
Highlighting a primary structural material choice, the entire mechanism is anchored by an exceptionally dense EN-GJL-250 cast iron pump casing. The flawless internal geometry guarantees zero flow restrictions as volatile process liquids are channeled directly from an 80 millimeter flanged suction inlet completely out through to a matching 80 millimeter discharge connection.
Detailing hydraulic configuration and circulation stability, the highly refined internal casting perfectly accelerates process liquid upwards to confidently achieve an approximate maximum head of 10.9 meters. The thermal switch protection matrix guarantees the internal motor avoids destructive core heat buildup, ensuring strict operational boundaries are reliably maintained over time.
Features
- Engineered with an efficient SuperVortex impeller to safely allow passage of long fibres and solids up to 80 millimeters.
- Constructed with a unique stainless-steel clamp assembling system that enables rapid disassembly for field service and inspection.
- Utilizes a high-endurance silicon carbide primary shaft seal configuration (SIC/SIC) to protect internal chamber integrity.
- Equipped with an integrated moisture sensor array to actively monitor the internal motor status against fluid intrusion.
- Features an IP68 rated enclosure class paired with an H insulation class motor for superior operational safety.
- Calibrated to spin steadily at 1451 rpm, effectively balancing intense raw flow capacity with mechanical longevity.
- Supplied with a flexible 10 meter 07RN8-F power cable to accommodate deep municipal submerged installation environments.
SPECIFICATIONS
| Max Flow | 1200 L/Min |
| Max Head | 10.9 m |
| Power | 1.5 kW / 415v |
| Rated Current | 3.9 Amps |
| Suitable For | Domestic/Industrial Effluent |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water flow can this pump deliver per minute?
Peak fluid displacement on the Grundfos SLV.80.80.15.4.50B.C delivers up to 1200 L/Min under rated operating conditions.
What is the maximum vertical lift capacity of this pump?
Fluid elevation through vertical risers reaches up to 10.9 m with the SLV.80.80.15.4.50B.C under standard duty points.
What electrical supply parameters are needed for this pump motor?
It operates on 415 V three-phase power, with the SLV-80-80-15-4-50B-C utilizing a durable 1.5 kW motor rated at 3.9 Amps.
What maximum particle diameter can safely pass through the casing?
To prevent clogging from wastewater solids and fibrous waste, the SLV 80 80 15 4 50B C provides dedicated passage for particles up to 80 mm.
How does this pump connect into wet well pipework?
For rapid positioning and retrieval, the SLV/80/80/15/4/50B/C features a standard auto-coupling suited for guide rail auto-coupling pedestals.
