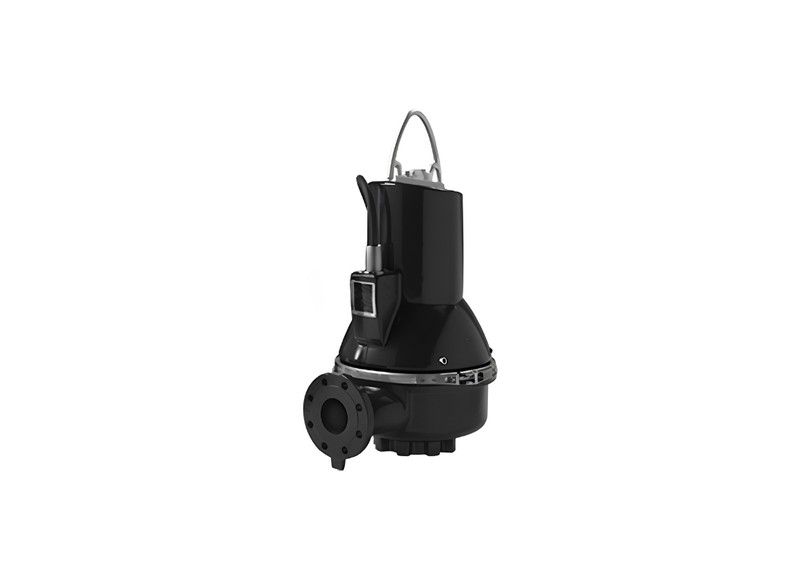

Grundfos SLV.80.80.40.2.50B.C Cast Iron 2-Pole Submersible Pump for Raw Sewage with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Addressing severe operational loads and continuous fluid burdens, the SLV.80.80.40.2.50B.C operates as an elite non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage. The rugged cast housing guarantees structural stability across demanding municipal drainage lines.
Detailing internal velocity paths, this precise configuration utilizes a completely unhindered flow layout. Volatile liquids are drawn powerfully into a wide 80 millimeter flanged suction port and propelled seamlessly directly out through a matching 80 millimeter discharge connection, actively minimizing destructive internal friction.
To systematically conquer immense vertical resistance, the internal core heavily relies on a balanced 3-phase 415v electrical infrastructure. Drawing a highly regulated 8.2 Amps, the internal motor efficiently converts a 4 kW power input to steadily achieve an approximate maximum flow measuring 1332 L/Min during runtime.
Focusing precisely on safety containment, this formidable mechanism overcomes intense subterranean environmental forces to effortlessly propel dense fluids against an approximate maximum head of 24.5 meters. The structural architecture is further protected by integrated thermal controls to completely prevent destructive heat buildup.
Features
- Fitted with an advanced SuperVortex impeller to process concentrated long fibres and solid materials up to 80 millimeters.
- Integrates a quick-release stainless-steel clamp assembling system allowing instant separation of the motor and pump head.
- Protected by a highly resilient silicon carbide mechanical shaft seal (SIC/SIC) shielding the core rotational components.
- Constructed to rigorous IP68 enclosure specifications while maintaining an H class insulation thermal rating profile.
- Designed with a 2930 rpm rated speed motor that maximizes long-term reliability and heavy physical fluid handling capacity.
- Secured exclusively with a heavily sheathed 10 meter LYNIFLEX electrical cable structured to survive constant liquid exposures.
SPECIFICATIONS
| Max Flow | 1332 L/Min |
| Max Head | 24.5 m |
| Power | 4 kW / 415v |
| Rated Current | 8.2 Amps |
| Suitable For | High-Pressure Raw Sewage |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water volume can this pump displace through its outlet?
Discharge throughput on the Grundfos SLV.80.80.40.2.50B.C reaches a maximum flow rate of approximately 1332 L/Min under standard operating conditions.
How much vertical head pressure can this pump generate?
To overcome vertical elevation resistance, the SLV.80.80.40.2.50B.C develops a maximum pumping head of approximately 24.5 m.
What kind of power supply does this pump require to run?
Electrical power for the SLV-80-80-40-2-50B-C requires a 415 V three-phase connection, driving an efficient 4 kW motor that draws 8.2 Amps.
What is the maximum spherical solids clearance for this pump?
Internal hydraulic clearances in the SLV 80 80 40 2 50B C allow spherical waste up to 80 mm to move through the chamber without lodging.
What mounting system enables fast installation and retrieval of this pump?
Mechanical mounting for the SLV/80/80/40/2/50B/C is configured around a standard guide rail auto-coupling for straightforward pit alignment.
