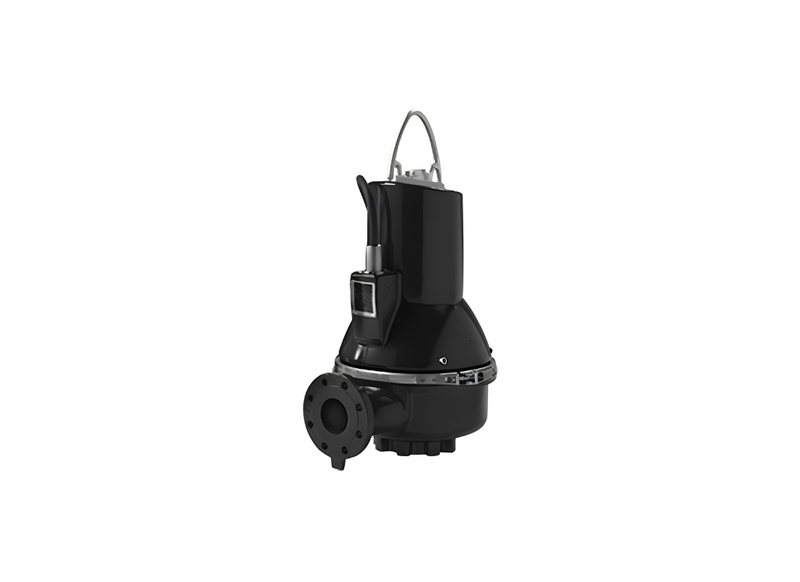

Grundfos SLV.80.80.40.4.50B.C Cast Iron 4-Pole Submersible Pump for Unscreened Sewage with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Highlighting a primary structural material choice, this heavy-duty commercial unit incorporates a phenomenally resilient EN-GJL-250 cast iron exterior. The SLV.80.80.40.4.50B.C serves as a rugged non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage in complex zones.
The dimensional architecture of the internal fluid chamber is thoroughly optimized to sustain absolute capacity without severe mechanical bottlenecks. Dense liquids flow straight from an unhindered 80 millimeter suction flange totally through to a perfectly aligned 80 millimeter outlet port, thereby preserving structural integrity.
Executing heavy rotational torque under constant tension requires a meticulous 3-phase 415v electrical supply matrix. Operating at a completely smooth 9.6 Amps, the unit safely consumes a 4 kW power input to aggressively generate an approximate maximum flow output measuring 1416 L/Min across challenging infrastructure.
Providing exceptional safety protection containment for deep submerged networks, the balanced mechanism successfully drives heavy suspended liquids upwards to achieve an approximate maximum head of 18 meters. The inclusion of internal PTC thermal switches guarantees the system actively avoids potentially catastrophic internal temperatures.
Features
- Engineered around a high-capacity SuperVortex impeller to safely allow passage of raw debris and solids up to 80 millimeters.
- Uses an exclusive stainless-steel clamp assembling system ensuring fast and effortless pump housing separation for service.
- Utilizes a high-grade dual silicon carbide primary shaft seal configuration (SIC/SIC) to entirely eliminate internal chamber leaks.
- Provides top-tier ingress defense through an IP68 enclosure class rating accompanied by an H level thermal insulation class.
- Calibrated to spin steadily at 1464 rpm, effectively balancing intense raw flow capacity with long-term mechanical longevity.
- Fitted securely with an extended 10 meter LYNIFLEX electrical cable engineered for challenging deep water immersions.
SPECIFICATIONS
| Max Flow | 1416 L/Min |
| Max Head | 18 m |
| Power | 4 kW / 415v |
| Rated Current | 9.6 Amps |
| Suitable For | Heavy Municipal Wastewater |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum water volume this pump can discharge?
Fluid evacuation capacity for the Grundfos SLV.80.80.40.4.50B.C peaks at approximately 1416 L/Min, providing dependable high-volume drainage.
How high can this pump push fluid through discharge risers?
Pumping performance for the SLV.80.80.40.4.50B.C provides up to 18 m of vertical dynamic lift, depending on system friction and line sizing.
What are the power requirements and running amperage for this pump?
Under full load conditions, the motor in the SLV-80-80-40-4-50B-C delivers 4 kW on a 415 V three-phase line drawing 9.6 Amps.
Is the pump body built to withstand harsh and corrosive liquids?
Built with a resilient high-grade alloy body, the SLV 80 80 40 4 50B C maintains material durability against fluid abrasion and wear.
How does this pump connect to standard plumbing and flanged lines?
Plumbing integration on the SLV/80/80/40/4/50B/C utilizes a dedicated auto-coupling layout for reliable pipeline connection.
