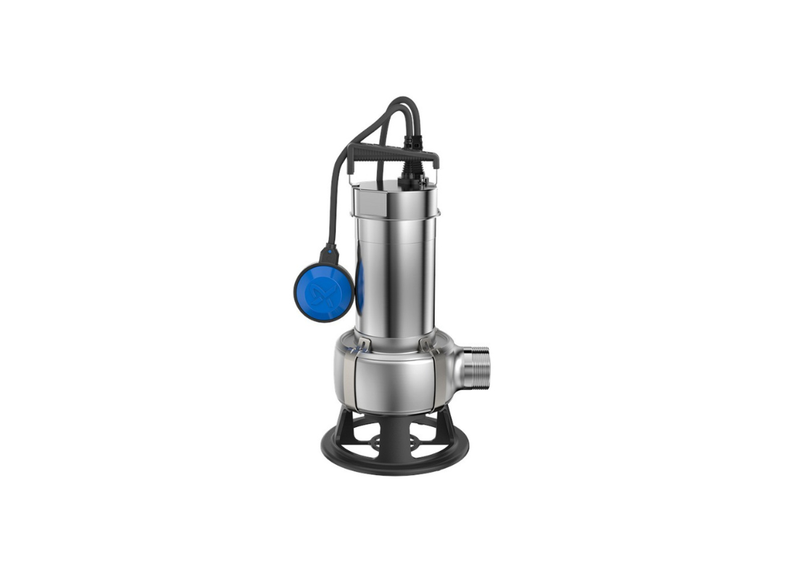

Grundfos UNILIFT AP35B.50.06.A1V Stainless Steel Submersible Drainage Pump for Wastewater with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The UNILIFT AP35B.50.06.A1V Unilift AP 35B and 50B pumps are single stage pumps with a vortex impeller designed to conservatively manage surface water, groundwater, and wastewater transfer applications. Operating within submerged aquatic settings, this submersible effluent pump provides uninterrupted fluid extraction for reliable commercial facility operation.
Constructed of premium EN 1.4301 AISI 304 stainless steel with a heavy-duty composite base plate, the exterior housing delivers superior resistance against aggressive wastewater elements. The robust internal architectural design includes an intermediate oil chamber pre-filled with non-toxic special oil, actively protecting the double shaft seal system from hazardous fluid intrusion.
Examining internal hydraulic stability, the specialized vortex impeller expertly handles suspended solids and dirty water with particles up to 35 mm in diameter, ensuring sustained velocity paths. This mechanical arrangement maintains pressure for an approximate 10 m maximum head and a throughput of approximately 300 L/Min, seamlessly pushing fluid through a standard 50 mm discharge port.
Addressing long-term operating cost scaling, the internal motor features an advanced insulation class F rating for superior heat management. Powered by a 0.66 kW Single Phase 240v electrical architecture, it ensures maximum reliability across demanding continuous runtime cycles.
Features
- Integrated thermal overload protection proactively safeguards the internal motor circuitry
- Equipped with long-life deep-groove greased-for-life ball bearings to reduce friction
- Supplied with a 10 m mains cable and dedicated AU plug for immediate deployment
- Includes a dedicated level switch to provide automated start and stop functionality
- Fully certified with an IP68 enclosure class rating for permanent submerged installation
SPECIFICATIONS
| Max Flow | 300 L/Min |
| Max Head | 10 m |
| Power | 0.66 kW / 240v |
| Rated Current | 4.6 Amps |
| Suitable For | Wastewater Drainage |
| Body Material | Stainless steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What peak flow capacity and vertical elevation does this pump produce?
Output across system pipework enables the Grundfos UNILIFT AP35B.50.06.A1V to deliver up to 300 L/Min in flow and a maximum head of 10 m, depending on your pipe layout.
What are the power requirements and running amperage for this pump?
Under full load conditions, the motor in the UNILIFT AP35B.50.06.A1V delivers 0.66 kW on a 240v line drawing 4.6 Amps.
What metallurgy is selected for the pump body to resist abrasive wear?
Built with a resilient Stainless steel body, the UNILIFT-AP35B-50-06-A1V maintains material durability against fluid abrasion and wear.
Where is this pump typically deployed across residential and rural systems?
Routine operational tasks matching the UNILIFT AP35B 50 06 A1V encompass Official application documentation pairs with stormwater pit drainage, greywater trench evacuation, and suspended soft solids passage across connected networks.
What warranty protection and factory support cover this pump?
Grundfos backs the UNILIFT/AP35B/50/06/A1V with an official 2 Years warranty, offering reliable coverage and factory technical support.
