SKU: 96432503

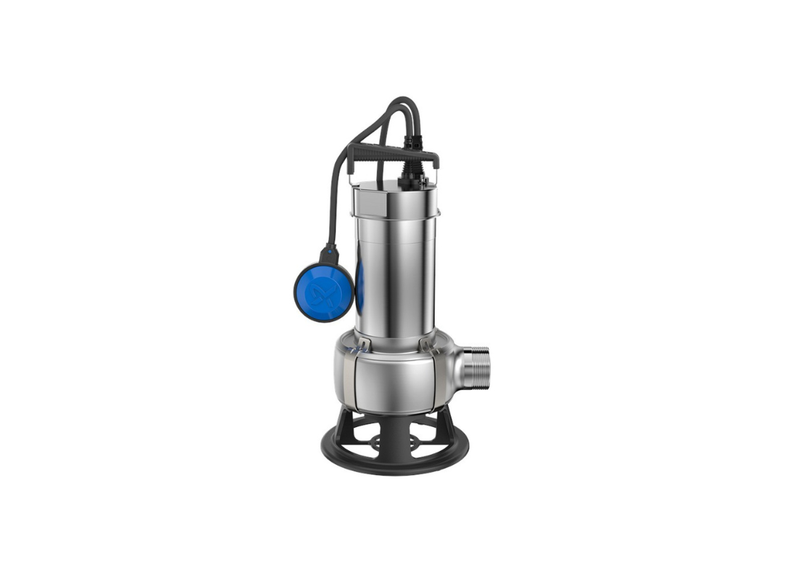

Grundfos UNILIFT AP35B.50.08.A1V Stainless Steel Submersible Drainage Pump for Surface Water with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Constructed of robust EN 1.4301 AISI 304 stainless steel, the UNILIFT AP35B.50.08.A1V Unilift AP 35B and 50B pumps are single stage pumps with a vortex impeller delivering exceptional structural resilience. Operating seamlessly in submerged settings, this submersible effluent pump is engineered to handle continuous duty cycles, ensuring commercial facilities remain safeguarded against groundwater accumulation.
Highlighting its defensive operational capabilities, the housing features a heavy-duty composite base plate that acts as a barrier against dirty wastewater. The advanced internal configuration incorporates an intermediate oil chamber pre-filled with non-toxic special oil, working in tandem with the double shaft seal system to totally eliminate fluid ingress into the motor casing.
Focusing on thermodynamic behavior and fluid velocity, the vortex impeller effectively passes suspended solids and dirty water containing particles up to 35 mm in diameter. Generating an impressive approximate 11 m maximum head and roughly 366 L/Min maximum flow, this precise hydraulic setup stabilizes water transfer seamlessly through the 50 mm discharge port.
Reducing ongoing facility expenditure, the 0.71 kW Single Phase 240v electrical architecture integrates an insulation class F motor housing. This configuration guarantees consistent electrical efficiency and prolonged operational lifespans without exceeding standard thermal thresholds during continuous submerged operation.
Features
- Internal thermal overload protection automatically shuts down the motor to prevent heat damage
- Standard deployment includes long-life deep-groove greased-for-life ball bearings
- Packaged completely with a 10 m mains cable and standard plug connection
- Features an external level switch for highly responsive automated fluid control
- Tested and approved to IP68 enclosure class parameters for deep water installation
SPECIFICATIONS
| Max Flow | 366 L/Min |
| Max Head | 11 m |
| Power | 0.71 kW / 240v |
| Rated Current | 5.4 Amps |
| Suitable For | Surface Water |
| Body Material | Stainless steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water volume and dynamic lift does this pump generate?
Achieving strong system delivery, the Grundfos UNILIFT AP35B.50.08.A1V develops a maximum flow rate of 366 L/Min and a maximum dynamic head of 11 m across its operating curve.
Does this pump run on standard household power or three-phase power?
Running on 240v power supplies, the UNILIFT AP35B.50.08.A1V is driven by a 0.71 kW motor rated at 5.4 Amps.
What materials protect the wetted parts against aggressive chemical attack?
High-grade Stainless steel components in the UNILIFT-AP35B-50-08-A1V protect internal passages against corrosive fluid contact.
What everyday water supply duties are best performed by this pump?
Primary tasks for the UNILIFT AP35B 50 08 A1V include stormwater pit drainage, greywater trench evacuation, and suspended soft solids passage, delivering efficient water management across residential and rural systems.
How long is the official factory warranty for this pump?
You receive a certified 2 Years manufacturer warranty with the UNILIFT/AP35B/50/08/A1V, giving you long-term protection and support.
