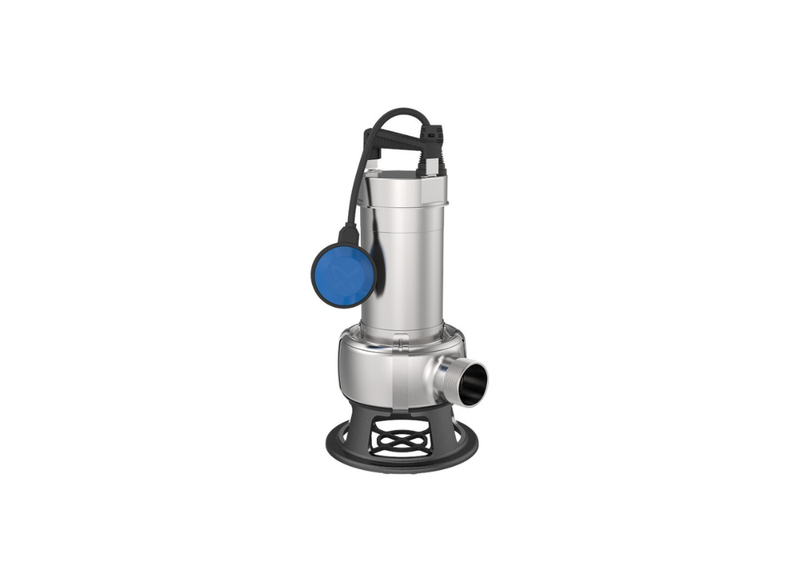

Grundfos UNILIFT AP50B.50.08.A1V Stainless Steel Submersible Drainage Pump for Drainage with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Engineered for superior hydraulic stability, the UNILIFT AP50B.50.08.A1V Unilift AP 35B and 50B pumps are single stage pumps with a vortex impeller ensuring sustained velocity paths during intensive fluid management operations. Tasked with heavy-duty surface water and groundwater extraction, this high-performance submersible effluent pump offers uninterrupted dependability for highly active commercial infrastructure.
At the core of its resilient physical architecture is a premium EN 1.4301 AISI 304 stainless steel pump housing and heavy-duty composite base plate. Component protection is elevated by a comprehensive double shaft seal design, backed by an intermediate oil chamber pre-filled with non-toxic special oil to actively defend the electrical compartment from harsh liquid elements.
Detailing its internal circulation mechanisms, the specialized vortex impeller provides an expanded 50 mm free passage, allowing large suspended solids and dense wastewater to transition smoothly. This robust mechanical configuration pushes an approximate 396 L/Min maximum flow alongside an 11 m maximum head, ejecting fluid rapidly out of a standard 50 mm discharge port.
Targeting long-term cost scaling, the integrated motor operates under strict insulation class F parameters. Utilizing a 0.74 kW Single Phase 240v power draw, the unit vastly curtails energy waste and drastically minimizes the need for routine mechanical intervention during heavy-duty continuous submerged applications.
Features
- Highly reactive thermal overload protection secures the electrical components from overheating
- Industrial-strength long-life deep-groove greased-for-life ball bearings minimize internal friction
- Includes a built-in level switch to regulate start and stop automated cycles efficiently
- Ready for immediate operation with a factory-installed 10 m power cable
- Evaluated for absolute waterproof performance with an IP68 enclosure rating
SPECIFICATIONS
| Max Flow | 396 L/Min |
| Max Head | 11 m |
| Power | 0.74 kW / 240v |
| Rated Current | 5.4 Amps |
| Suitable For | Groundwater Control |
| Body Material | Stainless steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What fluid throughput and pressure head are developed by this pump?
Depending on operating conditions, the Grundfos UNILIFT AP50B.50.08.A1V delivers a maximum flow rate of 396 L/Min and a maximum head of 11 m.
What electrical connection and motor power run this pump?
Connecting across 240v lines, the UNILIFT AP50B.50.08.A1V draws approximately 5.4 Amps with an efficient 0.74 kW motor.
Is the pump body built to withstand harsh and corrosive liquids?
Durable Stainless steel construction gives the UNILIFT-AP50B-50-08-A1V exceptional structural strength and long-term protection against corrosive fluids.
Which pumping tasks and system installations are ideal for this unit?
System installations deploy the UNILIFT AP50B 50 08 A1V for Motor torque in enables effective execution of stormwater pit drainage, greywater trench evacuation, and suspended soft solids passage, maintaining steady circulation and reliable line pressure.
What manufacturer warranty coverage is included with this pump?
Purchase of the UNILIFT/AP50B/50/08/A1V includes an official 2 Years warranty from Grundfos, covering parts and manufacturing quality.
