SKU: 92533687

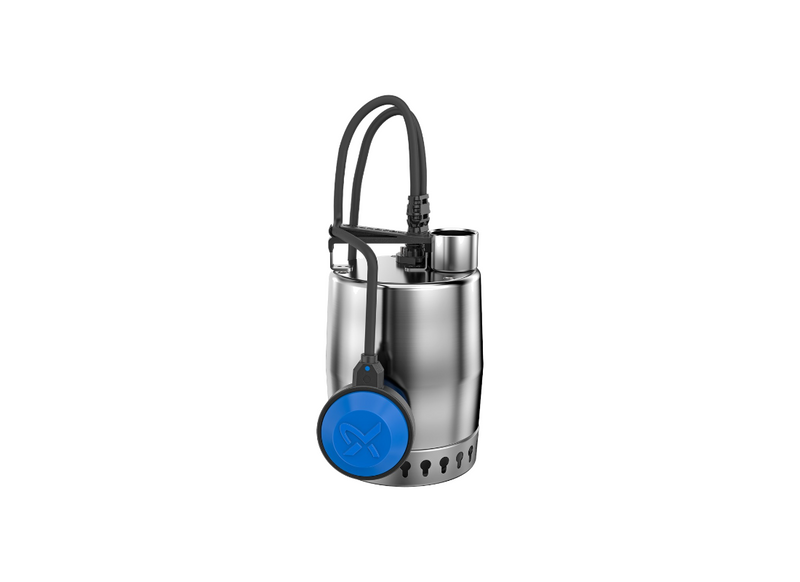

Grundfos Unilift KP.150.A.1 Stainless Steel Float Switch Drainage Pump for Pits with Semi-Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos Unilift KP.150.A.1 is a submersible drainage pump designed for clean water drainage together with storm water and grey water handling. Built from corrosion-resistant stainless steel materials, the pump is suitable for domestic drainage duties and light industrial applications where dependable automatic operation is required. Its compact construction and automatic level control make it suitable for a variety of drainage installations requiring reliable water removal performance.
The hydraulic system is powered by a 0.15 kW (P2) motor operating from a standard 240V electrical supply and drawing a rated current of 1.3 Amps. Designed for efficient water transfer, the pump delivers a maximum flow rate of 142 L/Min through its 1¼ inch discharge connection. Hydraulic performance is further supported by a maximum head of 5.5 metres, providing reliable operation across a broad range of drainage applications.
Fluid movement is provided through a semi-open impeller specifically designed for drainage applications. The hydraulic design permits the passage of particles up to 10 mm in size, making the pump suitable for water containing small suspended solids. Working alongside the stainless steel strainer, the pump is capable of reducing water levels down to approximately 100 mm, helping maximise water removal from pits, tanks and drainage areas.
All components in contact with the pumped liquid are manufactured from stainless steel to provide excellent corrosion resistance and long service life. Certified to IP68 enclosure standards, the unit supports liquid temperatures up to 50°C and installation depths of up to 2 metres. Automatic operation is provided through a float switch that starts and stops the pump according to changing water levels.
FEATURES
- Automatic operation via float switch.
- Integrated motor cooling jacket supports reliable operation whilst partially submerged.
- 304 stainless steel wetted components provide corrosion resistance and durability.
- Semi-open impeller permits the passage of particles up to 10 mm in size.
- Lightweight 6.3 kg construction assists handling and installation.
- Internal thermal protection helps protect the motor during operation.
- Supplied with a 5-metre power cable.
SPECIFICATIONS
| Max Flow | 142 L/Min |
| Max Head | 5.5 m |
| Power | 0.15 kW / 240v |
| Rated Current | 1.3 Amps |
| Suitable For | Domestic Sump Evacuation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | 0°C to +50°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum water flow rate and head pressure of this pump?
Rated for dependable performance, the Grundfos Unilift KP.150.A.1 provides up to 142 L/Min in flow and up to 5.5 m in head, depending on operating conditions.
Does this pump run on standard household power or three-phase power?
Electrical power for the Unilift KP.150.A.1 requires a 240v connection, driving an efficient 0.15 kW motor that draws 1.3 Amps.
What materials make this pump durable against corrosion and wear?
Structural defense on the Unilift-KP-150-A-1 is provided by a rugged Stainless Steel casing designed to withstand heavy mechanical stress.
What primary fluid transfer and circulation roles are designated for this pump?
Water management applications designate the Unilift KP 150 A 1 for Displacing liquid into property storage, Unilift KP 150 A executes basement sump dewatering, stormwater pit drainage, and greywater excavation disposal, supporting consistent property operation.
What warranty coverage applies to this pump for long-term peace of mind?
Backed by Grundfos engineering, the Unilift/KP/150/A/1 carries an official 2 Years warranty with genuine manufacturer support.
