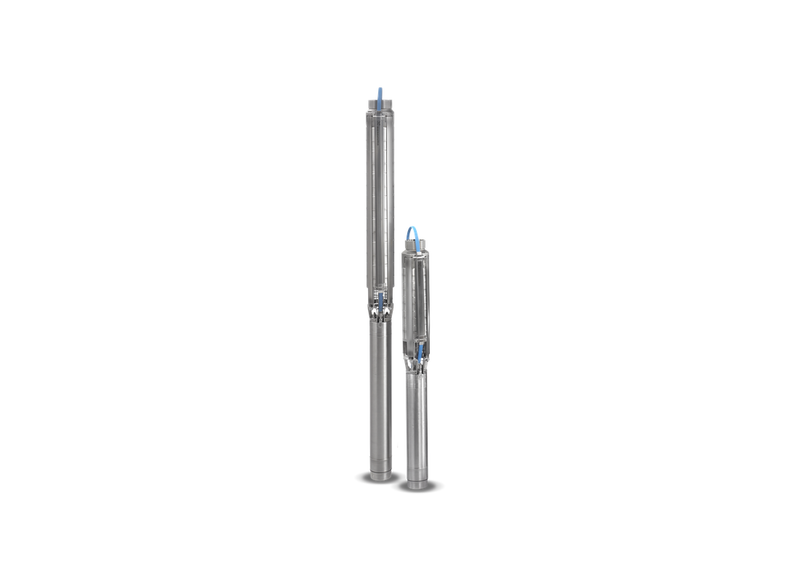

Grundfos SQF 0.6-2 N Stainless Steel Solar Submersible Pump for Water Supply Systems with Helical Rotor
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Water supply in remote and off-grid locations depends on reliable solar-powered pumping, making this submersible pump suitable for borehole installations using DC energy sources. It supports rural supply, livestock watering, and distributed systems where consistent operation is required without grid connectivity.
Performance extends to a maximum head of 120 m with a flow capacity of approximately 10.6 L/Min, derived from the performance curve at peak head conditions. This ensures dependable lifting capability for deep bore applications under varying solar input.
A helical rotor hydraulic design enables efficient operation at low flow rates while maintaining stable pressure output. This configuration supports smooth water movement, reduces pulsation, and ensures consistent discharge across the working range.
The construction incorporates AISI 316 stainless steel for both pump and motor components, providing corrosion resistance in submerged environments. A compact 3-inch design allows installation in boreholes with a minimum diameter of 76 mm, while integrated protections including dry-running, overload, and voltage safeguards ensure reliable operation.
FEATURES- Helical rotor design optimized for low flow and high head operation
- DC-powered operation compatible with solar energy systems
- Built-in MPPT maximizing energy utilization from solar input
- Integrated dry-running protection preventing pump damage
- Overload and voltage protection ensuring operational safety
- Compact 3-inch construction suitable for narrow boreholes
- AISI 316 stainless steel construction for corrosion resistance
- Integrated non-return valve preventing backflow
SPECIFICATIONS
| Max Flow | 10.6 L/Min |
| Max Head | 120 m |
| Power | 1400 W DC |
| Rated Current | 8.4 Amps |
| Suitable For | Water supply systems |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What kind of water volume and pressure head does this pump provide?
Rated for dependable performance, the Grundfos SQF 0.6-2 N provides up to 10.6 L/Min in flow and up to 120 m in head, depending on operating conditions.
Does this pump run on standard household power or three-phase power?
Electrical power for the SQF 0.6-2 N requires a standard line voltage connection, driving an efficient 1400 W motor that draws 8.4 Amps.
How is the pump casing constructed to resist mechanical and fluid wear?
Structural defense on the SQF-0-6-2-N is provided by a rugged AISI 316 casing designed to withstand heavy mechanical stress.
Where is this pump commonly installed and utilized?
Water management applications designate the SQF 0 6 2 N for subterranean groundwater lifting using off-grid renewable power arrays for remote livestock watering, supporting consistent property operation.
Does this pump include an official manufacturer warranty?
Backed by Grundfos engineering, the SQF/0/6/2/N carries an official 2 Years warranty with genuine manufacturer support.
