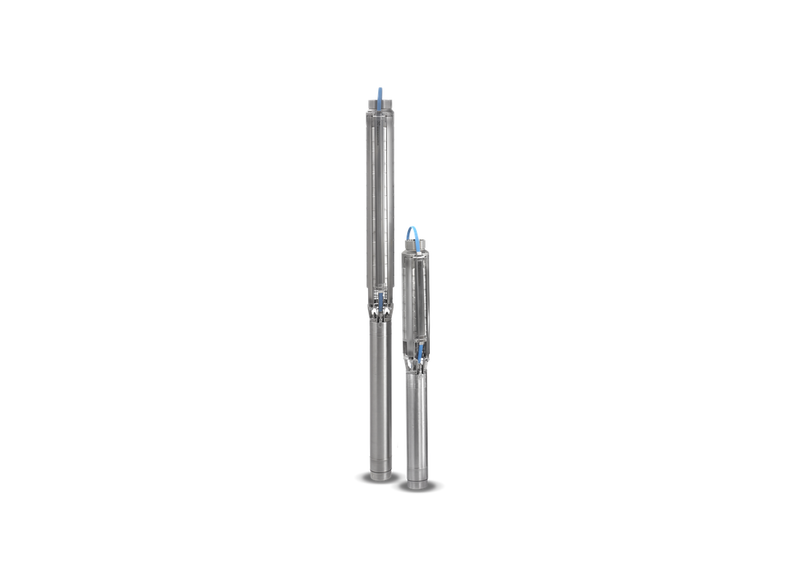

Grundfos SQF 0.6-3 N Stainless Steel Solar Submersible Pump for Livestock Watering with Helical Rotor
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Livestock watering in remote and off-grid environments requires dependable solar-powered pumping, making this submersible pump suitable for borehole installations operating on DC energy. It supports agricultural water supply where consistent delivery is essential without reliance on grid electricity.
Performance reaches a maximum head of 200 m with a flow capacity of approximately 10.8 L/Min, derived from the performance curve at peak head conditions. This ensures reliable water lifting from deep boreholes under varying solar input levels.
A helical rotor hydraulic design enables efficient operation at low flow rates while maintaining stable pressure output. This configuration ensures smooth water movement, minimizes pulsation, and supports consistent discharge across varying operating conditions.
The construction incorporates AISI 316 stainless steel for both pump and motor components, providing corrosion resistance in submerged environments. A compact 3-inch design allows installation in boreholes with a minimum diameter of 76 mm, while integrated protections including dry-running, overload, and voltage safeguards ensure dependable operation.
FEATURES- Helical rotor design optimized for low flow and high head performance
- DC-powered operation compatible with solar energy systems
- Integrated MPPT maximizing solar energy utilization efficiency
- Built-in dry-running protection preventing pump damage
- Overload and voltage protection ensuring safe motor operation
- Compact 3-inch construction suitable for narrow borehole installation
- AISI 316 stainless steel construction for corrosion resistance
- Integrated non-return valve preventing backflow in vertical installations
SPECIFICATIONS
| Max Flow | 10 L/Min |
| Max Head | 200 m |
| Power | 1400 W DC |
| Rated Current | 8.4 Amps |
| Suitable For | Water supply systems |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water flow and pressure can this pump deliver?
Output across system pipework enables the Grundfos SQF 0.6-3 N to deliver up to 10 L/Min in flow and a maximum head of 200 m, depending on your pipe layout.
What electrical connection and motor power run this pump?
Under full load conditions, the motor in the SQF 0.6-3 N delivers 1400 W on a standard line voltage line drawing 8.4 Amps.
What corrosion-resistant materials are used in the wetted components?
Built with a resilient AISI 316 body, the SQF-0-6-3-N maintains material durability against fluid abrasion and wear.
What domestic plumbing and water boosting roles does this pump perform?
Routine operational tasks matching the SQF 0 6 3 N encompass remote livestock watering across connected networks.
What factory warranty backing is provided with this pumping equipment?
Grundfos backs the SQF/0/6/3/N with an official 2 Years warranty, offering reliable coverage and factory technical support.
