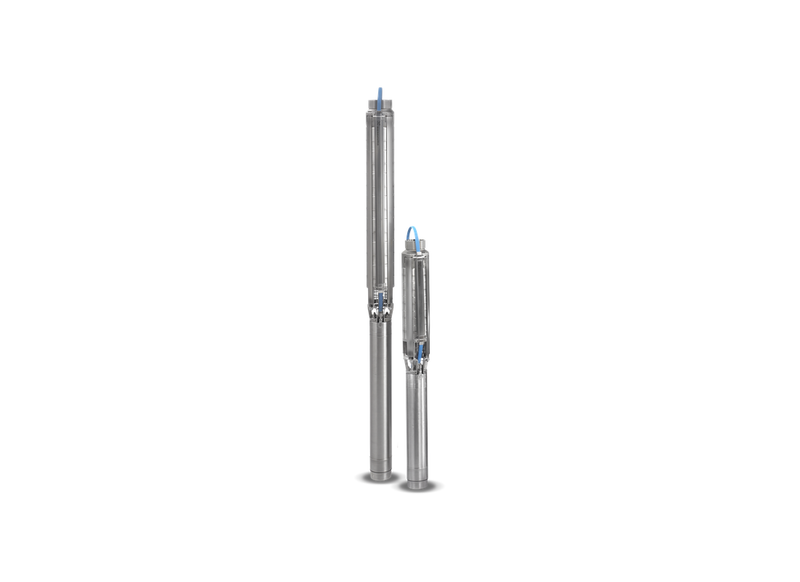

Grundfos SQF 1.2-2 N Stainless Steel Solar Submersible Pump for Irrigation Supply with Helical Rotor
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Irrigation supply in off-grid agricultural environments depends on reliable solar-powered pumping, making this submersible pump suitable for borehole installations operating on DC energy. It supports water distribution for irrigation systems where consistent delivery is required without grid dependency.
Performance reaches a maximum head of 120 m while delivering flow up to approximately 23.3 L/Min at lower head conditions. This allows flexible operation across varying depths, supporting both deep lifting and higher flow requirements depending on system demand.
A helical rotor hydraulic design enables efficient operation across a wide range of conditions, maintaining stable pressure while supporting smooth water movement. This configuration minimizes pulsation and ensures consistent discharge across varying operating points.
The construction incorporates AISI 316 stainless steel for both pump and motor components, providing corrosion resistance in submerged environments. A compact 3-inch design allows installation in boreholes with a minimum diameter of 76 mm, while integrated protections including dry-running, overload, and voltage safeguards ensure dependable operation.
FEATURES- Helical rotor design supporting wide operating range from low to high flow
- DC-powered operation compatible with solar energy systems
- Integrated MPPT maximizing solar energy utilization efficiency
- Built-in dry-running protection preventing pump damage
- Overload and voltage protection ensuring safe motor operation
- Compact 3-inch construction suitable for narrow borehole installation
- AISI 316 stainless steel construction for corrosion resistance
- Integrated non-return valve preventing backflow in vertical installations
SPECIFICATIONS
| Max Flow | 23.3 L/Min |
| Max Head | 120 m |
| Power | 1400 W DC |
| Rated Current | 8.4 Amps |
| Suitable For | Irrigation Supply |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water flow and dynamic pressure can this pump generate?
Achieving strong system delivery, the Grundfos SQF 1.2-2 N develops a maximum flow rate of 23.3 L/Min and a maximum dynamic head of 120 m across its operating curve.
What electrical voltage and motor kilowatt output drive this unit?
Running on standard line voltage power supplies, the SQF 1.2-2 N is driven by a 1400 W motor rated at 8.4 Amps.
Which casing and impeller materials provide long service life in this pump?
High-grade AISI 316 components in the SQF-1-2-2-N protect internal passages against corrosive fluid contact.
What primary water management tasks is this pump best suited for?
Primary tasks for the SQF 1 2 2 N include remote livestock watering, delivering efficient water management across residential and rural systems.
What official warranty duration comes with this pump from purchase?
You receive a certified 2 Years manufacturer warranty with the SQF/1/2/2/N, giving you long-term protection and support.
