SKU: 99612855

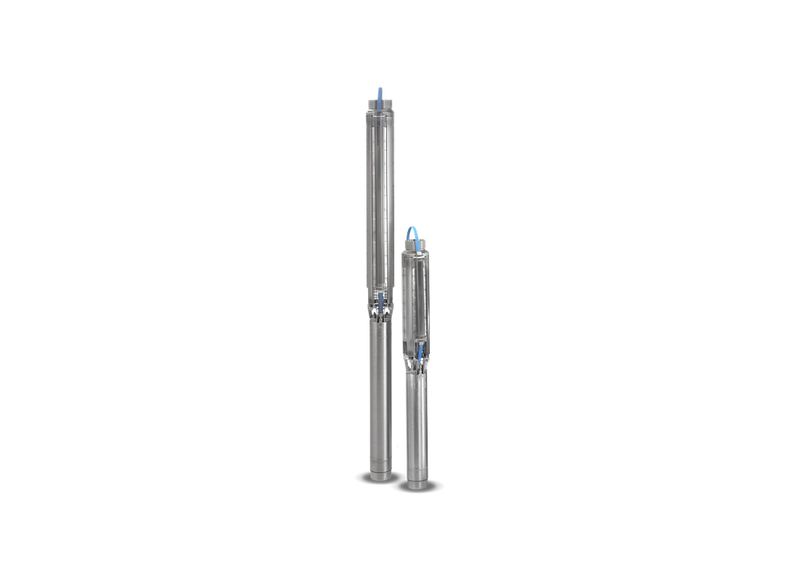

Grundfos SQF 1-30 N Stainless Steel Solar Submersible Pump for Small Water Supply with Helical Rotor
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Small-scale water supply in remote and off-grid environments requires efficient solar-powered pumping, making this submersible pump suitable for borehole installations operating on DC energy. It supports low-demand water systems where reliable delivery is essential without dependence on grid electricity.
Performance reaches a maximum head of 40 m while delivering flow up to approximately 36 L/Min at lower head conditions, based on the performance curve. This allows flexible operation for shallow lifting applications requiring stable and efficient flow delivery.
A helical rotor hydraulic design enables efficient operation at lower power input while maintaining steady pressure output. This configuration ensures smooth water movement, minimizes pulsation, and supports consistent discharge across varying operating conditions.
The construction incorporates AISI 316 stainless steel for both pump and motor components, providing corrosion resistance in submerged environments. A compact 3-inch design allows installation in boreholes with a minimum diameter of 76 mm, while integrated protections including dry-running, overload, and voltage safeguards ensure dependable operation.
FEATURES
- Helical rotor design optimized for low power and efficient flow delivery
- DC-powered operation compatible with solar energy systems
- Integrated MPPT maximizing solar energy utilization efficiency
- Built-in dry-running protection preventing pump damage
- Overload and voltage protection ensuring safe motor operation
- Compact 3-inch construction suitable for narrow borehole installation
- AISI 316 stainless steel construction for corrosion resistance
- Integrated non-return valve preventing backflow in vertical installations
SPECIFICATIONS
| Max Flow | 36 L/Min |
| Max Head | 40 m |
| Power | 350 W DC |
| Rated Current | 8.4 Amps |
| Suitable For | Small water supply |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What fluid throughput and pressure head are developed by this pump?
You get up to 36 L/Min in flow and a maximum head of 40 m from the Grundfos SQF 1-30 N, depending on operating conditions.
How much power does the motor consume during standard operation?
Powered by a dedicated 350 W motor, the SQF 1-30 N connects to standard line voltage mains power with a rated current draw of 8.4 Amps.
Is the pump body built to withstand harsh and corrosive liquids?
Manufactured with quality materials, the SQF-1-30-N incorporates AISI 316 for dependable longevity and resistance to fluid erosion.
Which pumping tasks and system installations are ideal for this unit?
Suited for diverse installations, the SQF 1 30 N performs subterranean groundwater lifting using off-grid renewable power arrays for remote livestock watering with dependable fluid propulsion.
What manufacturer warranty coverage is included with this pump?
Factory coverage on the SQF/1/30/N provides an authentic 2 Years warranty for dependable long-term reliability.
