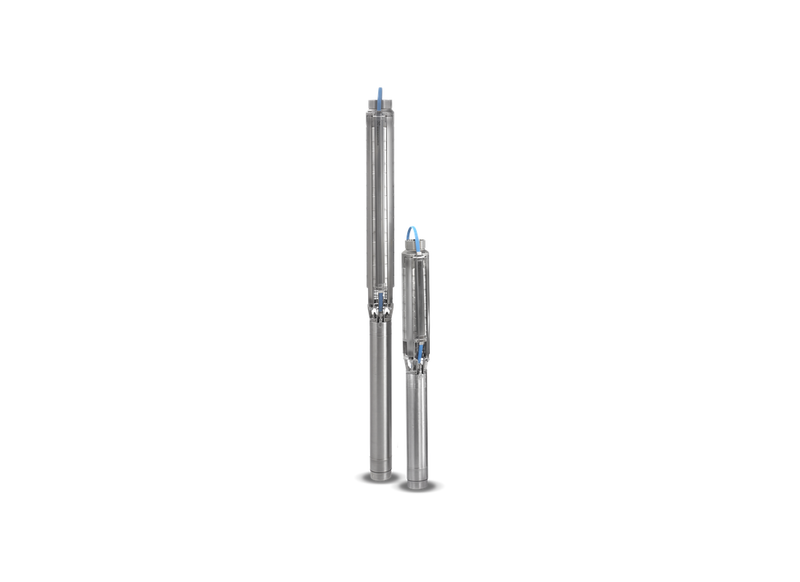

Grundfos SQF 1-70 N Stainless Steel Solar Submersible Pump for Elevated Tank Supply with Helical Rotor
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Elevated tank supply systems in remote and off-grid locations require reliable solar-powered pumping to ensure consistent water delivery at height. This submersible pump is suitable for borehole installations operating on DC energy, supporting applications where water must be lifted and stored in overhead tanks without grid dependency.
Performance reaches a maximum head of 70 m while delivering flow up to approximately 64 L/Min at lower head conditions, based on the performance curve. This allows efficient water transfer for storage and distribution systems requiring moderate head and higher flow capability.
A helical rotor hydraulic design enables efficient operation across a wide working range, maintaining stable pressure while supporting smooth water movement. This configuration minimizes pulsation and ensures consistent discharge across varying operating conditions.
The construction incorporates AISI 316 stainless steel for both pump and motor components, providing corrosion resistance in submerged environments. A compact 3-inch design allows installation in boreholes with a minimum diameter of 76 mm, while integrated protections including dry-running, overload, and voltage safeguards ensure dependable operation.
FEATURES
- Helical rotor design supporting stable flow with moderate head performance
- DC-powered operation compatible with solar energy systems
- Integrated MPPT maximizing solar energy utilization efficiency
- Built-in dry-running protection preventing pump damage
- Overload and voltage protection ensuring safe motor operation
- Compact 3-inch construction suitable for narrow borehole installation
- AISI 316 stainless steel construction for corrosion resistance
- Integrated non-return valve preventing backflow in vertical installations
SPECIFICATIONS
| Max Flow | 64 L/Min |
| Max Head | 70 m |
| Power | 900 W DC |
| Rated Current | 8.4 Amps |
| Suitable For | Elevated tank |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum water flow rate and head pressure of this pump?
Rated for dependable performance, the Grundfos SQF 1-70 N provides up to 64 L/Min in flow and up to 70 m in head, depending on operating conditions.
What electrical supply parameters are needed for this pump motor?
Electrical power for the SQF 1-70 N requires a standard line voltage connection, driving an efficient 900 W motor that draws 8.4 Amps.
What materials make this pump durable against corrosion and wear?
Structural defense on the SQF-1-70-N is provided by a rugged AISI 316 casing designed to withstand heavy mechanical stress.
What primary fluid transfer and circulation roles are designated for this pump?
Water management applications designate the SQF 1 70 N for subterranean groundwater lifting using off-grid renewable power arrays for remote livestock watering, supporting consistent property operation.
What warranty coverage applies to this pump for long-term peace of mind?
Backed by Grundfos engineering, the SQF/1/70/N carries an official 2 Years warranty with genuine manufacturer support.
