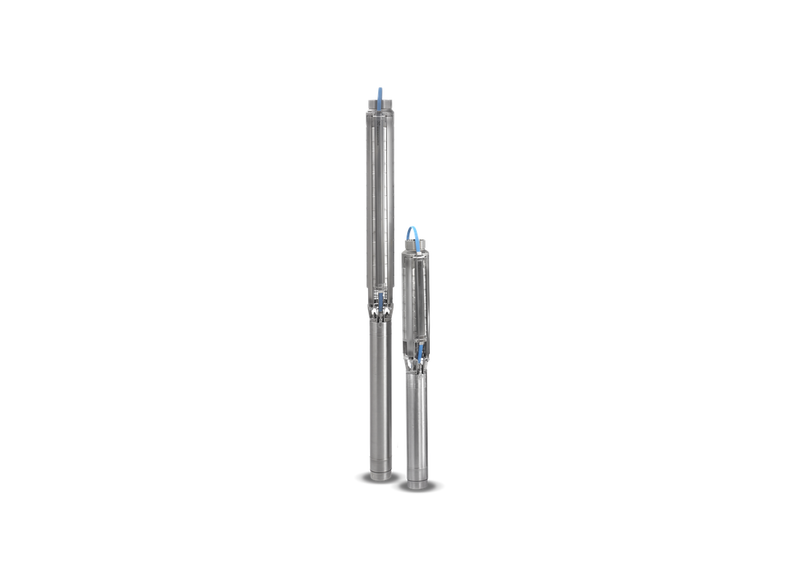

Grundfos SQF 3A-10 N Stainless Steel Solar Submersible Pump for Irrigation Distribution with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Irrigation distribution in agricultural and off-grid environments requires high-volume water delivery powered by solar energy, making this submersible pump suitable for borehole installations operating on DC power. It supports applications where large flow capacity is essential for effective water distribution across fields.
Performance reaches a maximum head of 70 m while delivering flow up to approximately 58.3 L/Min at lower head conditions, derived from the performance curve peak. This enables efficient handling of high-volume water transfer while maintaining flexibility across varying system demands.
A multi-stage centrifugal hydraulic design with closed stainless steel impellers enables efficient high-flow operation while maintaining stable pressure output. This configuration ensures smooth flow transition, reduces hydraulic losses, and supports consistent discharge across varying operating conditions.
The construction incorporates AISI 316 stainless steel for pump, impellers, and motor components, ensuring corrosion resistance in submerged environments. A 4-inch design requires a minimum borehole diameter of 104 mm, while integrated protections including dry-running, overload, and voltage safeguards ensure reliable operation.
FEATURES- Closed stainless steel impeller configuration for high flow delivery
- DC-powered operation designed for solar energy systems
- Integrated MPPT optimizing power input from solar sources
- Built-in dry-running protection preventing operational damage
- Overload and voltage protection ensuring safe performance
- 4-inch pump design suitable for larger borehole installations
- AISI 316 stainless steel construction for corrosion resistance
- Integrated non-return valve preventing reverse flow
SPECIFICATIONS
| Max Flow | 58 L/Min |
| Max Head | 70 m |
| Power | 1400 W DC |
| Rated Current | 8.4 Amps |
| Suitable For | Irrigation distribution |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water flow and vertical lift can I get from this pump?
Output across system pipework enables the Grundfos SQF 3A-10 N to deliver up to 58 L/Min in flow and a maximum head of 70 m, depending on your pipe layout.
What voltage supply and motor power does this pump need?
Under full load conditions, the motor in the SQF 3A-10 N delivers 1400 W on a standard line voltage line drawing 3A.
What materials are used to construct the pump casing and impeller?
Built with a resilient AISI 316 body, the SQF-3A-10-N maintains material durability against fluid abrasion and wear.
What property water management tasks match this pump?
Routine operational tasks matching the SQF 3A 10 N encompass remote livestock watering across connected networks.
How many years of warranty coverage come with this Grundfos pump?
Grundfos backs the SQF/3A/10/N with an official 2 Years warranty, offering reliable coverage and factory technical support.
