SKU: 92533526

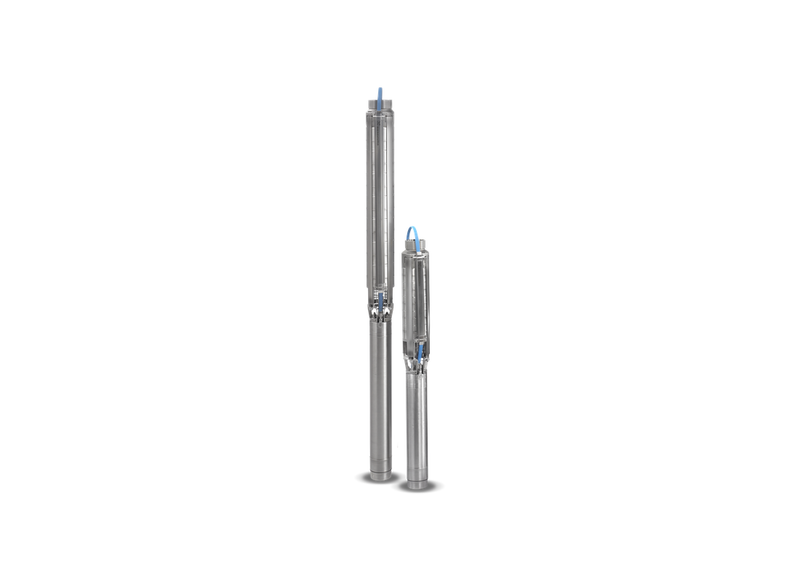

Grundfos SQF 5-70 N Stainless Steel Solar Submersible Pump for Pressure Water Supply with Polyamide Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Pressure water supply systems in remote and off-grid environments require dependable solar-powered pumping capable of delivering stable water pressure from borehole installations. This submersible pump is suitable for renewable energy applications where consistent supply and efficient operation are essential without dependence on grid electricity.
Performance reaches a maximum head of 100 m while delivering flow up to approximately 133 L/Min at lower head conditions, derived from the performance curve peak. This allows efficient medium-head operation while maintaining stable discharge across varying demand requirements.
A multi-stage centrifugal hydraulic design supports medium-to-high flow operation with balanced pressure characteristics across borehole applications. The polyamide impeller configuration reduces rotational mass while supporting efficient hydraulic performance and smooth water delivery throughout the operating range.
The construction incorporates AISI 316 stainless steel for the pump and motor components, providing corrosion resistance in submerged environments. A compact 3-inch design allows installation in boreholes with a minimum diameter of 76 mm, while integrated protections including dry-running, overload, and voltage safeguards ensure dependable long-term operation.
FEATURES
- Polyamide impeller configuration supporting efficient hydraulic operation
- DC-powered operation compatible with solar energy systems
- Integrated MPPT optimizing energy utilization from solar input
- Built-in dry-running protection preventing operational damage
- Overload and voltage protection ensuring safe motor operation
- Compact 3-inch construction suitable for narrow borehole installations
- AISI 316 stainless steel pump and motor construction for corrosion resistance
- Integrated non-return valve preventing reverse flow in vertical installations
SPECIFICATIONS
| Max Flow | 133 L/Min |
| Max Head | 100 m |
| Power | 2500 W DC |
| Rated Current | 12.5 Amps |
| Suitable For | Pressure supply |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum water flow rate and head pressure of this pump?
Achieving strong system delivery, the Grundfos SQF 5-70 N develops a maximum flow rate of 133 L/Min and a maximum dynamic head of 100 m across its operating curve.
How much electricity and current does this pump draw under load?
Running on standard line voltage power supplies, the SQF 5-70 N is driven by a 2500 W motor rated at 12.5 Amps.
What materials make this pump durable against corrosion and wear?
High-grade AISI 316 components in the SQF-5-70-N protect internal passages against corrosive fluid contact.
What primary fluid transfer and circulation roles are designated for this pump?
Primary tasks for the SQF 5 70 N include subterranean groundwater lifting using off-grid renewable power arrays for remote livestock watering, delivering efficient water management across residential and rural systems.
What warranty coverage applies to this pump for long-term peace of mind?
You receive a certified 2 Years manufacturer warranty with the SQF/5/70/N, giving you long-term protection and support.
