SKU: 99612829

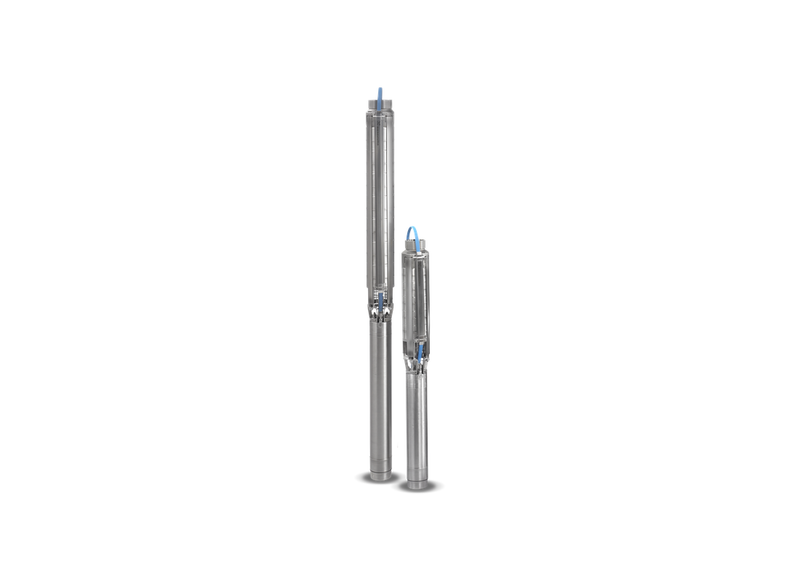

Grundfos SQF 5A-3 N Stainless Steel High Flow Solar Submersible Pump for Bulk Water Transfer with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Bulk water transfer in agricultural and off-grid environments requires high-volume solar-powered pumping, making this submersible pump suitable for borehole installations operating on DC energy. It supports applications where large quantities of water must be moved efficiently without reliance on grid electricity.
Performance reaches a maximum head of 15 m while delivering flow up to approximately 150 L/Min at lower head conditions, derived from the performance curve peak. This enables efficient handling of high-volume transfer requirements with stable output across varying demand conditions.
A multi-stage centrifugal hydraulic design with closed stainless steel impellers enables efficient high-flow operation while maintaining stable pressure characteristics. This configuration reduces hydraulic losses and ensures consistent discharge across the working range.
The construction incorporates AISI 316 stainless steel for pump, impellers, and motor components, providing corrosion resistance in submerged environments. A 4-inch design requires a minimum borehole diameter of 104 mm, while integrated protections including dry-running, overload, and voltage safeguards ensure dependable operation.
FEATURES- Closed stainless steel impeller configuration for high flow performance
- DC-powered operation compatible with solar energy systems
- Integrated MPPT maximizing solar energy utilization efficiency
- Built-in dry-running protection preventing pump damage
- Overload and voltage protection ensuring safe motor operation
- 4-inch construction suitable for larger borehole installations
- AISI 316 stainless steel hydraulic components for corrosion resistance
- Integrated non-return valve preventing reverse flow
SPECIFICATIONS
| Max Flow | 150 L/Min |
| Max Head | 15 m |
| Power | 1400 W DC |
| Rated Current | 8.4 Amps |
| Suitable For | Bulk transfer |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What kind of water volume and pressure head does this pump provide?
Achieving strong system delivery, the Grundfos SQF 5A-3 N develops a maximum flow rate of 150 L/Min and a maximum dynamic head of 15 m across its operating curve.
What kind of power supply does this pump require to run?
Running on standard line voltage power supplies, the SQF 5A-3 N is driven by a 1400 W motor rated at 5A.
How is the pump casing constructed to resist mechanical and fluid wear?
High-grade AISI 316 components in the SQF-5A-3-N protect internal passages against corrosive fluid contact.
Where is this pump commonly installed and utilized?
Primary tasks for the SQF 5A 3 N include subterranean groundwater lifting using off-grid renewable power arrays for remote livestock watering, delivering efficient water management across residential and rural systems.
Does this pump include an official manufacturer warranty?
You receive a certified 2 Years manufacturer warranty with the SQF/5A/3/N, giving you long-term protection and support.
