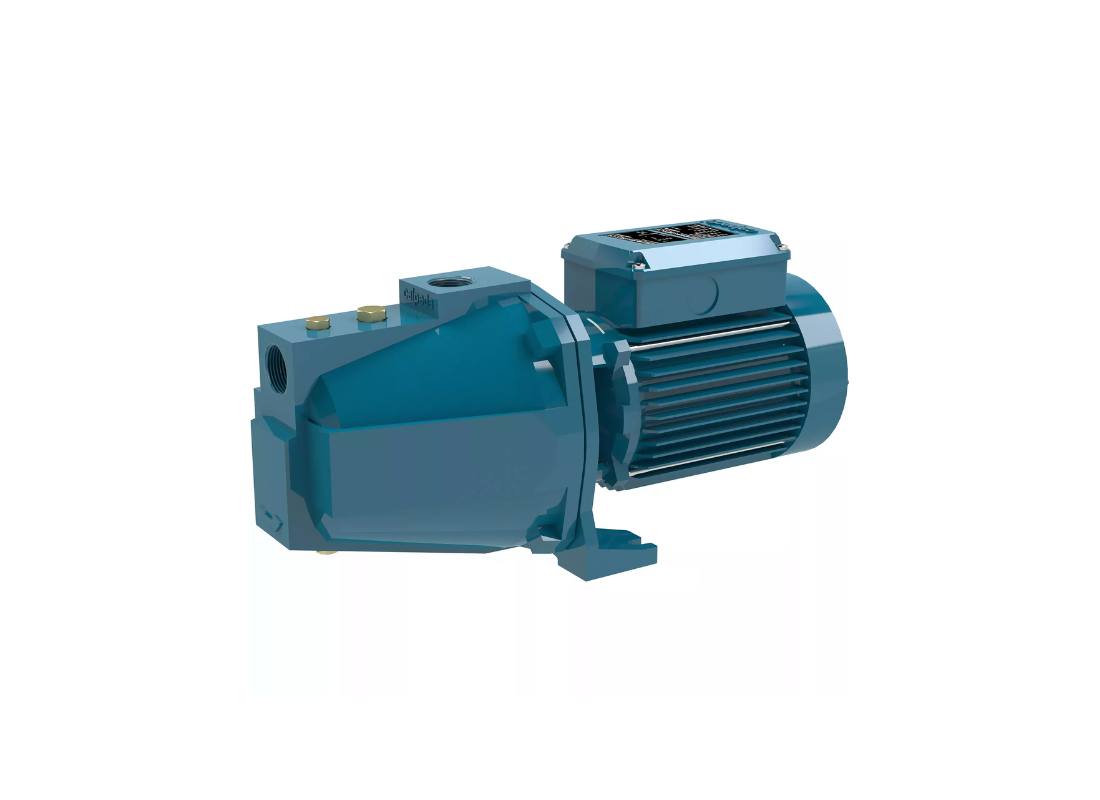

Pressure-focused shallow well extraction and utility water transfer duties can utilize the Calpeda NGM 6/18 self-priming jet pump for dependable clean water handling in residential and light utility systems. The integrated ejector arrangement assists suction lift performance while supporting irrigation supply, pressure distribution, and jet washing installations requiring elevated discharge pressure.
Hydraulic capability reaches 59 m maximum head with flow rates extending to 6 m³/h, providing stable pressure support for medium-to-high demand circulation systems. The pump is driven through a 230V single-phase induction motor operating with 2 kW maximum input power and running current of 9.2 A while maintaining approximately 2900 rpm rotational speed.
Flow circulation is maintained through a brass impeller combined with engineered Noryl diffuser and nozzle sections supporting efficient jet-assisted hydraulic transfer. The self-priming configuration assists stable suction performance during varying operating demand while maintaining controlled movement of clean and slightly dirty surface water.
Cast iron construction across the hydraulic casing and diffuser plate provides structural durability during residential and utility operating duty conditions. A carbon ceramic mechanical seal with NBR elastomer support components assists leakage control, while class F insulation and IP54 enclosure protection safeguard the motor assembly. Operating capability supports liquid temperatures up to 40°C with maximum permissible working pressure reaching 10 bar.
FEATURES- Integrated ejector arrangement supporting shallow well suction operation
- Pressure-oriented hydraulic design for elevated discharge performance
- Brass impeller supporting stable clean water circulation
- Noryl PPO-GF20 diffuser and nozzle assembly assisting hydraulic efficiency
- Close-coupled construction reducing installation alignment requirements
- Single-phase motor configuration with internal thermal protection
- Carbon ceramic seal assembly with NBR elastomer support materials
- IP54 protected motor enclosure with class F insulation specification
