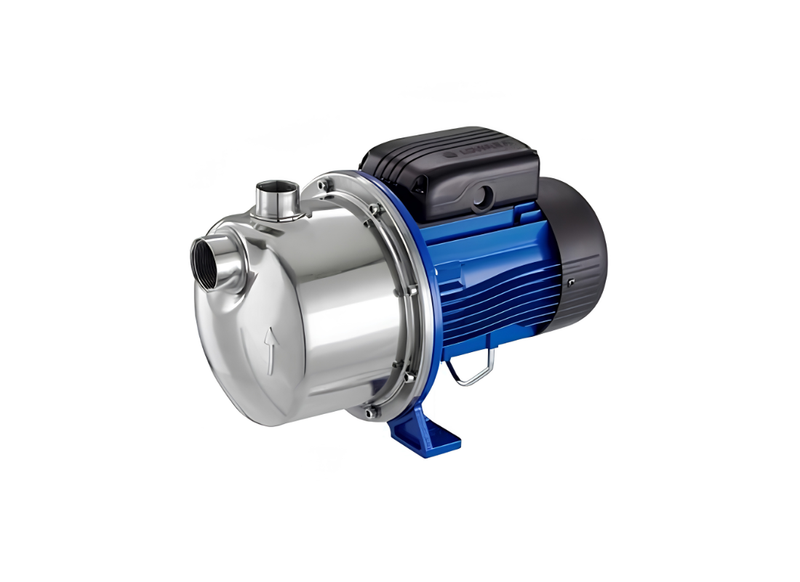

Lowara BGM5 Stainless Steel Compact Self-Priming Centrifugal Pump for Washing with Aluminium Adapter
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara BGM5 self-priming centrifugal pump is designed for domestic water supply, pressure boosting, washing systems, and clean water transfer applications where dependable self-priming operation is required. Its close-coupled hydraulic configuration with integrated ejector system assists with maintaining stable operation across residential water systems involving dissolved gases within transferred water.
Manufactured using stainless steel hydraulic components and stainless steel impeller construction, the BGM5 combines corrosion-resistant durability with efficient hydraulic performance across residential and light-duty water handling environments. The pump delivers flow rates up to 55 L/Min with maximum head performance up to 37.1 metres based on the highest non-zero operating point from the technical performance table. The single-phase motor operates on 240v power supply with maximum input power of 0.75 kW and rated current of 3.79A during operation.
The integrated ejector system supports dependable self-priming functionality while the externally ventilated asynchronous motor design assists with continuous clean water transfer and pressure boosting duties. The BGM5 incorporates motor type SM80BG/1075 with rated motor power of 0.75 kW and capacitor specification of 25 microfarads. Thermal overload protection assists with supporting reliable operation across domestic water handling applications.
The BGM5 features 32 mm inlet and 25 mm outlet connections for integration into domestic water supply systems, washing installations, and clean water transfer applications. Its compact hydraulic footprint and stainless steel construction assist with long-term operating durability across residential water handling environments. Supplied with manufacturer warranty coverage for self-priming centrifugal pump applications.
Features
- Self-priming centrifugal pump with integrated ejector system
- Stainless steel hydraulic and impeller construction
- IE2 high-efficiency single-phase motor configuration
- Thermal overload protection for reliable operation
- Suitable for domestic water supply systems
- Externally ventilated asynchronous motor design
- Reliable clean water transfer performance
- Compact close-coupled hydraulic construction
- Suitable for residential pressure boosting applications
- Designed for continuous clean water handling duties
SPECIFICATIONS
| Max Flow | 55 L/Min |
| Max Head | 37.1 m |
| Power | 0.75 kW / 240v |
| Rated Current | 4.27 Amps |
| Suitable For | Domestic Water Supply |
| Body Material | Stainless Steel AISI 304 |
| Liquid Temperature | -10°C to +40°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the stainless alloy construction defend against water corrosion and particulate erosion?
Long-term durability against corrosion and particulate erosion relies on AISI 304 stainless steel casing and impeller, with Technopolymer PA66+GF30 built-in ejector in the BGM5, supporting operating pressures up to 8 bar (PN 8).
What motor kilowatt rating and electrical voltage are required to run this single-phase unit?
Operating the motor on the BGM-5 requires a 0.55 kW electrical feed on 220–240 V, 50 Hz, single-phase drawing 3.79 A, built with IP55 weatherproof motor enclosure with automatic reset thermal overload protection.
What horizontal mounting placement is advised for this residential unit with its integrated ejector?
Surface placement on a level horizontal base is recommended for the BGM 5, where its integrated venturi ejector manages entrained air pockets.
How high can this single-stage jet pump elevate clean water across domestic runs?
Elevating clean water across domestic runs, the BGM_5 provides a peak dynamic head rating of approximately 41.5 m.
What delivery flow rate can this domestic self-priming pump provide through its discharge port?
Supplying clean water distribution, the BGM5 generates a maximum delivery flow of approximately 70 L/Min with Rp 1-1/4" (32 mm) suction and Rp 1" (25 mm) discharge threads.
