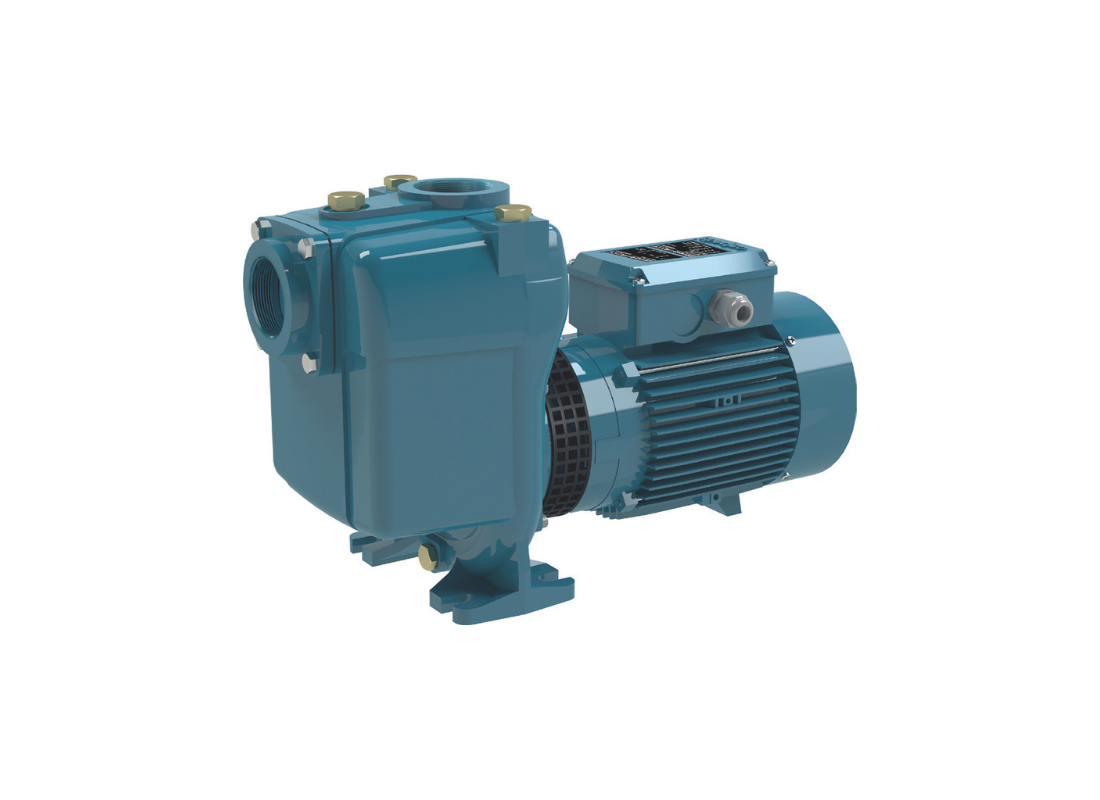

High-capacity liquid transfer systems handling clean or slightly dirty water can utilize the Calpeda A 80-170A where self-priming centrifugal operation is required. The hydraulic arrangement is suited to applications involving intermittent suction conditions or pipelines that may drain between operating cycles.
Maximum hydraulic flow reaches 66 m³/h while discharge head extends to 33.6 m, providing strong transfer capability across medium-to-large circulation layouts. The pump operates through a three-phase 415V induction motor rated at 7.5 kW rated output power with operating current of 8.3 A and rotational speed near 2900 rpm.
An open cast iron impeller allows suspended solids up to 10 mm to pass through the hydraulic section without causing internal flow restriction. The self-priming configuration assists automatic suction recovery during restart conditions, supporting dependable continuous-duty operation across fluctuating liquid levels.
Cast iron manufacture is utilized across the pump casing, cylindrical suction body, lantern bracket, and impeller assembly for structural durability in demanding service environments. Shaft sealing incorporates carbon ceramic mechanical seal faces with NBR elastomer support components, while the motor assembly integrates class F insulation together with IP54 enclosure protection. Liquid temperature capability covers -10°C to 90°C with maximum permissible working pressure up to 6 bar.
FEATURES- Self-priming centrifugal arrangement supporting automatic suction restoration
- Open cast iron impeller with suspended solids passage capability up to 10 mm
- Large G 3 hydraulic connections supporting high transfer capacity
- Close-coupled pump structure simplifying installation layout
- Three-phase induction motor designed for continuous-duty operation
- Carbon ceramic shaft seal assembly with NBR elastomer components
- IP54 motor enclosure protection combined with class F insulation
- Cast iron hydraulic construction across major pump components
