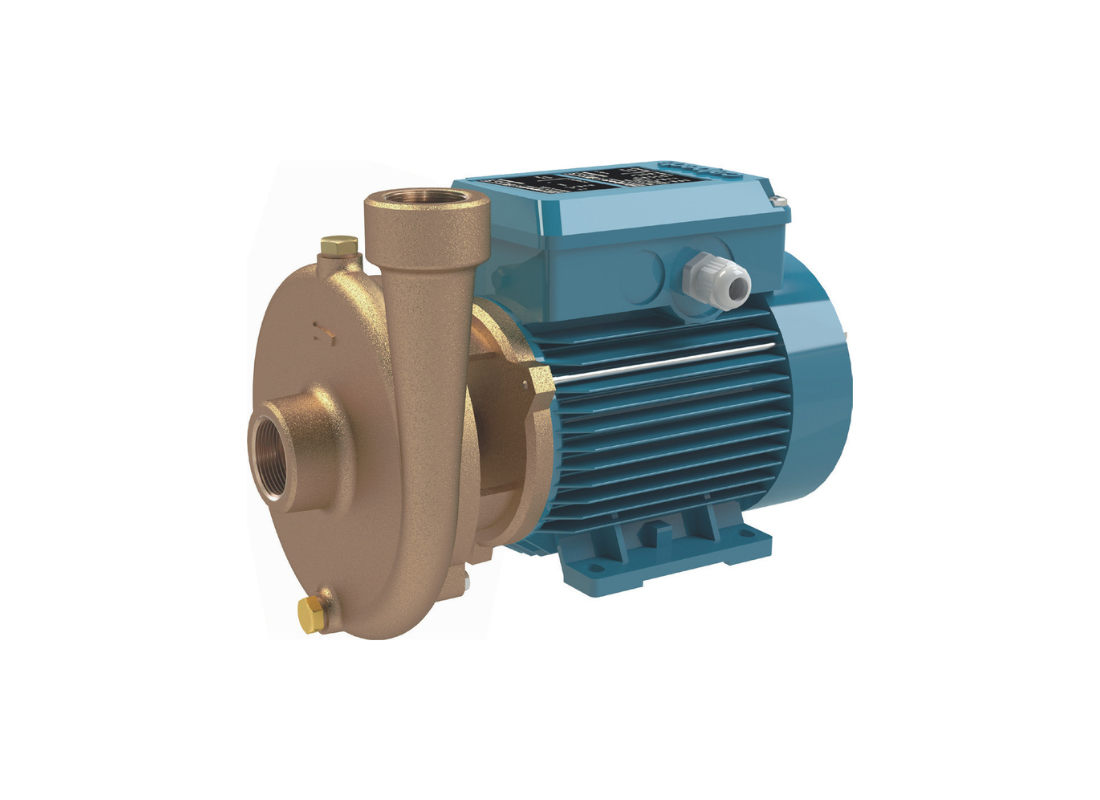

Utility liquid movement involving moderately contaminated fluids or emulsions can be handled by the Calpeda BCM 20 through its bronze open-impeller centrifugal configuration. The hydraulic arrangement supports unrestricted circulation behaviour within compact service systems where corrosion-resistant wetted materials are preferred.
Maximum flow reaches 4.8 m³/h while discharge head extends to 12.3 m, supporting balanced hydraulic operation across low-to-medium pressure circulation systems. Power transmission is supplied through a 230V single-phase induction motor utilizing 0.57 kW maximum input power with operating current of 2.8 A at approximately 2900 rpm.
Stable liquid passage is maintained through an open impeller capable of handling suspended particles up to 4 mm without excessive restriction inside the hydraulic section. The centrifugal flow path assists dependable movement of lightly contaminated liquids while maintaining consistent operating behaviour.
Bronze construction is incorporated throughout the hydraulic body and wetted components to support service conditions requiring corrosion-resistant materials. Shaft sealing is controlled through carbon ceramic seal faces with NBR elastomer support elements, while the motor assembly incorporates capacitor-start operation, thermal overload protection, IP54 enclosure protection, and class F insulation. Operating conditions support liquid temperatures ranging from -10°C to 90°C with working pressure capability up to 6 bar.
FEATURES- Bronze wetted hydraulic components supporting corrosion-resistant service operation
- Open impeller arrangement allowing suspended particle handling up to 4 mm
- Close-coupled centrifugal structure minimizing installation footprint requirements
- Single-phase induction motor configured for 230V operating supply conditions
- Integrated thermal overload protection supporting motor operating reliability
- Carbon ceramic shaft sealing arrangement with NBR elastomer support
- IP54 protected enclosure assisting resistance against environmental exposure
- Class F insulated motor assembly supporting controlled thermal behaviour
