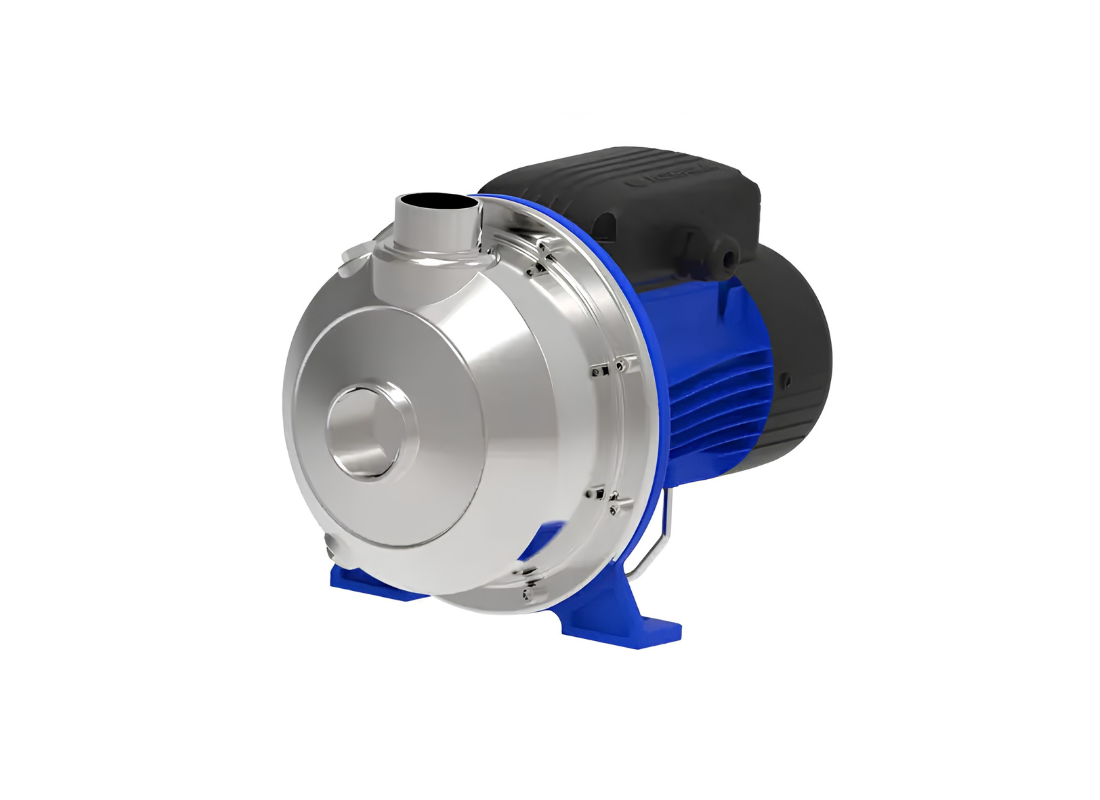

Lowara CO 350/03 Stainless Steel Continuous Centrifugal Pump for Water Circulation with Open Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara CO350/03 is engineered for professionals requiring reliable liquid movement in civil and industrial environments. This unit serves as a primary solution for process water handling, specifically designed to manage clean or slightly contaminated fluids containing suspended solids. Its build ensures steady operation in demanding settings where corrosion resistance is essential, providing a stable flow for cooling circuits and industrial washing systems.
Built with high-grade AISI 316L stainless steel, this pump features a maximum capacity of Max Head 6.8 m and Max Flow 250 L/Min. The drive system utilizes a 0.64 kW / 415v three-phase motor, optimized for continuous duty. The plumbing configuration requires 40mm inlet and 32mm outlet connections, ensuring integration with existing hydraulic infrastructure while maintaining an 8 bar pressure tolerance.
Technological precision defines the CO series, utilizing an open impeller design that allows for the passage of solids up to 11 mm without clogging. The close-coupled architecture reduces the physical footprint, while the TEFC asynchronous motor provides efficient, externally ventilated performance. Thermal stability is maintained across a broad temperature range of -10°C to +110°C, supported by FKM elastomers.
Installation is streamlined through standard Rp threaded connections. The unit is protected by an IP55 rated enclosure, ensuring durability against dust and moisture ingress. Users should note that three-phase models require external overload protection. The robust galvanized steel support foot secures the assembly, minimizing vibration and ensuring alignment during long-term service cycles in industrial applications.
Features:
- AISI 316L stainless steel seal housing and shaft extension for chemical resistance
- Carbon/Ceramic mechanical seal faces standard for extended wear life
- Compatible with a wide range of process liquids up to 110 degrees Celsius
- Galvanized steel support base designed for simplified mounting and vibration reduction
- IP55 protection rating against dust and low-pressure water jet ingress
- Hydraulic performance testing according to ISO 9906:2012 Grade 3B standards
SPECIFICATIONS
| Max Flow | 250 L/Min |
| Max Head | 6.8 m |
| Power | 0.64 kW / 415v |
| Rated Current | 1.46 Amps |
| Suitable For | Industrial Water Handling |
| Body Material | AISI 316L Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 40 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Where is horizontal surface mounting recommended for this open-impeller transfer unit with drainage?
Surface floor mounting on a horizontal rigid foundation base is recommended for the CO350/03, installed with an integrated layout and proper floor drainage.
What total dynamic head is produced by this open-impeller industrial transfer unit?
Circulating liquids with suspended particulates, the CO350-03 achieves a maximum dynamic head of approximately 9.5 m across its operating curve.
What peak delivery flow volume and connection port threads apply to this open-impeller transfer unit?
Open-impeller fluid transfer is powered by the CO 350 03, discharging a maximum water flow rate of approximately 300 L/Min via Rp 1-1/2" (40 mm) suction and Rp 1-1/4" (32 mm) discharge ports.
What metallurgy and open impeller construction allow this industrial pump to transport suspended solids?
Suspended solids passage and corrosion defense rely on alloy metallurgy materials in the CO_350_03, featuring AISI 316L stainless steel casing and open impeller, with ceramic/carbon/FPM mechanical seal capable of managing suspended solids up to 11 mm in diameter.
What electrical power and three-phase supply voltage drive this open-impeller transfer unit?
Driving the rotating assembly of the CO350/03 relies on a 0.37 kW motor on 380–415 V, 50 Hz, three-phase drawing 1.46 A, featuring IP55 dust and water spray protection, Class F insulation.
