Roll over image to zoom
SKU: CO350/05

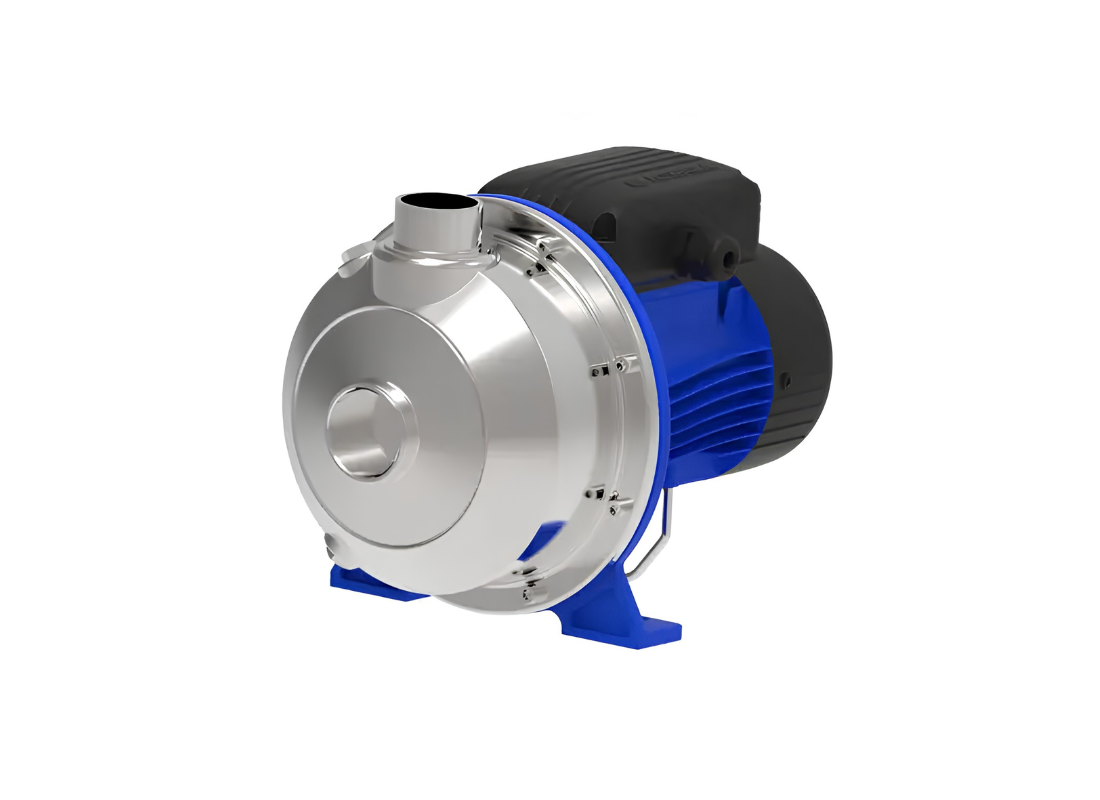

Lowara CO 350/05 Stainless Steel High-Performance Centrifugal Pump for Fluid Handling with Open Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
This centrifugal pump serves industrial facilities and civil systems where precise fluid movement is essential. Designed to manage clean or slightly aggressive liquids, it addresses the requirement for consistent circulation in temperature-controlled environments or process cooling loops. The architecture is engineered for reliability in demanding settings, making it an appropriate choice for technicians maintaining complex water transfer infrastructure.
Hydraulic capacity reaches a Max Head 9.2 m and a Max Flow 350 L/Min, providing steady output for mid-range circulation tasks. The unit operates on a 0.79 kW / 415v motor, ensuring power efficiency within its intended operational envelope. Engineered to handle fluids between -10°C and +110°C, the assembly integrates a 40mm inlet and 32mm outlet, maintaining strict compatibility with standardized industrial plumbing installations.
Mechanical integrity is built upon a full AISI 316L stainless steel hydraulic body and an open impeller design, facilitating the passage of small suspended solids. This material selection minimizes risk from chemical corrosion while sustaining structural rigidity. The TEFC motor configuration promotes longevity through effective heat dissipation, protecting the internal asynchronous components during periods of continuous operation.
Installation is streamlined for standard piping networks, with the compact footprint allowing for integration into tight equipment layouts. The IP55 protection rating shields the motor from dust and water jets, ensuring external durability in variable environments. Plumbers and site engineers benefit from the straightforward thread-based connections, which allow for quick system commissioning and simplified maintenance procedures for the end user.
Features:
- TEFC asynchronous squirrel cage motor design for environmental protection
- FKM elastomer seals providing chemical and thermal resistance to 110°C
- Carbon and ceramic mechanical seal faces for long-term wear mitigation
- Galvanized steel support foot for stable, low-vibration floor mounting
- Non-clogging open impeller profile allowing handling of small suspended solids
- IP55 enclosure rating safeguarding internal circuitry against dust and moisture
SPECIFICATIONS
| Max Flow | 350 L/Min |
| Max Head | 9.2 m |
| Power | 0.79 kW / 415v |
| Rated Current | 1.56 Amps |
| Suitable For | Industrial Water Handling and Cooling Systems |
| Body Material | AISI 316L Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 40 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What peak dynamic elevation head does this open-impeller industrial water pump achieve?
Overcoming elevation resistance in industrial washing circuits, the CO350/05 produces a peak dynamic head of approximately 12.0 m.
What maximum water flow rate can this open-impeller industrial pump deliver through its discharge port?
Parts washing and liquid circulation systems receive a peak delivery flow of approximately 350 L/Min from the CO350-05 with Rp 1-1/2" (40 mm) suction and Rp 1-1/4" (32 mm) discharge connections.
How does the stainless alloy open impeller resist abrasive particulate wear and fluid corrosion?
Abrasive particulate resilience without fluid corrosion is provided by alloy metallurgy materials in the CO 350 05, featuring AISI 316L stainless steel casing and open impeller, with ceramic/carbon/FPM mechanical seal handling suspended solids up to 11 mm in diameter.
What motor kilowatt power and three-phase electrical feed are needed for this open-impeller water pump?
Supplying electricity to the CO_350_05 requires a 0.55 kW three-phase motor connection on 380–415 V, 50 Hz, three-phase pulling 1.56 A, engineered with IP55 dust and water spray protection, Class F insulation.
How should this open-impeller water pump be anchored on a solid horizontal foundation base?
Close-coupled horizontal mounting on a rigid concrete base is specified for the CO350/05, installed with an integrated setup to facilitate dirty liquid drainage.
