Roll over image to zoom
SKU: CO350/09

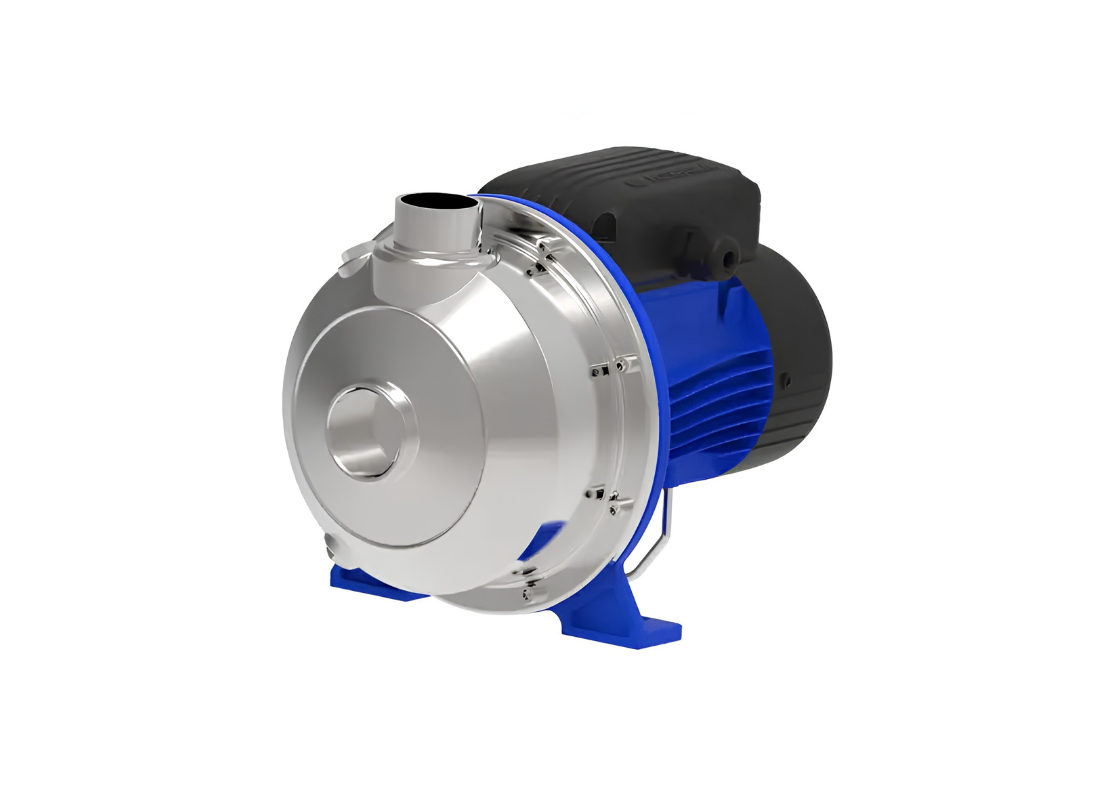

Lowara CO 350/09 Stainless Steel Reliable Centrifugal Pump for Process Water with Open Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Engineered for civil and industrial environments where reliable movement of process water is required, the Lowara CO 350/09 stands as a purpose-built solution for demanding circulation needs. This unit effectively addresses the challenge of moving moderate-flow fluids in space-constrained layouts. Its robust design is specifically suited for cooling systems, washing processes, and industrial fluid transfer scenarios where structural integrity and fluid path efficiency are non-negotiable requirements for site operators and facility managers.
The pump features a maximum capacity of Max Head 12.7 m and Max Flow 350 L/Min. Designed for operational versatility, it handles temperatures ranging from -10°C to +110°C, ensuring stability across diverse process environments. The unit consumes a maximum power of 1.08 kW / 415v and utilizes an inlet size of 40 mm and an outlet size of 32 mm, enabling seamless integration into established pipework configurations within industrial plants and civil infrastructure facilities.
Construction relies heavily on high-grade AISI 316L stainless steel for the hydraulic body and rotating components, preventing internal corrosion during continuous operation. The system employs a close-coupled centrifugal configuration powered by an externally ventilated, asynchronous squirrel-cage motor. This architecture ensures long-term reliability even when managing fluids with minor suspended solids up to 11 mm in diameter, providing consistent flow performance while maintaining high motor efficiency under heavy-duty loads.
Installation is streamlined through the threaded ISO 7 piping connections, while the IP55-rated enclosure protects the internal electrical components from environmental dust and water ingress. The pump includes a galvanised steel support foot for vibration dampening and structural mounting. Users should note that thermal overload protection must be configured externally via the installation wiring to ensure complete safety and prevent damage during unexpected electrical fluctuations or site-specific operational stresses.
Features:
- AISI 316L stainless steel construction for all wetted components
- Mechanical seal using FKM elastomers for chemical compatibility
- Asynchronous motor designed for continuous IE3-level efficiency
- Certified hydraulic performance compliant with ISO 9906:2012 standards
- Suitable for liquids containing particles up to 11 mm in diameter
- Galvanized steel support base included for installation stability
- Enclosed fan-cooled (TEFC) motor with IP55 protection rating
SPECIFICATIONS
| Max Flow | 350 L/Min |
| Max Head | 12.7 m |
| Power | 1.08 kW / 415v |
| Rated Current | 2.15 Amps |
| Suitable For | Industrial Cooling and HVAC Systems |
| Body Material | AISI 316L Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 40 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which metallurgical alloy grades defend this industrial cooling pump against corrosive chemical attack?
Fluid pathway protection against corrosion and erosion relies on alloy materials in the CO350/09, featuring AISI 316L stainless steel casing and open impeller, with ceramic/carbon/FPM mechanical seal built to accommodate suspended solids up to 11 mm in diameter.
What electrical power draw and three-phase supply voltage run this industrial cooling pump?
Operating the three-phase motor on the CO350-09 requires a 0.9 kW feed across 380–415 V, 50 Hz, three-phase drawing 2.15 A, built with IP55 dust and water spray protection, Class F insulation.
Where should this industrial cooling open-impeller pump be sited on a horizontal foundation base?
Securing the CO 350 09 on a flat horizontal foundation ensures vibration-free operation, featuring an integrated layout with proper clearance and drainage.
What dynamic elevation head does this industrial cooling open-impeller pump generate?
Fluid elevation in parts washing loops relies on the CO_350_09, which generates a peak dynamic head of approximately 15.7 m.
What peak water flow capacity does this industrial cooling open-impeller pump provide across its outlet?
Industrial washing circuits rely on the CO350/09, which discharges a peak delivery flow rate of approximately 400 L/Min across its Rp 1-1/2" (40 mm) suction and Rp 1-1/4" (32 mm) discharge ports.
