SKU: CO350/11

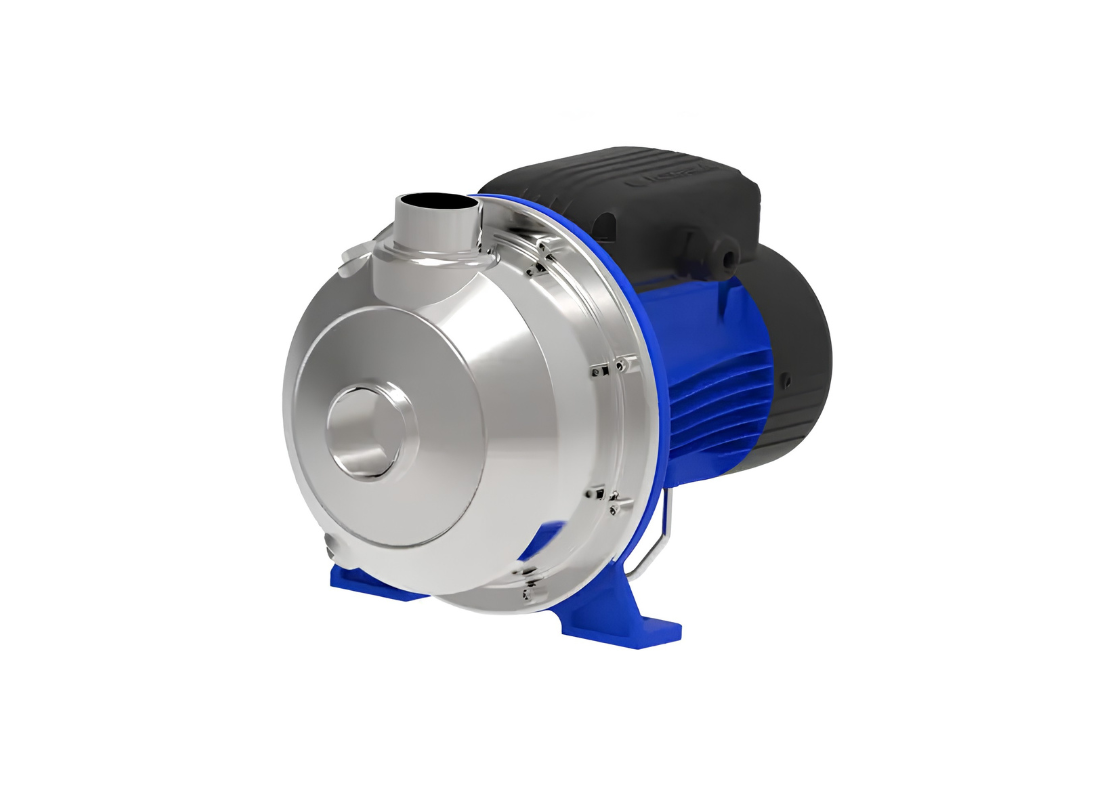

Lowara CO 350/11 Stainless Steel Three-Phase Centrifugal Pump for Wash Systems with Open Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
This three-phase centrifugal pump is designed for industrial and civil process water handling where suspended solids require a reliable, clog-resistant solution. Engineered for demanding environments, this system ensures consistent liquid movement for cooling circuits, wash-down systems, and general industrial water transfer tasks where particulate handling is a primary requirement.
Built to withstand aggressive fluids, the pump operates with a capacity up to Max Head 14.3 m and Max Flow 450 L/Min. It utilizes a 1.61 kW / 415v three-phase motor assembly, housed in an IP55 rated enclosure. The hydraulic components are constructed from corrosion-resistant AISI 316L stainless steel, supporting fluid temperatures between -10°C and +110°C.
The technical design features an open impeller configuration specifically shaped to manage suspended solids up to 11 mm. It operates as a close-coupled unit, minimizing vibration and footprint while maintaining precise hydraulic alignment. The mechanical seal assembly utilizes FKM elastomers to ensure long-term integrity in high-temperature, continuous-duty industrial applications.
Installation is simplified through 40 mm inlet and 32 mm outlet threaded connections. The unit is designed for permanent mounting, supported by a galvanized steel foot that provides stability across varying operational loads. The motor is protected against thermal conditions, requiring external overload protection to be fitted by the installer during site setup to maintain standard operating performance.
Features:
- Construction utilizes AISI 316L stainless steel for wetted components
- Suitable for fluids with suspended solids up to 11 mm in diameter
- Asynchronous squirrel cage motor with TEFC cooling system
- Mechanical seals fitted with high-integrity FKM elastomers
- Compliant with ISO 9906:2012 Grade 3B hydraulic standards
- Designed for industrial working pressures up to 8 bar (PN 8)
SPECIFICATIONS
| Max Flow | 450 L/Min |
| Max Head | 14.3 m |
| Power | 1.61 kW / 415v |
| Rated Current | 2.81 Amps |
| Suitable For | Industrial Water Handling |
| Body Material | AISI 316L Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 40 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What motor kilowatt rating and three-phase electrical feed drive this open-impeller process pump?
Electrical parameters for running the CO350/11 specify a 1.1 kW drive on 380–415 V, 50 Hz, three-phase with a nominal current of 2.81 A and IP55 dust and water spray protection, Class F insulation.
How should this open-impeller process pump be secured on a horizontal floor to ensure drainage?
Compact industrial placement is ensured for the CO350-11 when bolted to a rigid horizontal base with an integrated layout and washdown drainage.
What total dynamic head can this open-impeller industrial process pump achieve?
Delivering steady fluid elevation, the CO 350 11 attains a maximum dynamic head rating of approximately 17.3 m during service.
What maximum flow volume does this open-impeller process pump discharge through its outlet pipe?
Bulk liquid transfer across commercial treatment loops is driven by the CO_350_11, delivering a maximum flow rate of approximately 450 L/Min through Rp 1-1/2" (40 mm) suction and Rp 1-1/4" (32 mm) discharge connections.
How do the stainless alloy wet end components and open impeller withstand aggressive fluid corrosion?
Reliable metallurgical endurance against chemical corrosion during dirty water transfer is ensured by alloy materials in the CO350/11, featuring AISI 316L stainless steel casing and open impeller, with ceramic/carbon/FPM mechanical seal for suspended solids up to 11 mm in diameter.
