SKU: CO500/22

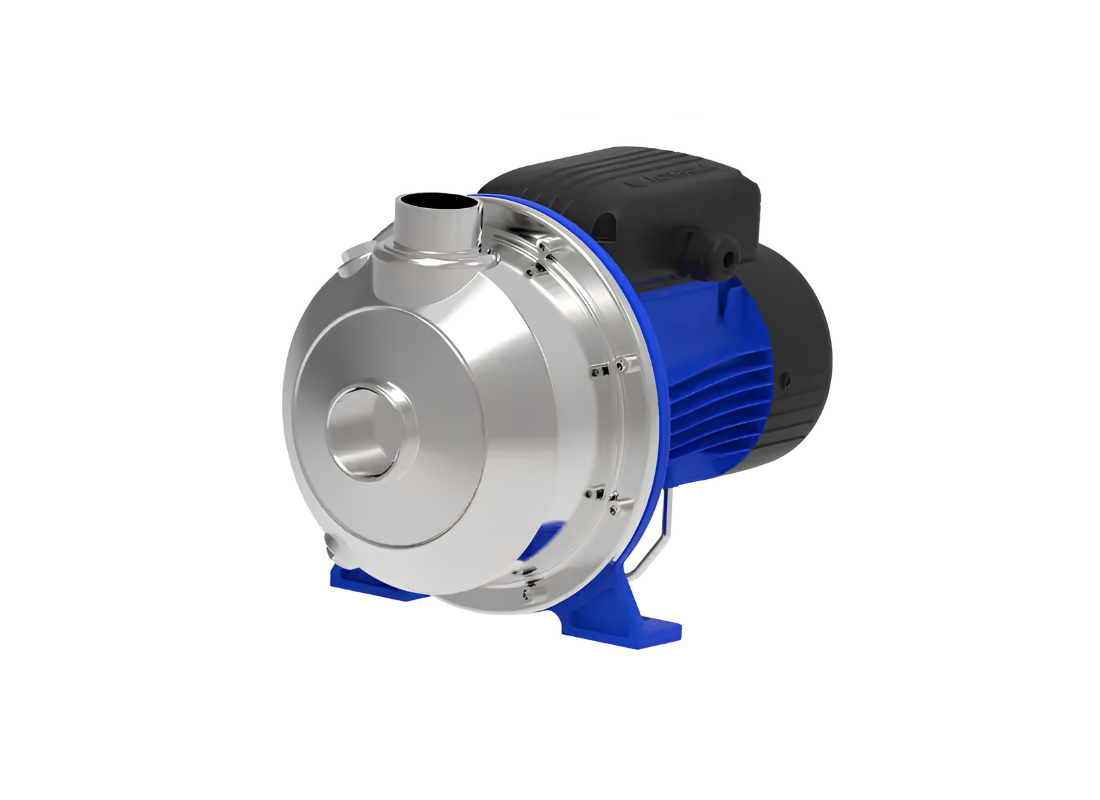

Lowara CO 500/22 Stainless Steel Efficient Centrifugal Pump for Industrial Washing with Open Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Engineered for industrial process water and civil liquid handling, the Lowara CO500/22 delivers consistent results in demanding environments where efficiency and material longevity are essential. This horizontal centrifugal pump excels in systems requiring the movement of moderately loaded liquids, making it a reliable solution for cooling systems and facility water supply networks. Designed to accommodate liquids containing suspended solids up to 20 mm, the system ensures seamless operation within varied industrial configurations, providing a stable foundation for technical water handling tasks across diverse facility requirements.
The system achieves high-performance operation, featuring a maximum capacity of Max Head 16.6 m and Max Flow 750 L/Min. Equipped with a 2.66 kW motor, the pump maintains operational efficiency during continuous use. With an inlet size of 50 mm and an outlet size of 40 mm, it integrates into existing infrastructure with precision. Its hydraulic design is crafted to sustain performance levels in environments where fluid movement is critical, ensuring effective pressure management and flow delivery consistent with professional industrial standards for liquid transfer technology.
Constructed from AISI 316L stainless steel, the unit provides high resistance to corrosion, significantly extending service life in intensive duty cycles. The open impeller configuration is engineered to handle suspended particles without risking blockages, supported by an asynchronous, totally enclosed fan-cooled (TEFC) motor. This motor configuration ensures thermal stability and sustained output, while the mechanical seal technology allows for reliable operation across a wide liquid temperature range of -10°C to +110°C, maintaining fluid integrity throughout the operation.
Installation is simplified through the inclusion of a sturdy support foot, while the threaded connections ensure a secure fit for standard industrial plumbing. The unit is built to withstand a maximum working pressure of 8 bar, ensuring stability under variable loads. Safety and maintenance access are addressed through the external design, providing ease of connectivity and long-term technical reliability. The pump is fully compliant with ISO 9906:2012 grade 3B standards, guaranteeing performance consistency across its intended service range in civil and industrial plant installations.
Features:
- AISI 316L stainless steel housing for fluid compatibility
- Totally Enclosed Fan Cooled (TEFC) motor design
- Internal FKM elastomers for chemical resistance
- IP55 environmental protection against dust and jets
- Galvanized steel base for vibration-damped mounting
- Designed for liquids between -10°C and +110°C
- Hydraulic performance to ISO 9906:2012 Grade 3B
SPECIFICATIONS
| Max Flow | 750 L/Min |
| Max Head | 16.6 m |
| Power | 2.66 kW / 415v |
| Rated Current | 4.78 Amps |
| Suitable For | Industrial Liquid Transfer |
| Body Material | AISI 316L Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 50 mm |
| Outlet Size | 40 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum water delivery flow rate is supported by this large open-impeller transfer pump?
Parts washing and liquid circulation systems receive a peak delivery flow of approximately 800 L/Min from the CO500/22 with Rp 2" (50 mm) suction and Rp 1-1/2" (40 mm) discharge connections.
Which stainless alloy materials and seal elastomers ensure durability against chemical attack from solids?
Abrasive particulate resilience without fluid corrosion is provided by alloy metallurgy materials in the CO500-22, featuring AISI 316L stainless steel casing and open impeller, with ceramic/carbon/FPM mechanical seal handling suspended solids up to 20 mm in diameter.
What motor kilowatt power and three-phase electrical feed operate this large open-impeller pump?
Three-phase electrical input for the CO 500 22 is rated at 2.2 kW on a 380–415 V, 50 Hz, three-phase grid at 4.78 A, protected by an IP55 dust and water spray protection, Class F insulation.
How should this large open-impeller transfer pump be mounted on horizontal level flooring?
Close-coupled horizontal mounting on a rigid concrete base is specified for the CO_500_22, installed with an integrated setup to facilitate dirty liquid drainage.
What dynamic elevation head is produced by this large open-impeller transfer pump?
Overcoming elevation resistance in industrial washing circuits, the CO500/22 produces a peak dynamic head of approximately 19.6 m.
