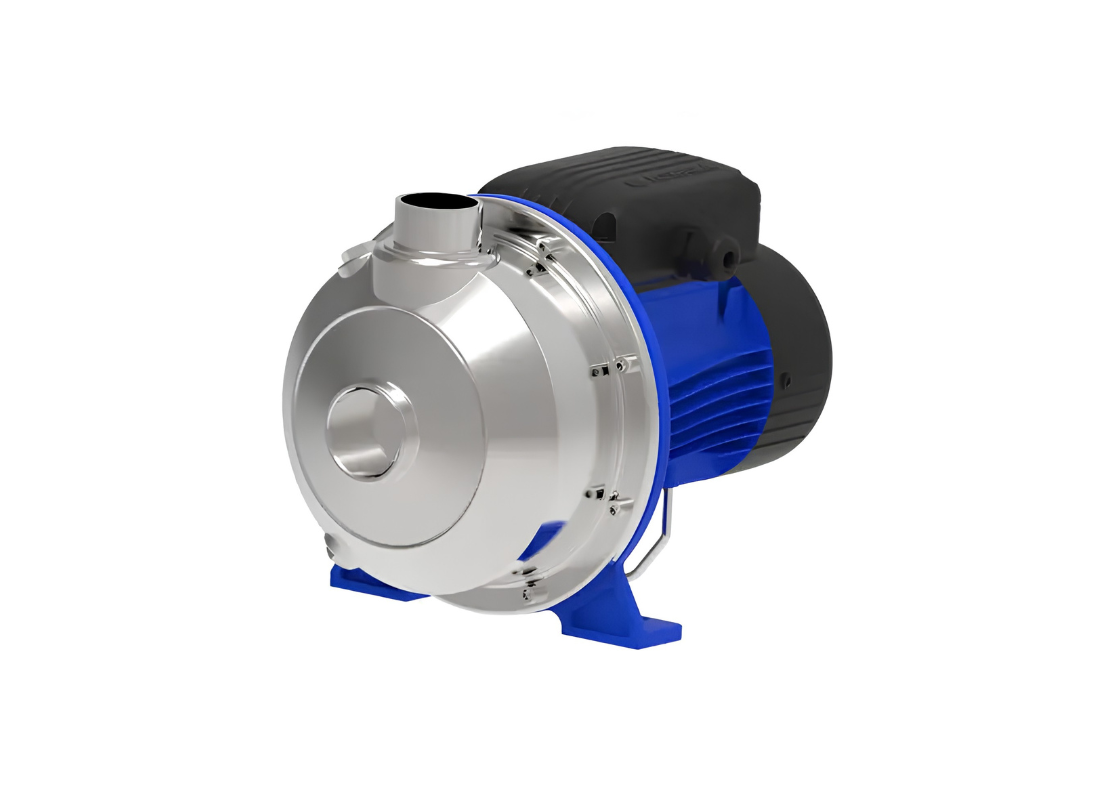

Lowara COM 350/05 Stainless Steel Resilient Centrifugal Pump for Process Circuits with Open Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Engineered for demanding civil and industrial environments, the Lowara COM 350/05 is a specialized centrifugal pump designed to handle clean liquid transfer tasks with precision. This unit serves facility managers and technical installers who require a material-compliant solution for systems where water quality is critical, such as small process circuits or circulation loops. By leveraging the corrosion-resistant properties of its 316L stainless steel build, the pump ensures operational longevity in environments where traditional cast iron or basic plastic units might succumb to fatigue. It is particularly effective for installations that necessitate a balance of consistent hydraulic output and space-efficient footprint, providing a reliable core for liquid movement in diverse technical setups.
The architecture of this pump centres on a single-impeller design that facilitates reliable flow rates across its operating range. When integrated into a properly sized circuit, it features a maximum capacity of Max Head 9.2 m and Max Flow 350 L/Min. Powering this unit is a robust 0.79 kW / 240v motor which operates with a rated current of 3.41 Amps. The inlet and outlet plumbing connections are standardized at 40 mm and 32 mm respectively, allowing for straightforward integration into existing pipework configurations without the need for complex custom adapters or non-standard fittings, thereby streamlining the installation process for professional contractors.
Technologically, the pump is built around a close-coupled asynchronous motor, which includes an enclosed design with external ventilation for improved thermal management during operation. The open impeller system is intentionally crafted to facilitate the movement of clean liquids with minimal turbulence, enhancing overall hydraulic efficiency. The inclusion of internal automatic reset thermal overload protection provides a crucial layer of safety for single-phase operation, preventing damage during unexpected overcurrent events. This combination of motor architecture and hydraulic design ensures that the pump remains highly responsive to the fluid transfer requirements of modern process water systems and circulating installations.
Installation and environmental suitability are addressed through a compact mechanical configuration supported by a galvanized steel foot for stable mounting. The internal components, including the standard FKM elastomers and carbon/ceramic mechanical seal, are selected to withstand a broad liquid temperature range from -10°C to +110°C, making the unit versatile across multiple thermal settings. The IP55 protection rating ensures the unit is well-guarded against external contaminants and moisture in industrial settings. Operators should ensure the suction and discharge lines are correctly aligned to the 40 mm and 32 mm openings to maintain the intended pressure rating of 8 bar during full-load conditions.
Features:
- Integrated automatic reset thermal overload protection for safe single-phase operation
- AISI 316L stainless steel hydraulic housing and shaft extension for corrosion resistance
- Carbon and ceramic mechanical seal interface with FKM elastomer componentry
- TEFC enclosure rated for IP55 protection against dust and low-pressure water jets
- Asynchronous squirrel cage motor design optimized for continuous duty cycles
- Galvanized steel support footing for vibration dampening and secure mounting
SPECIFICATIONS
| Max Flow | 350 L/Min |
| Max Head | 9.2 m |
| Power | 0.79 kW / 240v |
| Rated Current | 3.41 Amps |
| Suitable For | Industrial Water Treatment and Circulation |
| Body Material | AISI 316L Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 40 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What motor kilowatt power and single-phase electrical feed are needed for this water treatment pump?
Energy supply requirements for the COM350/05 specify a 0.55 kW motor powered by 220–240 V, 50 Hz, single-phase pulling 4.25 A, incorporating IP55 dust and water spray protection, Class F insulation.
How should this open-impeller water treatment pump be installed on a horizontal base for proper drainage?
Close-coupled horizontal mounting on a rigid concrete base is specified for the COM350-05, installed with an integrated setup to facilitate dirty liquid drainage.
What peak dynamic head is achieved by this open-impeller industrial water treatment pump?
Overcoming elevation resistance in industrial washing circuits, the COM 350 05 produces a peak dynamic head of approximately 12.0 m.
What peak delivery flow rate does this open-impeller water treatment pump produce through its outlet?
Parts washing and liquid circulation systems receive a peak delivery flow of approximately 350 L/Min from the COM_350_05 with Rp 1-1/2" (40 mm) suction and Rp 1-1/4" (32 mm) discharge connections.
How does the stainless alloy open impeller manage suspended solids without abrasive deterioration?
Abrasive particulate resilience without fluid corrosion is provided by alloy metallurgy materials in the COM350/05, featuring AISI 316L stainless steel casing and open impeller, with ceramic/carbon/FPM mechanical seal handling suspended solids up to 11 mm in diameter.
