SKU: COM350/07

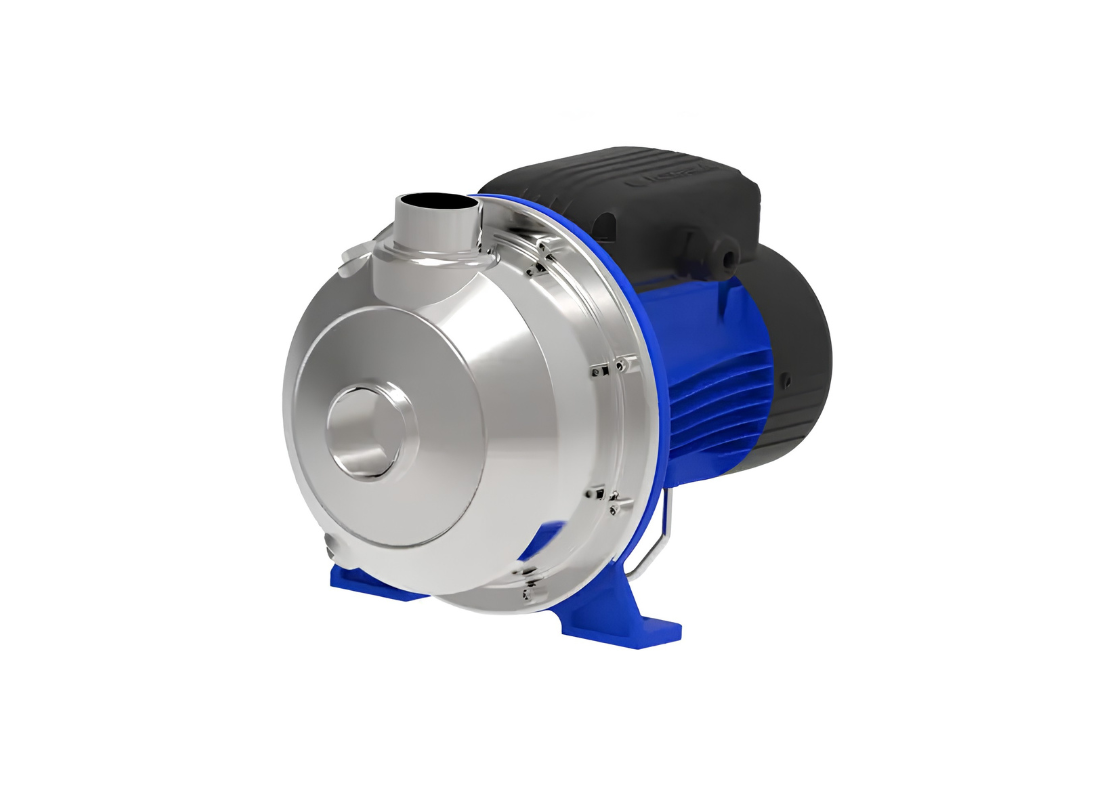

Lowara COM 350/07 Stainless Steel Close-Coupled Centrifugal Pump for Parts Washing with Open Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara COM 350/07 serves as an engineered solution for industrial and civil systems requiring consistent clean liquid transfer. It is specifically designed to handle process water, cooling liquids, and various circulating media in environments where material integrity is critical. By utilizing a close-coupled configuration, this pump provides a compact footprint suitable for installation within tight machine housings or restricted utility areas.
Built for durability, the unit achieves a maximum capacity of Max Head 11.2 m and Max Flow 350 L/Min. This performance is supported by an asynchronous, TEFC motor with a power rating of 0.96 kW / 240v. The hydraulic components are manufactured from AISI 316L stainless steel to resist oxidation and support the transfer of fluids at temperatures ranging from -10°C to +110°C, ensuring stability under variable operational conditions.
Central to its operation is an open impeller system featuring four pressed vanes, which allows for the passage of suspended solids up to 11 mm. This design minimizes the risk of clogging when managing non-homogeneous liquids. The mechanical seal assembly, standard with carbon/ceramic faces and FKM elastomers, protects the motor assembly from fluid ingress, while the external ventilation system maintains thermal efficiency during extended duty cycles.
Installation is facilitated by threaded 40mm inlet and 32mm outlet ports, ensuring compatibility with standard pipework. The inclusion of an automatic reset thermal overload protector provides integrated safety for single-phase electrical circuits. With a robust adapter constructed from corrosion-resistant aluminium and a galvanised steel support foot, the assembly ensures vibration-dampened mounting in fixed process installations.
Features:
- Constructed with AISI 316L stainless steel hydraulic housing and disc components
- FKM elastomers fitted as standard for chemical compatibility
- IP55 rated motor enclosure for dust and low-pressure water jet protection
- Automatic reset thermal overload protection integrated for 240v circuits
- Galvanised steel support base for secure fixed-position installation
- TEFC motor design optimized for forced air cooling in continuous operation
- Hydraulic performance tested according to ISO 9906:2012 Grade 3B standards
SPECIFICATIONS
| Max Flow | 350 L/Min |
| Max Head | 11.2 m |
| Power | 0.96 kW / 240v |
| Rated Current | 4.22 Amps |
| Suitable For | Commercial Food Processing, Industrial Parts Washing, and Water Purification Systems |
| Body Material | AISI 316L Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 40 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What horizontal surface placement guidelines apply to this food processing unit to ensure drainage?
Installation on a level horizontal floor in industrial wash areas is recommended for the COM350/07, incorporating an integrated foundation design and drainage.
What maximum dynamic elevation head does this commercial food processing pump produce?
Operating across wastewater transfer duties, the COM350-07 maintains a maximum dynamic elevation head capability of approximately 13.7 m.
What water flow volume and suction discharge connection threads apply to this food processing unit?
Fluid distribution with suspended solids utilizes the COM 350 07, outputting a maximum flow volume of approximately 375 L/Min through Rp 1-1/2" (40 mm) suction and Rp 1-1/4" (32 mm) discharge threads.
What materials are engineered into the open impeller and casing to resist chemical attack from solids?
Industrial washing durability and chemical attack resistance rely on alloy metallurgy materials in the COM_350_07, featuring AISI 316L stainless steel casing and open impeller, with ceramic/carbon/FPM mechanical seal rated for suspended solids up to 11 mm in diameter.
What single-phase supply voltage and electrical power input drive this food processing pump?
Driving the hydraulic assembly of the COM350/07 mandates a 0.75 kW motor input on 220–240 V, 50 Hz, single-phase at 4.67 A, supported by IP55 dust and water spray protection, Class F insulation.
