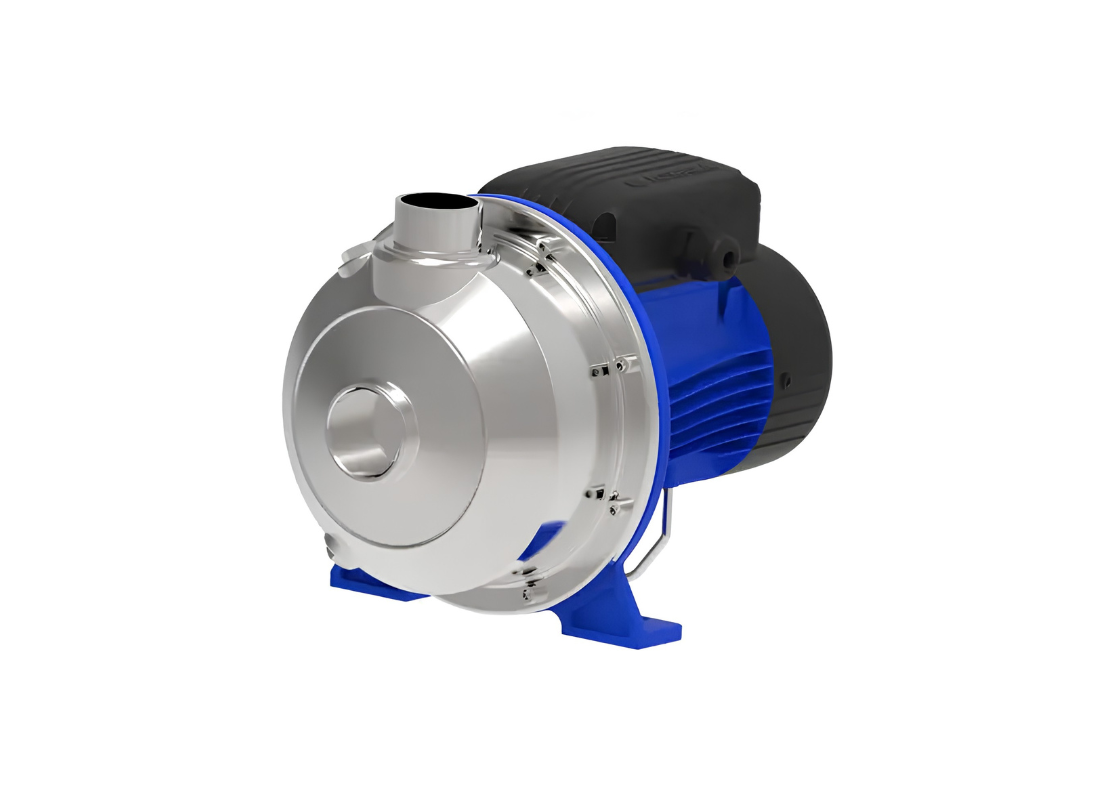

Lowara COM 350/09 Stainless Steel Durable Centrifugal Pump for Industrial Washing with Open Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Engineered for precise fluid movement in demanding civil and industrial environments, the Lowara COM-350/09 serves applications requiring consistent flow management of non-aggressive liquids. This close-coupled unit is designed for users needing to move process water or handle moderate volumes where standard equipment might falter. By focusing on direct-drive simplicity and compact geometry, it addresses the space constraints commonly found in modern plant rooms and agricultural supply stations, ensuring integration is straightforward for technicians and system operators alike.
The pump exhibits a hydraulic performance reaching a Max Head 12.7 m and a Max Flow 400 L/Min. Equipped with a 1.19 kW / 240v motor, the design balances electrical input with the output required for high-volume circulation. Built from durable AISI 316L stainless steel, the casing and internal hydraulic components provide compatibility with fluid temperatures ranging from -10°C up to +110°C, making it a versatile asset for thermal-sensitive liquid movement projects.
Construction relies on an open impeller design, facilitating the passage of small suspended solids, which prevents blockages often seen in closed-channel designs. The pump features an asynchronous, TEFC motor with integrated automatic reset thermal protection for continuous duty cycles. Mechanical sealing is managed by carbon/ceramic faces and FKM elastomers, providing a reliable barrier against leakage while maintaining efficiency across varying operational pressures up to 8 bar.
Plumbing installation is streamlined through 40mm inlet and 32mm outlet connections, designed to fit within established piping layouts. The unit includes a galvanized steel support foot for vibration damping and structural stability when floor-mounted. It is rated IP55, ensuring that the motor components remain protected against moisture and dust ingress in diverse environmental conditions, and is suitable for permanent installation in both horizontal and fixed-line pumping configurations.
Features:
- Integrated 30 ?F capacitor configuration for reliable start-up
- AISI 316L stainless steel liquid-contacting surfaces
- IP55 ingress protection rating for moisture resistance
- External ventilation for TEFC motor cooling efficiency
- Capable of handling fluid temperatures up to 110°C
- Designed for 50 Hz power frequency network operation
SPECIFICATIONS
| Max Flow | 400 L/Min |
| Max Head | 12.7 m |
| Power | 1.19 kW / 240v |
| Rated Current | 5.23 Amps |
| Suitable For | Industrial Washing and Water Treatment |
| Body Material | AISI 316L Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 40 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What total dynamic head is delivered by this open-impeller industrial washing pump?
Fluid elevation in parts washing loops relies on the COM350/09, which generates a peak dynamic head of approximately 15.7 m.
What maximum delivery flow can this industrial washing pump discharge across its connection port?
Industrial washing circuits rely on the COM350-09, which discharges a peak delivery flow rate of approximately 400 L/Min across its Rp 1-1/2" (40 mm) suction and Rp 1-1/4" (32 mm) discharge ports.
Which metallurgy and seal materials protect this industrial washing pump from fluid corrosion and grit?
Fluid pathway protection against corrosion and erosion relies on alloy materials in the COM 350 09, featuring AISI 316L stainless steel casing and open impeller, with ceramic/carbon/FPM mechanical seal built to accommodate suspended solids up to 11 mm in diameter.
What electrical power draw and single-phase supply voltage run this industrial washing unit?
Powering the COM_350_09 requires a 0.9 kW motor running on a 220–240 V, 50 Hz, single-phase power supply, drawing approximately 5.46 A with IP55 dust and water spray protection, Class F insulation.
Where should this industrial washing pump be secured on a horizontal floor to prevent backflow?
Securing the COM350/09 on a flat horizontal foundation ensures vibration-free operation, featuring an integrated layout with proper clearance and drainage.
