SKU: COM500/15

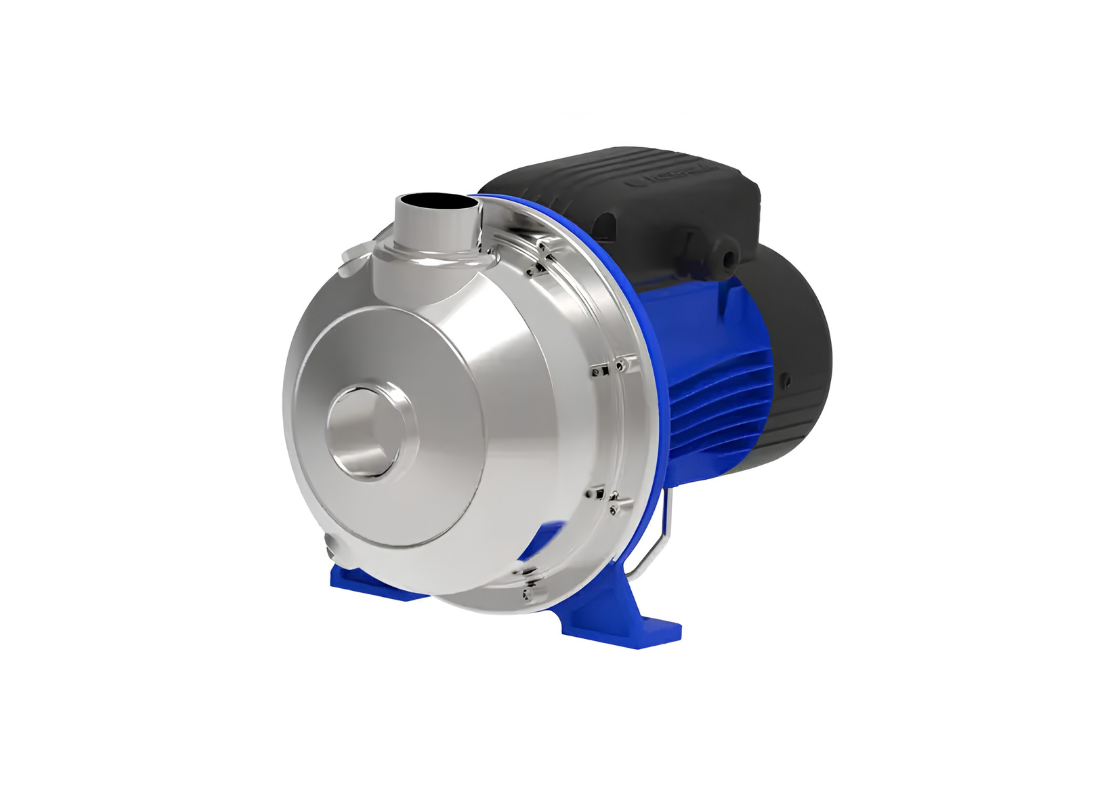

Lowara COM 500/15 Stainless Steel Single-Phase Centrifugal Pump for Industrial Washing with Open Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Engineered for demanding industrial and civil environments, this Lowara unit provides a specialized solution for circulating process water or managing fluids with suspended solids. It excels in applications where material durability is critical, such as cooling systems or wash-down processes, ensuring reliable liquid movement in heavy-duty settings. The pump is designed for facility managers and installers who require a non-clogging configuration capable of handling particles up to 20mm in diameter, making it an essential component for complex fluid transfer setups that demand sustained operational continuity.
Built for rigorous performance, the unit is constructed entirely from AISI 316L stainless steel, offering significant resistance to corrosion and chemical exposure. It achieves a maximum capacity of approximately Max Head 13.4 m and Max Flow 700 L/Min, driven by a 1.87 kW / 240v motor. The hydraulic design integrates an open impeller, specifically optimized to prevent blockages during the circulation of raw or contaminated water, ensuring consistent pressure and volumetric output across varied duty cycles throughout its service life.
Technically, the pump employs a close-coupled architecture which promotes a compact footprint while maintaining robust hydraulic alignment. The TEFC motor design features external ventilation to manage thermal load effectively during continuous operation, while the standard FKM elastomers provide a wide temperature tolerance range from -10°C to +110°C. This model includes an automatic reset overload protection mechanism, safeguarding the electrical system from thermal damage during transient over-current conditions often experienced in intensive fluid handling environments.
Installation is simplified through 50mm suction and 40mm discharge threaded connections, which are compatible with standard industrial plumbing configurations. The pump is rated for a maximum working pressure of 8 bar and incorporates a support foot to facilitate floor-mounted stability, reducing vibration during high-speed rotation. With a protection class of IP55, the unit is suited for locations where exposure to moisture or dust is a factor, providing an adaptable solution for both indoor and outdoor industrial water transfer requirements.
Features:
- AISI 316L stainless steel components for maximum structural resistance
- Suitable for continuous duty in demanding civil fluid management applications
- Asynchronous squirrel cage motor with class F insulation rating
- IP55 weather and ingress protection for reliable site deployment
- Handles suspended solid particles up to 20 mm in diameter
- Threaded ISO 7 connections for secure piping interface integration
- Advanced FKM mechanical seal design for chemical-rich fluid compatibility
SPECIFICATIONS
| Max Flow | 700 L/Min |
| Max Head | 13.4 m |
| Power | 1.87 kW / 240v |
| Rated Current | 8.48 Amps |
| Suitable For | Industrial Water Circulation |
| Body Material | AISI 316L Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 50 mm |
| Outlet Size | 40 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What single-phase electrical voltage and motor kilowatt power run this high-capacity open-impeller unit?
Energy supply requirements for the COM500/15 specify a 1.5 kW motor powered by 220–240 V, 50 Hz, single-phase pulling 9.12 A, incorporating IP55 dust and water spray protection, Class F insulation.
Where should this large-capacity open-impeller pump be installed on a rigid horizontal floor foundation?
Surface floor mounting on a horizontal rigid foundation base is recommended for the COM500-15, installed with an integrated layout and proper floor drainage.
What maximum dynamic elevation head does this high-capacity open-impeller pump attain?
Circulating liquids with suspended particulates, the COM 500 15 achieves a maximum dynamic head of approximately 16.0 m across its operating curve.
What maximum water flow rate does this large open-impeller pump discharge through its outlet port?
Open-impeller fluid transfer is powered by the COM_500_15, discharging a maximum water flow rate of approximately 700 L/Min via Rp 2" (50 mm) suction and Rp 1-1/2" (40 mm) discharge ports.
How does the stainless alloy open impeller construction resist corrosion and wear from large solids?
Suspended solids passage and corrosion defense rely on alloy metallurgy materials in the COM500/15, featuring AISI 316L stainless steel casing and open impeller, with ceramic/carbon/FPM mechanical seal capable of managing suspended solids up to 20 mm in diameter.
