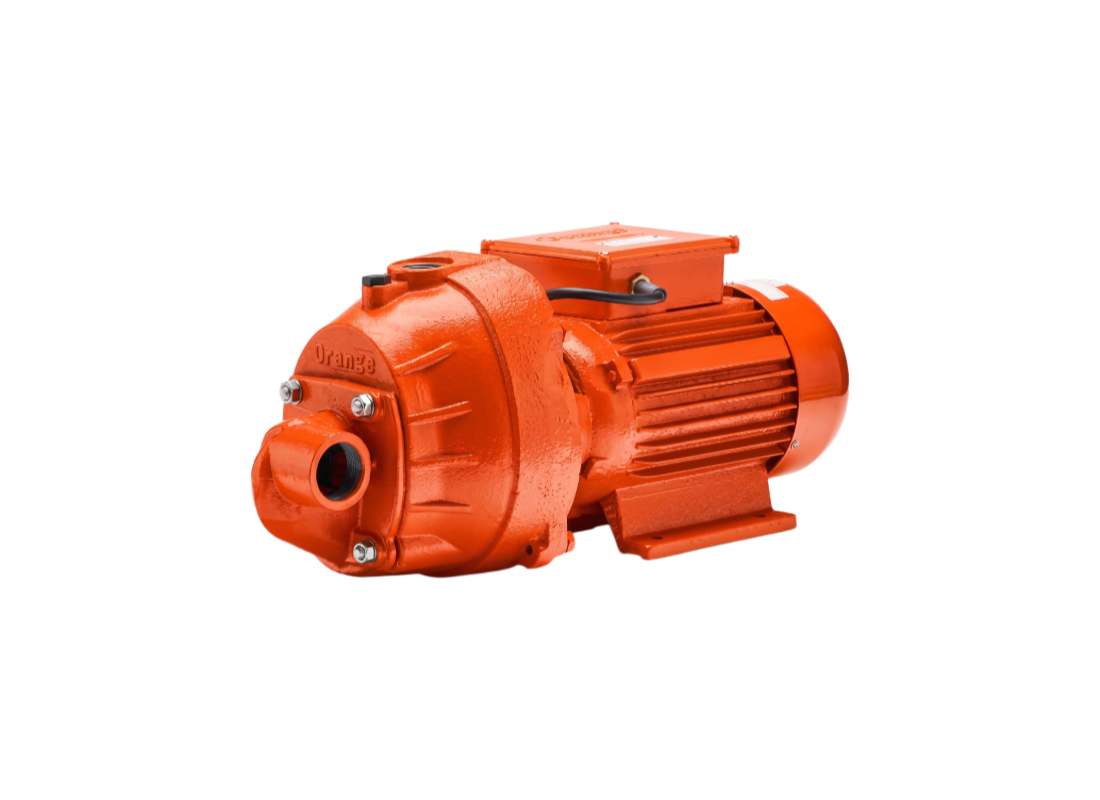

Orange Pumps CJ650-SW47 Cast Iron Jet Pump for Livestock & Stock Trough Supply with Single Impeller

Reliable water extraction from dams, rivers, and shallow underground wells is the primary application for this self-priming jet pump, supplied with the SW47 injector for balanced pressure and flow performance. It is engineered for rural environments where consistent supply to stock troughs or garden irrigation lines is essential. The unit is designed to handle clean water and is particularly effective in installations requiring a significant suction lift from surface water sources.

Operating on a 240V single-phase power supply, the motor delivers a power output of 1.1 kW and draws a rated current of 7.4 Amps. Hydraulic performance is characterized by a maximum flow rate of up to 122 L/Min and reaching a maximum head of up to 43 m. These specifications define its capability for high-volume transfer tasks across small to medium rural properties.

The SW47 injector works with the jet and venturi assembly to increase discharge pressure while effectively purging air from the casing. A large oval-shaped pump body holds ample water to assist rapid self-priming, while the uniquely shaped hydraulic components are designed to deliver maximum water volume with a low motor load.

Construction features a solid cast iron body and a stainless steel motor shaft for superior structural durability. A unique double race bearing system handles axial and radial forces, ensuring stability during high-turbulence operation at open flow. The unit includes TEFC motor protection and is rated for liquid temperatures reaching a maximum of 65°C, backed by a 2-year Orange Pumps warranty.

FEATURES

• Solid cast iron pump body provides a heavy-duty housing capable of withstanding the rigors of demanding agricultural and farm service.
• Integrated jet and venturi design creates a powerful suction effect to successfully draw water from surface sources or shallow wells.
• Unique double race bearing arrangement distributes mechanical loads more effectively to ensure longevity in high ambient temperature environments.
• Large oval-shaped casing stores sufficient priming water to improve suction establishment and reduce priming time after startup.
• Heavy-duty 1.1 kW induction motor is designed to operate at full load across a wide voltage range for consistent rural performance.
• Stainless steel motor shaft offers excellent corrosion resistance and mechanical strength to support the internal impeller.
• Inbuilt thermal motor protection prevents damage from overheating by automatically disconnecting power during abnormal operating conditions.
• Total Enclosed Fan Cooled (TEFC) motor housing protects internal electrical components against ingress from water, dust, and local vermin.
