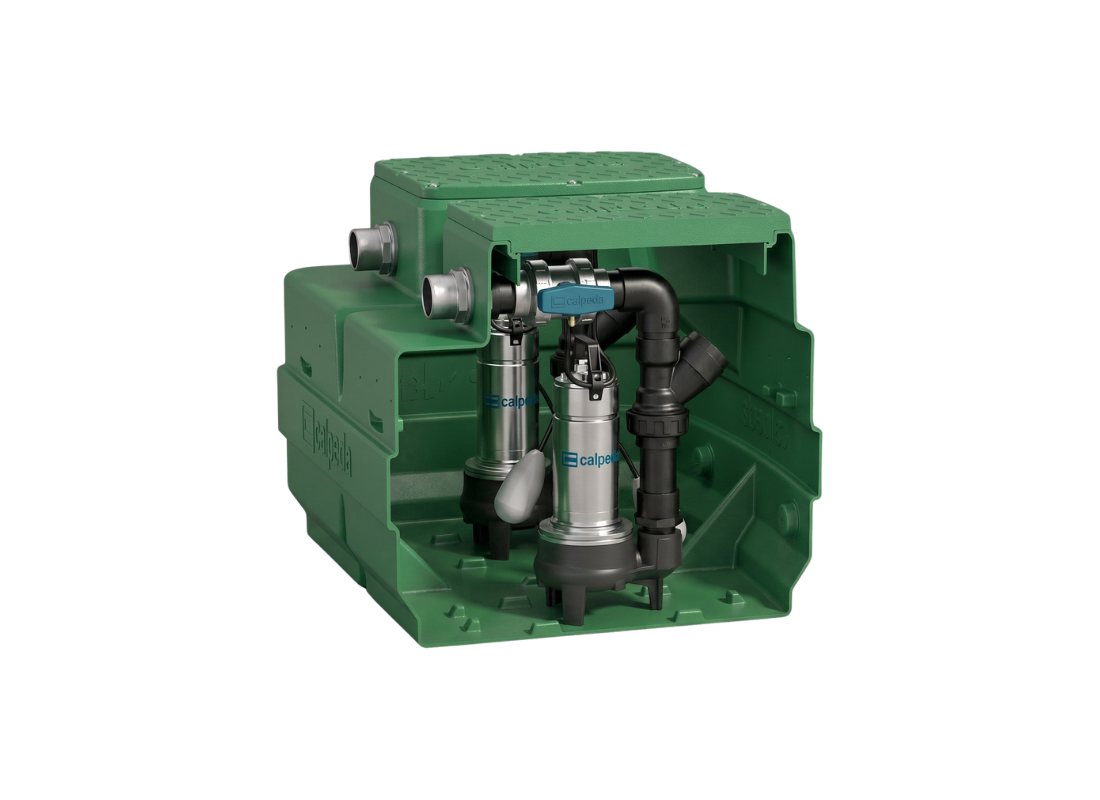

The GEO 500-2GQSM 50-15 is a high-capacity dual-pump sewage collection and lifting station from the GEO 500 series, featuring two GQS series submersible pumps with free-flow vortex impellers. This system is specifically engineered for demanding municipal, domestic, and industrial wastewater applications requiring substantial flow capacity and reliable solids handling. The automatic station incorporates a 500 liter tank with comprehensive control and protection systems.
The 500 liter medium-density polyethylene tank provides corrosion resistance and is manufactured with minimum overall dimensions for installation in constrained spaces. Two GQS submersible pumps with vertical delivery ports and free-flow vortex impeller designs are installed within the tank for efficient solids handling. The station includes a support kit with two float switches for automatic level sensing and pump sequencing. Two 63 mm PVC discharge pipe kits with ball valves and non-return ball valves are supplied. The tank design supports both surface and underground installation with optional extensions for deeper applications.
Each pump is powered by a 1.5 kW single-phase motor operating on 230 V ± 10% supply with a rated current of 13 Amps. The pump delivers a maximum head of 14.4 meters and a maximum flow of 36 m³/h (600 L/Min) per pump. Combined parallel operation provides up to 72 m³/h (1200 L/Min) total flow. The discharge connection measures 63 mm in diameter. The 2-pole induction motor runs at 2900 rpm with 50 Hz frequency and incorporates thermal protection with built-in capacitor. Cable length is 10 meters per pump.
Thermal protection is integrated within each motor winding with incorporated capacitor for starting. The vortex impeller design enables free-flow passage of solids. The system operates with liquid temperatures up to 35°C and supports various installation depths. Pump access is provided through a screw-fixed cover for maintenance access.
Features- Dual GQS pump configuration with free-flow vortex impeller design
- 500 liter MDPE corrosion-resistant tank with compact dimensions
- Vertical delivery port with 63 mm discharge pipe connections
- Twin float switch support kit for automatic pump cycling
- Built-in capacitor and thermal protection in each motor
- Ball valves and non-return ball valves on discharge pipe kits
- Underground installation compatible with extension options
