SKU: MC20/50*

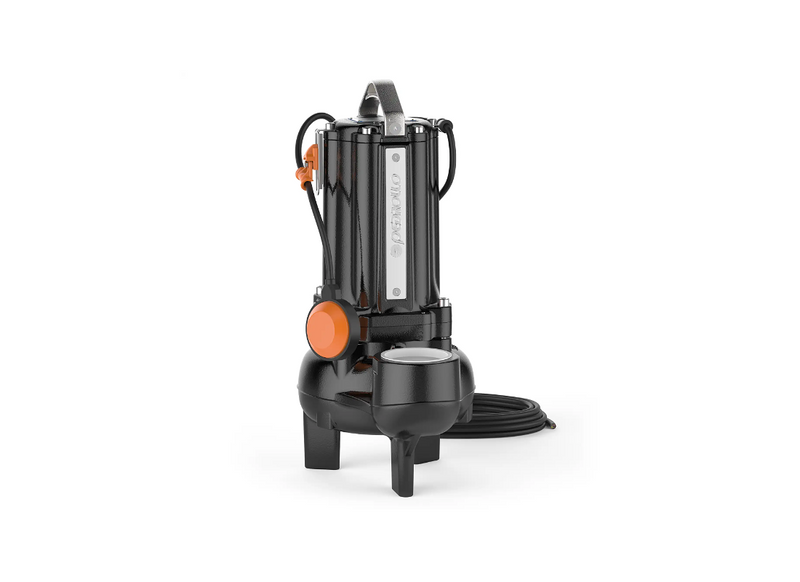

Pedrollo MC20/50 Cast Iron Silicon Carbide Seal Submersible Drainage Pump for Sewage with Two-Channel Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Defined by its heavy-duty structural framework, the Pedrollo MC20/50 MC Submersible Channel Pump, FBSP provides robust fluid management capabilities for commercial installations. The exterior is composed of thick cast iron, resisting the underground pressures and chemical degradation associated with raw sewage and wastewater environments.
Designed to address the severe operational demands of municipal transfer loops, the pump processes sludge-mixed water and aggressive effluent. By facilitating passage for suspended solids and short fibers, this mechanism limits mechanical stalling when handling raw liquids. The dense metal casting weighs 41.9 kg, supporting stationary anchoring in subterranean pits.
Fluid velocity is controlled by a TWO-CHANNEL impeller forged from 304 stainless steel. Debris is forcibly ejected through a 65 mm outlet, helping to minimize back pressure. The drive shaft is defended by a double mechanical seal array separated by a dedicated oil chamber, allowing the system to achieve a 900 L/Min flow rate and a vertical head limit of 16 m.
Addressing long-term operating efficiencies, the three-phase electrical footprint operates with a 1.5 kW motor drawing 5 Amps across a 415v supply. Equipped with a standard 10-metre power cable for straightforward integration, this continuously rated mechanism supports intensive extraction while immersed in liquid mediums scaling up to a maximum temperature of 40 degrees Celsius.
Features
- Constructed from heavily reinforced cast iron treated with a highly specialized cataphoresis coating
- Employs a highly efficient TWO-CHANNEL impeller cast completely from 304 grade stainless steel
- Protects rotational tolerances through a double mechanical seal setup isolated strictly by an oil chamber
- Features a large 65 mm discharge outlet optimized directly for high-volume commercial fluid transfer
- Rated for continuous subterranean immersion in challenging liquid temperatures scaling up to 40 degrees
- Total dry unit mass documented at exactly 41.9 kg to strongly limit operational phase vibrations
SPECIFICATIONS
| Max Flow | 900 L/Min |
| Max Head | 16 m |
| Power | 1.5 kW / 415v |
| Rated Current | 5 Amps |
| Suitable For | Continuous Sludge Processing |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Documents
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What type of wastewater is this pump designed to transfer?
The pump is intended for raw sewage, sludge-mixed water and aggressive effluent, with the MC20/50 handling suspended solids and short fibres.
What is the maximum flow rate provided in the description?
The stated maximum flow is 900 L/min, making the MC20 50 suitable for high-volume wastewater transfer in commercial and municipal installations.
Which impeller and outlet arrangement are used?
A two-channel 304 stainless steel impeller discharges through a 65 mm outlet, supporting debris passage and wastewater movement with the MC20/50.
What electrical supply and motor rating are specified?
The three-phase motor is rated at 1.5 kW and draws 5 A from a 415 V supply, powering the MC20_50 for extraction duties.
How does the pump protect its shaft against water ingress?
A double mechanical seal separated by an oil chamber protects the drive shaft from water ingress in the MC20/50 during submerged operation.
