SKU: MCM20/50*

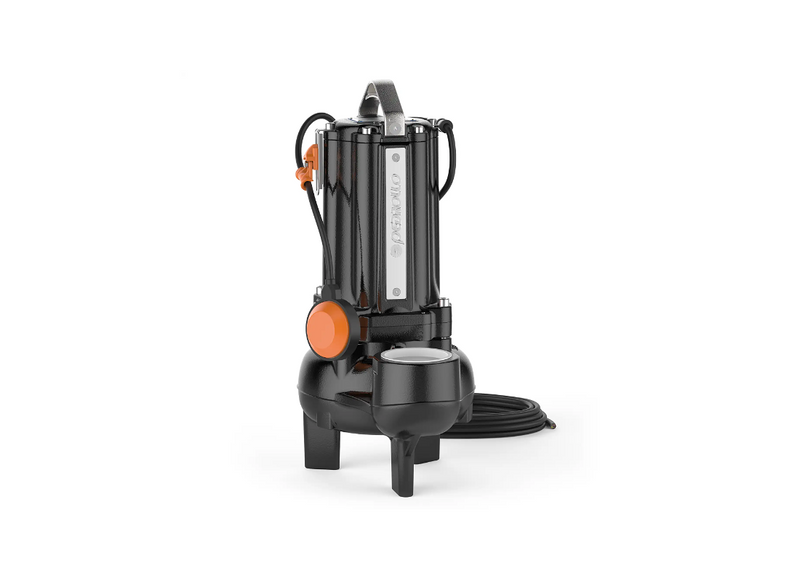

Pedrollo MCM20/50 Cast Iron Class F Insulation Submersible Drainage Pump for Sewage with Two-Channel Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Defined by its fortified material structure, the Pedrollo MCM20/50 MCm Submersible Channel Pump, FBSP delivers functional durability. The housing is cast from thick iron, creating a rigid barrier against underground pressures. Utilizing a cataphoresis treatment, the unit resists chemical deterioration associated with exposure to untreated sewage and sludge mixtures.
Supporting static stability during extraction, this densely packed framework weighs 43.0 kg. This profile limits shifting inside subterranean pits, protecting the lifespan of internal tolerances. Engineers rely on this design to transfer fluids packed with short fibers and suspended solids effectively.
Inside the casting, the hydraulic load is processed by a TWO-CHANNEL impeller constructed from 304 stainless steel. This configuration expels debris through a 65 mm pipeline. Encapsulated by a double mechanical seal array divided by an oil chamber, the system accelerates liquids to produce a 900 L/Min flow rate and a 16 m head limit.
Driving the transfer is a 1.5 kW motor drawing 14 Amps over a single-phase supply. Designed for automated duty, the system includes an external float switch that regulates cycling. Accompanied by a 10-metre power cable, this configuration manages abrasive liquids reaching up to a limit of 40 degrees Celsius.
Features
- Manufactured from thick cast iron featuring a highly protective cataphoresis surface treatment
- Equipped with a highly resilient TWO-CHANNEL impeller constructed entirely from 304 stainless steel
- Utilizes a highly responsive external float switch to fully automate demanding operational cycles
- Integrates a central oil chamber to perfectly separate the internal double mechanical seal limits
- Certified for fully submerged continuous deployment in aggressive fluids reaching up to 40 degrees
- Dry physical mass sits at exactly 43.0 kg to limit unwanted vibrations during fluid extraction
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What construction helps this pump withstand sewage environments?
A thick cast iron housing with cataphoresis treatment resists chemical deterioration, helping the MCM20/50 withstand untreated sewage and sludge exposure.
What is the stated maximum flow rate?
The description gives a maximum flow of 900 L/min, providing the MCM20 50 with high-volume transfer capacity for wastewater extraction applications.
What electrical supply and motor details are provided?
The description identifies a single-phase model only if explicitly stated; for the MCM20/50, it lists a 1.5 kW motor on 415 V three-phase supply.
What type of impeller and discharge outlet are used?
A 1.5 kW single-phase motor draws 14 A, and the MCM/20/50 includes an external float switch and 10-metre cable for automated operation.
Which operating conditions are described for this wastewater pump?
The pump is intended for untreated sewage and sludge mixtures in submerged extraction duties, with the MCM20/50 designed for demanding wastewater environments.
