SKU: VXC15/35-N

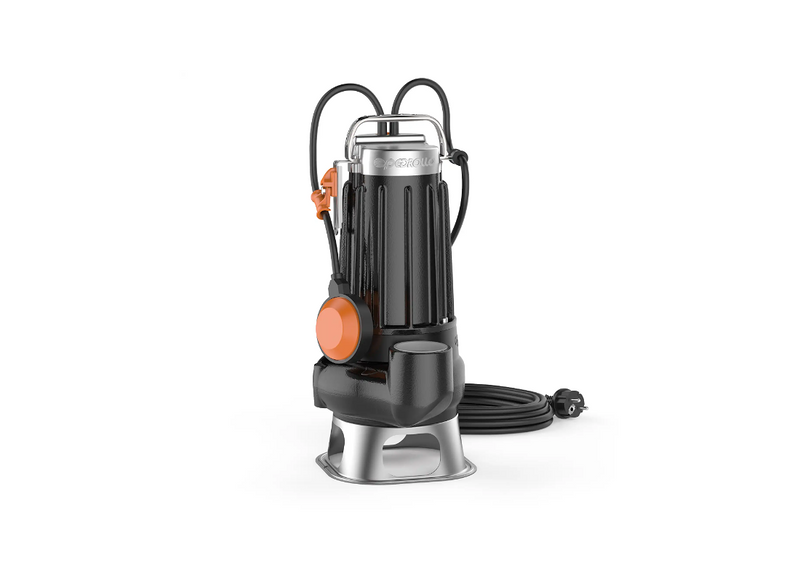

Pedrollo VXC15/35-N Cast Iron Oil Chamber Submersible Drainage Pump for Putrid Sludge with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Addressing long-term operating cost scaling, the Pedrollo VXC15/35-N VXC Submersible Vortex pump, FBSP provides functional infrastructure value. This three-phase unit is tuned to balance consumption while delivering consistent force. Designed to manage tasks involving dense sewage, it helps prevent mechanical stalling in heavy wastewater processing.
Environmental protection is prioritized through a thick cast iron body reinforced with cataphoresis treatment. By surrounding internal mechanisms with this heavy-duty barrier, degradation from sludge mixtures is mitigated. Weighing 18.3 kg, the dense casting dissipates heat and helps reduce vibrations when placed in holding pits.
Internal stability is supported by a VORTEX impeller operating in tandem with a double mechanical seal setup. Separated by an isolated oil chamber, this architecture protects moisture from crossing into the motor cavity. These components accelerate liquids to achieve a 500 L/Min flow and a 13.5 m head limit.
The electrical footprint relies on a dynamic 1.1 kW motor pulling 3 Amps across a 415v connection. Designed for continuous immersion with a 10-metre power cable, this automated-ready unit connects to external panels. Interfacing through a 40 mm pipeline, it safely manages fluids up to 40 degrees Celsius.
Features
- Manufactured from dense cast iron protected by an advanced cataphoresis protective coating
- Utilizes a high-clearance VORTEX impeller geometry configured for seamless debris passage
- Employs a fully isolated double mechanical seal array featuring a central oil bath for shaft safety
- Optimized 40 mm fluid outlet provides direct compatibility with commercial plumbing pipelines
- Designed to process aggressive effluent safely at a maximum continuous limit of 40 degrees Celsius
- Dry unit weight rests at exactly 18.3 kg to provide functional and reliable installation stability
SPECIFICATIONS
| Max Flow | 500 L/Min |
| Max Head | 13.5 m |
| Power | 1.1 kW / 415v |
| Rated Current | 3 Amps |
| Suitable For | Commercial Sewage Networks |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Documents
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What discharge pipe size does this pump use?
The pump connects through a 40 mm outlet designed for commercial plumbing pipelines; VXC15/35-N is intended for dirty water and sewage handling.
How does the sealing arrangement help protect the motor cavity?
The 1.1 kW motor draws 3 amps from a 415 V connection; VXC 15 35-N includes a 10-metre cable for continuous immersion.
What are the stated flow and head limits?
A double mechanical seal and oil chamber help protect the shaft, while cataphoresis-treated cast iron forms the body; VXC15-35-N weighs 18.3 kg.
Which motor rating and electrical supply are required?
A 1.1 kW motor draws 3 amps from a 415 V connection; VXC 15 35-N includes a 10-metre cable for immersion.
What materials are used for durability in sludge environments?
A thick cast iron body with cataphoresis treatment protects the pump, while its VORTEX impeller supports debris passage; VXC15-35-N weighs 18.3 kg.
