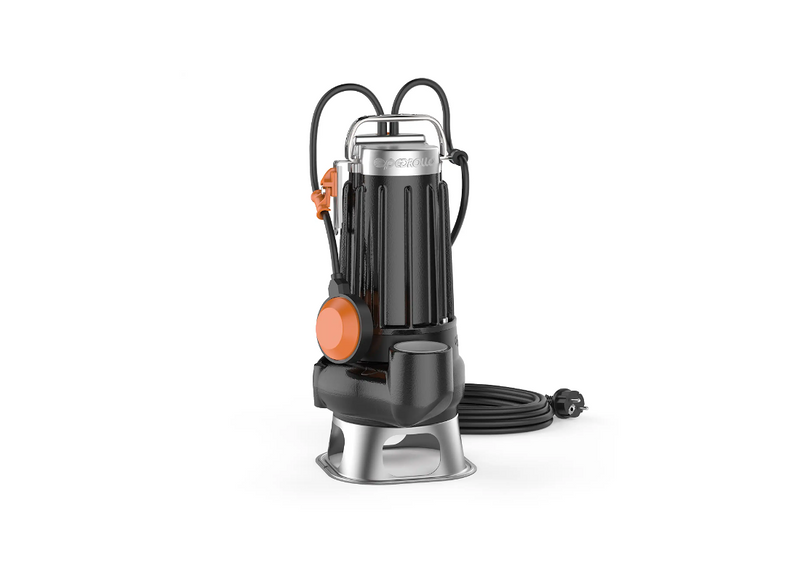

Pedrollo VXC15/45 Cast Iron Cataphoresis Submersible Drainage Pump for Dense Sludge with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Engineered to withstand heavy load challenges, the Pedrollo VXC15/45 VXC Submersible Vortex pump, FBSP is a dedicated liquid management platform. Built to address unpredictable demands of commercial sewage processing, it operates effectively at handling dirty water with suspended solids to route complex wastewater.
To operate in putrid sludge environments, the primary body is cast from ultra-thick iron and treated with a cataphoresis coating. This provides resilience against environmental corrosion. Recording a weight of 19.1 kg, the dense structural casting helps the mechanism remain anchored during high-volume operations.
Inside the housing, a VORTEX impeller directs heavy liquids outward while managing debris. The integrity of the drive shaft is defended by a double mechanical seal separated by an oil chamber. These hydraulic components accelerate dense fluids, generating a flow of 650 L/Min and maintaining a head pressure of 11 m.
Drawing from a three-phase framework, the efficient 1.1 kW motor consumes a steady 3 Amps of current at 415v. Configured for integration into commercial networks, it features a 10-metre power cable and a 50 mm outlet port for pipeline connections, allowing continuous processing of mixtures up to 40 degrees Celsius.
Features
- Manufactured from cataphoresis-coated cast iron to strongly resist chemical pit abrasion
- Utilizes a high-efficiency VORTEX style impeller optimized entirely for raw sewage handling
- Incorporates an intervening oil chamber to fully isolate the dual mechanical drive seals
- Features a standard 50 mm discharge port sized directly for commercial structural plumbing
- Safely operates completely submerged in liquid medium temperatures reaching up to 40 degrees
- Dry physical weight scales to 19.1 kg for excellent stability and anchoring within deep trenches
SPECIFICATIONS
| Max Flow | 650 L/Min |
| Max Head | 11 m |
| Power | 1.1 kW / 415v |
| Rated Current | 3 Amps |
| Suitable For | Municipal Wastewater Pumping |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Documents
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What kinds of liquids is this pump intended to handle?
It is designed for dirty water, suspended solids and raw sewage handling in commercial wastewater processing; VXC15/45* uses a VORTEX impeller.
What is the pump's maximum stated liquid temperature?
The pump can handle liquid temperatures up to 40°C and includes a 10-metre power cable; VXC15_45* is built for submerged operation.
What outlet size is used for connecting discharge pipework?
A 50 mm outlet port provides the discharge connection for commercial plumbing; VXC15/45 supports transfer of dense fluids and sludge mixtures.
How are the shaft and seals protected inside the pump?
A double mechanical seal separated by an oil chamber protects the drive shaft; VXC 15 45* combines this arrangement with a cast iron body.
What electrical requirements are listed for operation?
The three-phase motor is rated at 1.1 kW and draws 3 amps at 415 V; VXC15-45* is configured for continuous wastewater processing.
