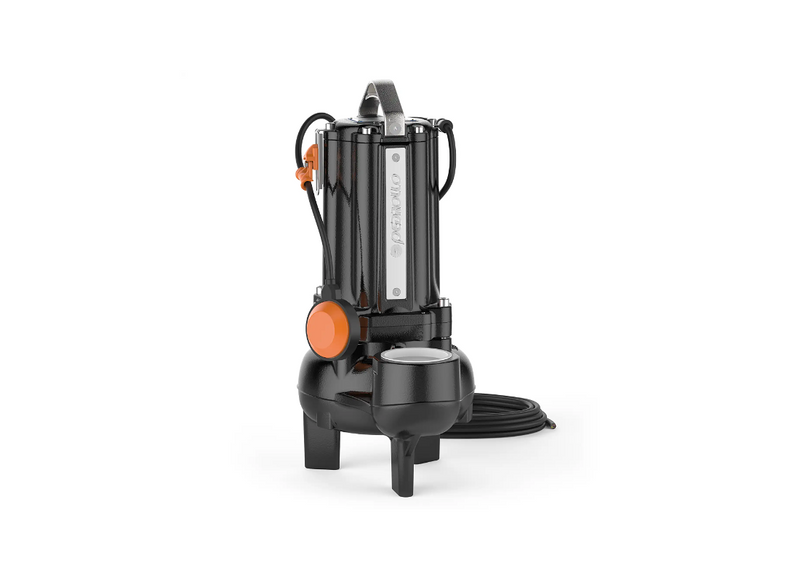

Pedrollo VXC20/50 Cast Iron IPX8 Protection Submersible Drainage Pump for Sewage with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Defined by its structural material choice, the Pedrollo VXC20/50 VXC Submersible Vortex pump, FBSP features a thick cast iron body intended for commercial environments. Treated with a cataphoresis coating, the casing acts as a shield against corrosion and abrasion common to dirty water and sewage processing applications.
Providing physical stability, the total unit weight registers at 42.0 kg. This material density helps the pump securely anchor itself at the bottom of subterranean municipal trenches. By reducing physical vibration during high-flow cycles, the dense metal housing allows the system to continuously process thick wastewater.
The thermodynamic fluid velocity is managed by a specialized cast iron VORTEX impeller. This wide-clearance architecture works alongside a double mechanical seal layout partitioned by an oil chamber. Safeguarding the rotational axis, this matrix generates a maximum flow extraction of 700 L/Min while maintaining a vertical lift pressure of 12.5 m.
The three-phase architecture provides power through a resilient 1.5 kW motor, pulling 3.7 Amps across a 415v supply. Engineered with a 65 mm outlet connection, this system interfaces with commercial plumbing loops. Equipped with a 10-metre cable, it is configured to handle fluid temperatures up to 40 degrees Celsius.
Features
- Manufactured entirely from thick cast iron featuring enhanced cataphoresis abrasion protection
- Designed specifically with a dedicated VORTEX impeller to help prevent internal fiber blockages
- Features a highly effective double mechanical seal partitioned directly by an internal oil bath
- Constructed with a large 65 mm fluid outlet for necessary high-volume pipeline compatibility
- Operates safely and continuously within challenging environmental temperatures up to 40 degrees
- Records a functional unit weight of 42.0 kg to limit shifting in turbulent underground trenches
SPECIFICATIONS
| Max Flow | 700 L/Min |
| Max Head | 12.5 m |
| Power | 1.5 kW / 415v |
| Rated Current | 3.7 Amps |
| Suitable For | Industrial Effluent Handling |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Documents
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What helps the pump resist corrosion and abrasion in sewage environments?
A thick cast iron body with cataphoresis coating protects against corrosion and abrasion; VXC20/50* uses this construction for dirty-water and sewage duties.
What flow and head figures are provided for this model?
The stated maximum flow is 700 L/min and maximum head is 12.5 m; VXC20_50* provides these separate operating limits.
Which electrical supply and motor rating does it require?
A 1.5 kW three-phase motor draws 3.7 amps from a 415 V supply; VXC20/50 uses a 10-metre power cable.
What type of impeller helps move debris through the pump?
A cast iron VORTEX impeller is designed to help prevent internal fibre blockages; VXC 20 50* also uses a double mechanical seal and oil bath.
What discharge connection is available for pipework?
A 65 mm outlet connects the pump to compatible commercial plumbing; VXC20-50* is also designed for liquid temperatures up to 40°C.
