SKU: VXC30/70-F

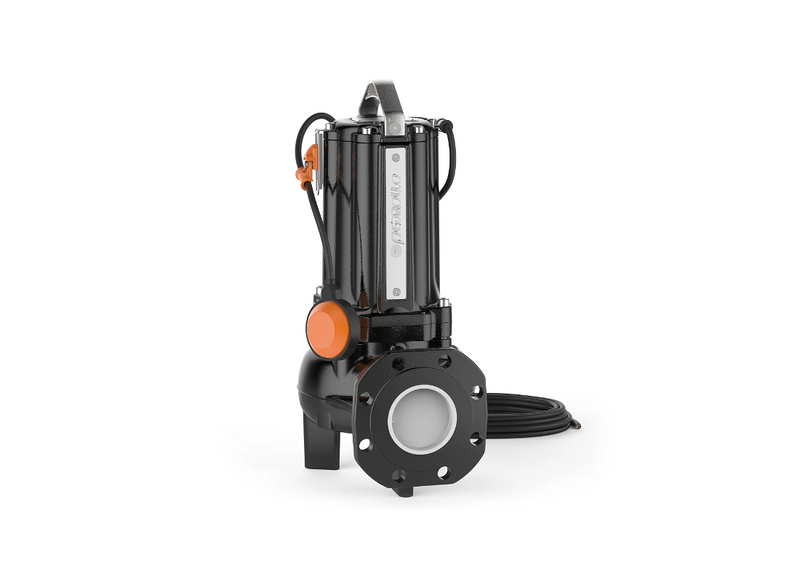

Pedrollo VXC30/70-F Cast Iron Flanged Port Submersible Drainage Pump for Wastewater with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Constructed to address heavy demands, the Pedrollo VXC30/70-F VXC Submersible Vortex Pump, Guide Rail is forged from heavy-gauge cast iron. This casing is treated with cataphoresis, isolating mechanics from corrosive attacks. Weighing 41.0 kg, the casting anchors the unit securely, limiting vibration during active extraction.
An optimized cast iron VORTEX impeller pushes suspended solids outward to maintain clear fluid pathways. This hydraulic assembly is safeguarded by a double mechanical seal design partitioned by an oil chamber. These applied technologies generate a maximum flow rate of 1200 L/min while sustaining fluid transport up to a 9.7 m manometric head limit.
Driving this output is a 2.2 kW three-phase motor pulling 5.5 Amps across a 415v supply. Built to endure continuous immersion, the unit is furnished with a 10-metre power cable. Tolerating abrasive liquid mediums up to 40 degrees Celsius, this configuration supports municipal sewage processing networks while helping to regulate power consumption.
Developed for facilities tackling dirty water, this system routes unrefined sewage and sludge mixtures safely. The design is suitable for guide rail installations using an automatic coupling arrangement that allows service access without entering the wet well. Outfitted with an 80 mm port, it effectively manages unpredictable commercial fluid transfer.
Features
- Suitable for guide rail installations employing a standard automatic coupling base
- Manufactured with a heavy-gauge cast iron shell protected by a cataphoresis treatment
- Utilizes a cast iron VORTEX impeller to process suspended solids up to 70 mm
- Protects internal mechanical assets using a double mechanical seal and oil chamber
- Features an internal AISI 431 stainless steel motor shaft for continuous operation
- Equipped with an 80 mm fluid port in compliance with structural plumbing standards
- Dry physical weight is verified at 41.0 kg to securely anchor the mechanism
SPECIFICATIONS
| Max Flow | 1200 L/min |
| Max Head | 9.7 m |
| Power | 2.2 kW / 415v |
| Rated Current | 5 Amps |
| Suitable For | High Capacity Fluid Transfer |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Documents
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What wastewater applications is this pump designed to handle?
For commercial sewage networks, this pump handles dirty water, unrefined sewage and sludge mixtures; VXC30/70-F is designed for demanding extraction duties.
Which construction materials help protect the pump in harsh conditions?
A heavy-gauge cast iron casing receives cataphoresis treatment, while the cast iron VORTEX impeller moves suspended solids; VXC30_70-F uses this robust construction.
What electrical supply and motor output does the unit require?
The three-phase motor delivers 2.2 kW and draws 5.5 amps from a 415 V supply; VXC30/70/F includes a 10-metre power cable.
How large are the discharge connection and passable solids?
An 80 mm port supports discharge, while the VORTEX impeller handles solids up to 70 mm; VXC 30 70-F suits debris-laden wastewater.
Can the pump be installed on a guide rail for servicing?
Yes, guide-rail installation with an automatic coupling arrangement allows service access without entering the wet well; VXC30-70-F supports this setup.
