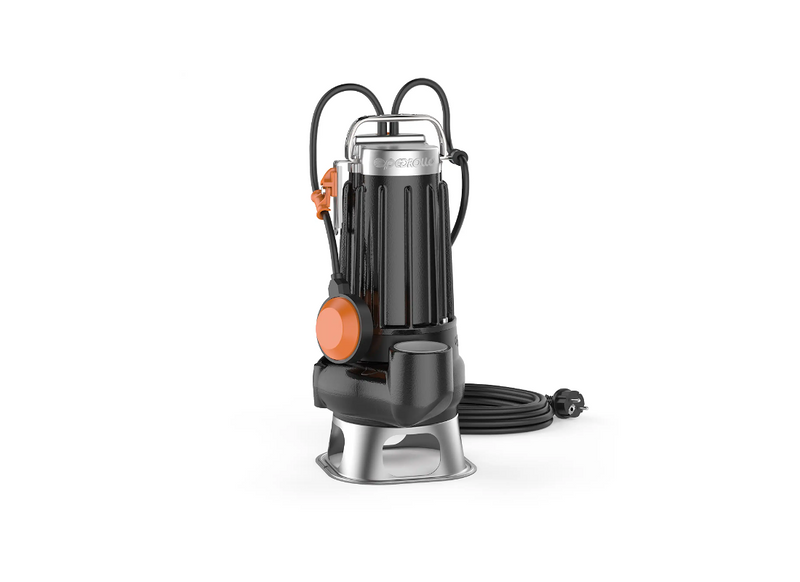

Pedrollo VXCM15/45 Cast Iron Double Seal Submersible Drainage Pump for Raw Sewage with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Built around a thick cast iron housing enhanced with cataphoresis coating, the Pedrollo VXCM15/45 VXCm Submersible Vortex pump, FBSP represents high structural durability. This architectural casting withstands the chemical and physical abrasion found in environments handling dirty water and untreated sewage, shielding internal components.
Weighing 20.2 kg, this heavily reinforced unit is intended to support prolonged wastewater transfer cycles without severe vibration fatigue. The dense material construction allows the system to process unpredictable sludge mixtures and suspended solids reliably, supporting subterranean pits requiring continuous capability.
Deep within the hydraulic chamber, a high-clearance VORTEX impeller directs debris through the 50 mm outlet pipeline. This geometry is secured by a double mechanical seal system separated by a protective oil chamber. The unit maintains stability while delivering a flow rate of 650 L/Min and a head pressure of 11 m.
Designed to automate demanding sanitation workloads, the efficient single-phase electrical infrastructure utilizes a 1.1 kW motor pulling 7.4 Amps. Equipped with an integrated external float switch for liquid level monitoring, the system protects itself against dry running while accommodating fluids up to 40 degrees Celsius.
Features
- Manufactured with a thick cast iron body featuring cataphoresis treatment for structural longevity
- Integrates an external float switch system for highly automated operational liquid level control
- Configured with a 50 mm outlet to match required high-volume commercial pipeline sizes
- Engineered to easily handle dense fluids up to an absolute maximum of 40 degrees Celsius
- Equipped with an advanced double mechanical seal isolated by an oil chamber for drive protection
- Total dry unit mass sits at 20.2 kg due to the heavy structural metal housing components
SPECIFICATIONS
| Max Flow | 650 L/Min |
| Max Head | 11 m |
| Power | 1.1 kW / 240v |
| Rated Current | 7.4 Amps |
| Suitable For | Wastewater Transfer Applications |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Documents
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which applications are appropriate for this wastewater pump?
The pump handles dirty water, untreated sewage and sludge mixtures, with a reinforced casing for abrasive environments; VXCM15/45* weighs 20.2 kg.
How does liquid-level control work on this model?
An external float switch monitors liquid level and supports automated operation to help protect against dry running; VXCM15_45* uses a single-phase motor.
What discharge size is provided for installation?
The 50 mm outlet connects to compatible commercial pipeline sizes; VXCM15/45* uses a high-clearance VORTEX impeller to direct debris through the discharge.
What are the maximum flow and head values?
The stated flow rate is 650 L/min and head pressure is 11 m; VXCM 15 45* lists these as separate operating limits.
Which internal protection features support wastewater operation?
A double mechanical seal and oil chamber shield drive components, while cataphoresis-treated cast iron forms the body; VXCM15-45* handles liquids up to 40°C.
