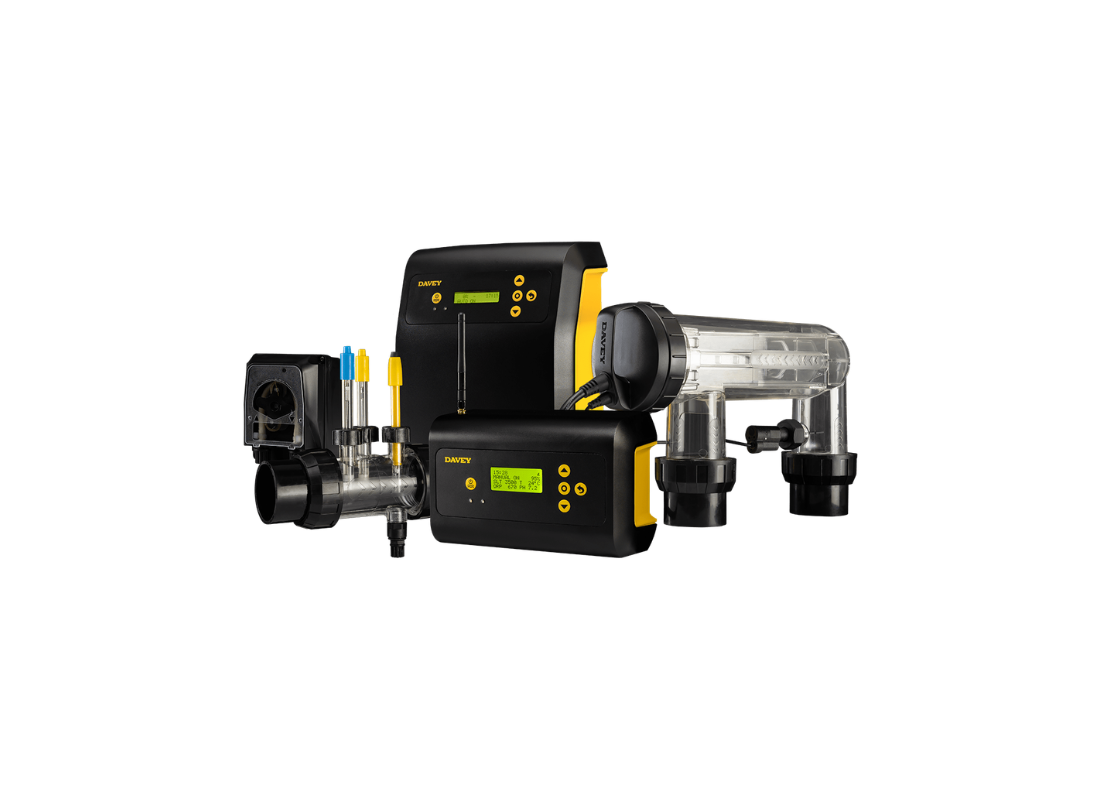

Davey Lifeguard DCLG-25C Digital Salt Water Chlorinator for Pool Chemistry with ORP Control

Medium residential pool systems requiring automated chlorination and integrated chemistry management can utilize the Lifeguard DCLG-25C for sanitation control and intelligent pool equipment operation. The system combines salt chlorination, chemical monitoring, and connected equipment management within a single compact controller platform for simplified pool maintenance.

Chlorine gas production reaches 25 g/hr with calcium hypochlorite equivalent output extending to 38 g/hr during operation. The unit operates from a single-phase 240V supply with maximum power consumption of 0.24 kW and supports operating salt levels between 3000 and 6000 ppm. Pool capacity recommendations extend to 100,000 litres in cool climates, 80,000 litres in temperate climates, and 60,000 litres in hot or tropical regions.

Automated pool management functions include integrated pH sensing, acid dosing control, ORP monitoring, and real-time salt and water temperature measurement. The reverse polarity electrolytic cell assists in minimising scale accumulation during chlorination cycles, while integrated WiFi connectivity enables remote system monitoring and adjustment through compatible smart device applications.

The controller enclosure is manufactured using UV stabilised materials for outdoor equipment installations and incorporates an integrated flow switch for operational protection during low-flow conditions. Additional system functionality includes variable speed pump control, heat pump integration, digital LCD operation, and compatibility with both 40 mm and 50 mm plumbing configurations. Warranty coverage includes 3 years on the controller box and cell assembly.

• Combined chlorination and chemistry control platform for residential pools
• Reverse polarity electrolytic cell reducing calcium scale formation
• Integrated pH probe and automatic acid dosing functionality
• ORP monitoring with salt and temperature measurement capability
• WiFi-enabled app interface for remote monitoring and control
• Digital LCD display with integrated equipment management functions
• Integrated flow switch supporting operational safety protection
• UV stabilised enclosure construction for outdoor durability
